Increased Dissolution of Lignocellulosic Biomass in Ionic Liquid 1-Butyl-3-Methylimidazolium Chloride at High Temperature

Di Chen; Chuan Fu Liu; Run Cang Sun

doi:10.4028/www.scientific.net/AMR.535-537.2375

Paper Titles

Study on Biocompatibility of Post-Irradiated Silk Fibroin In Vitro
p.2357

Effect of Gamma Irradiation on the Biocompatibility and Biodegradation of Silk Fibroin In Vivo
p.2361

Cellulose/Collagen Beads Prepared Using Ionic Liquid for Cu(II) Adsorption from Aqueous Solutions
p.2365

The Surface Micro-Morphology Transition of Pearls Induced by Cerium
p.2370

Increased Dissolution of Lignocellulosic Biomass in Ionic Liquid 1-Butyl-3-Methylimidazolium Chloride at High Temperature
p.2375

Nanospheres Conjugated with Hab18 as Targeting Carriers for Antitumor Drug
p.2381

DBD Plasma Induced Mutation in Phosphate-Solubilizing Bacteria Acinetobacter CalcoaceticusYC-5a
p.2385

Effect of PEO on the Hydrophilicity of PLLA Ultrafine Fibers
p.2390

Build and Apply of Granular Sludge Enriched by Phosphorus Accumulating Organisms
p.2394

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 535-537Increased Dissolution of Lignocellulosic Biomass...

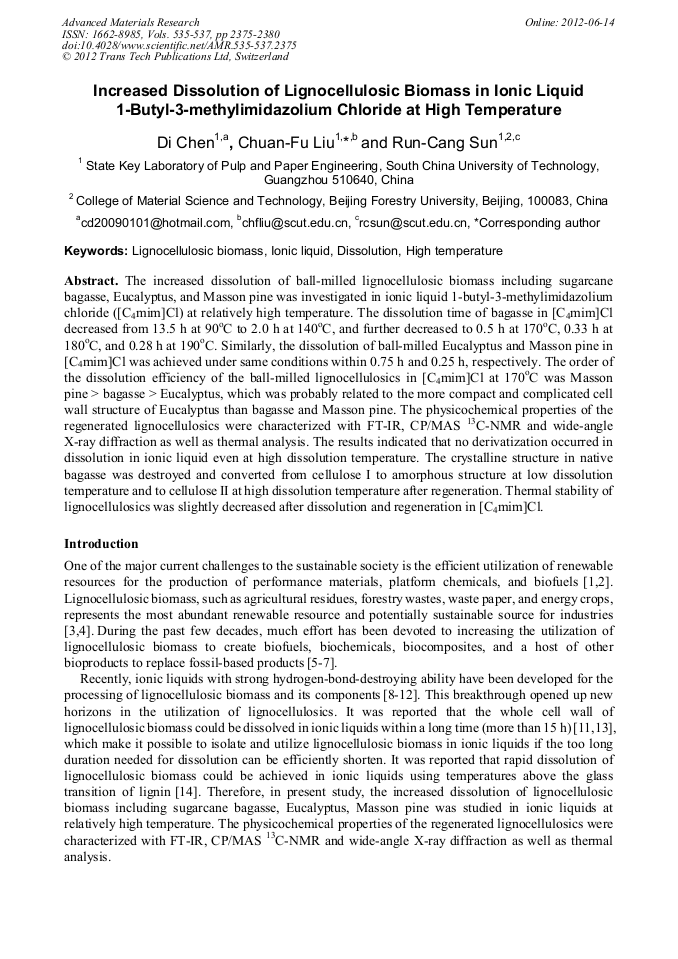

Increased Dissolution of Lignocellulosic Biomass in Ionic Liquid 1-Butyl-3-Methylimidazolium Chloride at High Temperature

Abstract:

The increased dissolution of ball-milled lignocellulosic biomass including sugarcane bagasse, Eucalyptus, and Masson pine was investigated in ionic liquid 1-butyl-3-methylimidazolium chloride ([C4mim]Cl) at relatively high temperature. The dissolution time of bagasse in [C4mim]Cl decreased from 13.5 h at 90oC to 2.0 h at 140oC, and further decreased to 0.5 h at 170oC, 0.33 h at 180oC, and 0.28 h at 190oC. Similarly, the dissolution of ball-milled Eucalyptus and Masson pine in [C4mim]Cl was achieved under same conditions within 0.75 h and 0.25 h, respectively. The order of the dissolution efficiency of the ball-milled lignocellulosics in [C4mim]Cl at 170oC was Masson pine > bagasse > Eucalyptus, which was probably related to the more compact and complicated cell wall structure of Eucalyptus than bagasse and Masson pine. The physicochemical properties of the regenerated lignocellulosics were characterized with FT-IR, CP/MAS 13C-NMR and wide-angle X-ray diffraction as well as thermal analysis. The results indicated that no derivatization occurred in dissolution in ionic liquid even at high dissolution temperature. The crystalline structure in native bagasse was destroyed and converted from cellulose I to amorphous structure at low dissolution temperature and to cellulose II at high dissolution temperature after regeneration. Thermal stability of lignocellulosics was slightly decreased after dissolution and regeneration in [C4mim]Cl.
