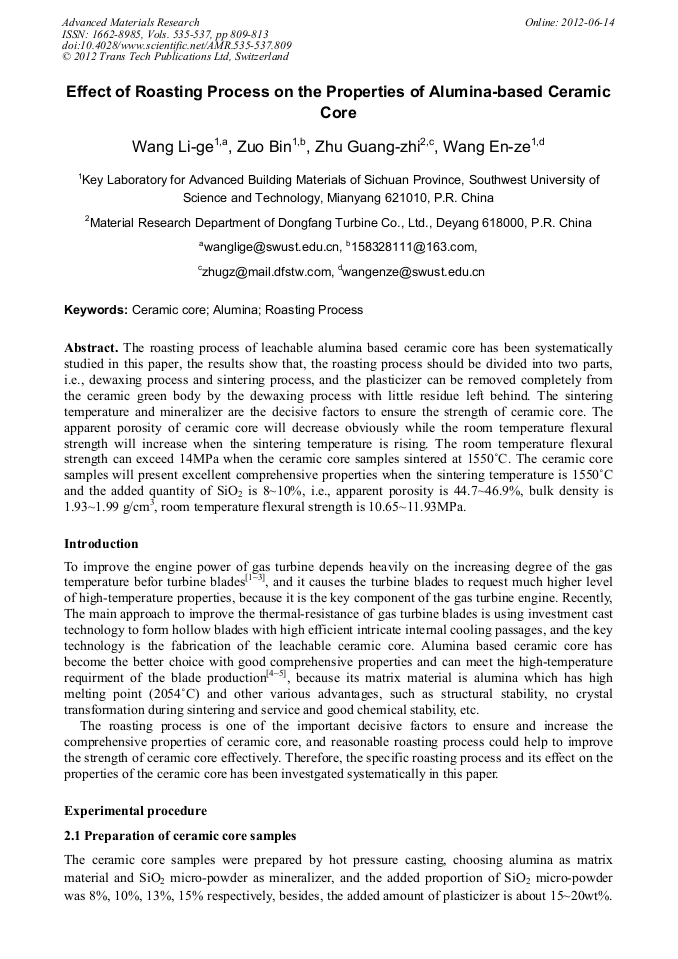

Effect of Roasting Process on the Properties of Alumina-Based Ceramic Core

Abstract:

The roasting process of leachable alumina based ceramic core has been systematically studied in this paper, the results show that, the roasting process should be divided into two parts, i.e., dewaxing process and sintering process, and the plasticizer can be removed completely from the ceramic green body by the dewaxing process with little residue left behind. The sintering temperature and mineralizer are the decisive factors to ensure the strength of ceramic core. The apparent porosity of ceramic core will decrease obviously while the room temperature flexural strength will increase when the sintering temperature is rising. The room temperature flexural strength can exceed 14MPa when the ceramic core samples sintered at 1550°C. The ceramic core samples will present excellent comprehensive properties when the sintering temperature is 1550°C and the added quantity of SiO2 is 8~10%, i.e., apparent porosity is 44.7~46.9%, bulk density is 1.93~1.99 g/cm3, room temperature flexural strength is 10.65~11.93MPa.

• Periodical: Advanced Materials Research (Volumes 535-537)
• Pages: 809-813
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.535-537.809
• Online since: June 2012
• Authors: Li Ge Wang, Bin Zuo, Guang Zhi Zhu, En Ze Wang
• Keywords: Alumina, Ceramic Core, Roasting Process

References

[1] Guohong Gu, Lamei Cao. Development of Ceramic Core for Investment Casting Hollow Blade: Foundry Technology, Vol. 23(2), 2002, p.80~83 "In Chinese"

[2] Wei Zhang, Yujun Zhang, Kun Chen. Review of Lost Pattern Ceramic Core by Precision Casting: Ceramics, (12), 2007, p.8~11 "In Chinese"

[3] Jianping Xiong, Guoqing Zhao and Binyu Dai, etc. Application and Development of Ceramic Core in Production of Aero Engine Blade: Jiang Xi Science, Vol. 25(6), 2007, p.801~806 "In Chinese"

[4] Xiaoying Liu, Baosheng Wang, Zhang Litong. Research Progress of Alumina Based Ceramic Core: Aeronautical Manufacturing Technology, (7), 2005, p.26~29 "In Chinese"

[5] Yexia Qin, Rui Zhang, Aibing Du, Wei Pan. Effect of Particle Size on Properties of Alumina-Based Ceramic Cores: Rare Metal Materials and Enginering, Vol. 36, 2007, p.711~713 "In Chinese"

[6] Baosheng Wang, Laifei Cheng, Litong Zhang, Yongdong Xu. Study on Core Leach Technics of Alumina Base Ceramic Core: Foundry, Vol. 54(8), 2005, p.758~760 "In Chinese"
