Preparation and Characterization of SrO-Fe2O3-FeO-SiO2-B2O3 System Hexaferrites Glass-Ceramics

Jian An Liu; Mei Mei Zhang; Xue Na Yang; Wen He

doi:10.4028/www.scientific.net/AMR.535-537.855

Paper Titles

Effect of MgO on the Microstructure of Polycrystalline Nd:YAG Ceramics and its Action Mechanism
p.836

Influence of CeO₂ and Sintering Parameters on the Performance of Vitrified Bond Diamond Abrasive
p.840

Method of Improving Dielectric Properties of AlN Ceramic
p.844

Preparation and Application of Magnesium (II) 2,2,2-Trifluoroacetate as an Efficient Catalyst for the Catalytic Preparation of 1-Amidoalkyl-2-Naphthol Derivatives
p.851

Preparation and Characterization of SrO-Fe₂O₃-FeO-SiO₂-B₂O₃ System Hexaferrites Glass-Ceramics
p.855

Synthesis of CaO-Na₂O-Fe₂O₃-FeO-B₂O₃-SiO₂ Glass-Ceramics for Hyperthermia Application by Aqueous Solution-Melt Method
p.861

Analysis of Copper and Copper Alloys Electric Components Short Circuited Melted Mark Metallographic Structure
p.869

Study on the AZ31B Magnesium Alloy in the Application on High-Speed Trains
p.875

Effect of Cr and Ni Contents on Microstructure and Properties of High Boron Stainless Steel Composite Plate
p.883

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 535-537Preparation and Characterization of...

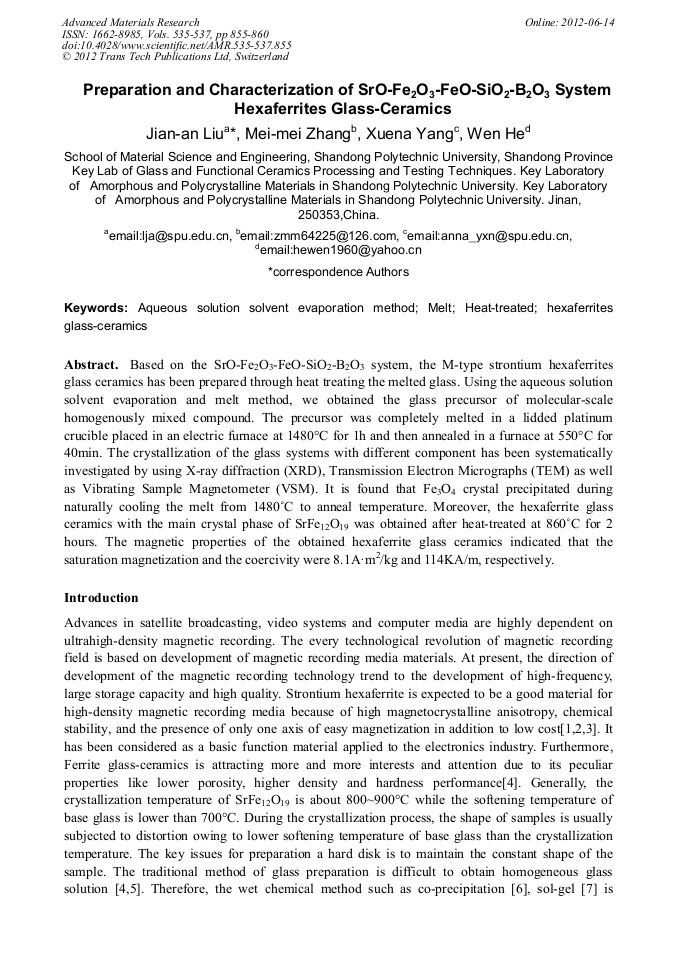

Preparation and Characterization of SrO-Fe₂O₃-FeO-SiO₂-B₂O₃ System Hexaferrites Glass-Ceramics

Abstract:

Based on the SrO-Fe2O3-FeO-SiO2-B2O3 system, the M-type strontium hexaferrites glass ceramics has been prepared through heat treating the melted glass. Using the aqueous solution solvent evaporation and melt method, we obtained the glass precursor of molecular-scale homogenously mixed compound. The precursor was completely melted in a lidded platinum crucible placed in an electric furnace at 1480°C for 1h and then annealed in a furnace at 550°C for 40min. The crystallization of the glass systems with different component has been systematically investigated by using X-ray diffraction (XRD), Transmission Electron Micrographs (TEM) as well as Vibrating Sample Magnetometer (VSM). It is found that Fe3O4 crystal precipitated during naturally cooling the melt from 1480°C to anneal temperature. Moreover, the hexaferrite glass ceramics with the main crystal phase of SrFe12O19 was obtained after heat-treated at 860°C for 2 hours. The magnetic properties of the obtained hexaferrite glass ceramics indicated that the saturation magnetization and the coercivity were 8.1A•m2/kg and 114KA/m, respectively.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 535-537)

Pages:

855-860

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.535-537.855

Citation:

Cite this paper

Online since:

June 2012

Authors:

Jian An Liu, Mei Mei Zhang, Xue Na Yang, Wen He

Keywords:

Aqueous Solution Solvent Evaporation Method, Heat-Treated, Hexaferrites Glass-Ceramics, Melt

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] X.Q. Xiao, Z.Y.Lu: J. SHXU. Nat. Sci. Ed. Vol. 29 (2006), p.51. (In Chinese)

Google Scholar

[2] D. D. Zaitsev, E. A. Gravchikova, P. E. Kazin: Int.J. Appl.Ceram.Techno.Vol.3 (2006), p.279.

Google Scholar

[3] D. D. Zaitsev, E. A. Gravchikova, P. E. Kazin: Inorg. Mater. Vol. 42 (2006), p.326.

Google Scholar

[4] D.D. Zaitseva, P.E. Kazinb, L.A. Trusova: J. Magn. Magn. Mater. Vol. 300(2006), p.473.

Google Scholar

[5] O. Bretcanu, S. Spriano, C. B. Vitale: J .Mater. Sci, Vol. 41(2006), p.1029.

Google Scholar

[6] R. K. Singha, G.P. Kothiyalb, A. Srinivasan: J. Magn. Magn. Mater. Vol. 320(2008) , p.1352.

Google Scholar

[7] M. Baikousi, S. Agathopoulos, I. Panagiotopoulos: J Sol-Gel Sci Technol, Vol. 47 (2008), p.95.

Google Scholar

[8] Y.L. Tian, S.B. Sun. New Glass Technology(China Light Industry Press, Beijing,2009).

Google Scholar
