Effect of Liquid-Die-Forging Pressure on Microstructure and Mechanical Properties of A390 Sloping Swash-Plate

Abstract:

The effect of liquid-die-forging pressure on the microstructure and mechanical properties of A390 sloping swash-plate forming was investigated. It was found that the microstructure and comprehensive mechanical properties of the alloy were effectively improved by the liquid-die-forging pressure applied on the A390 aluminum melt. With continuous increasing of the specific pressure, the grain size of primary silicon gradually decreased, the fraction of eutectic silicon obviously decreased, and its morphology was granular mainly. When the applied pressure was 181 MPa, the size of primary silicon was reduced to about 20 μm. When the casting temperature of the alloy was 820 °C, the mould preheating temperature was 240 °C and the forging casting specific pressure reached 181 MPa, the sloping swash plate without macro-defects, and with the internal compact-gain structure and excellent mechanical properties can be obtained.

You might also be interested in these eBooks

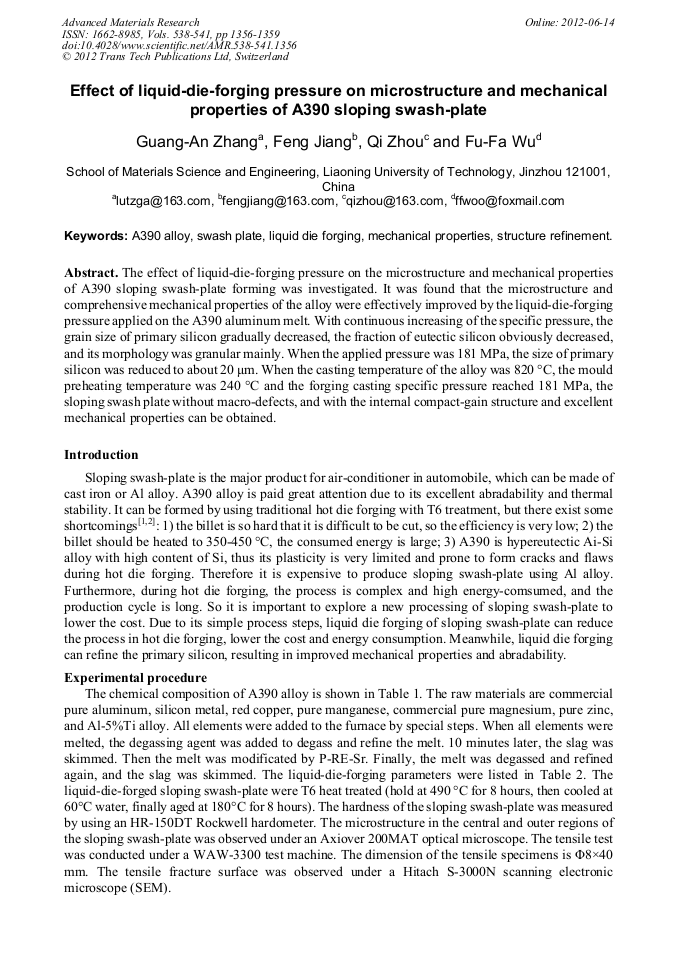

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 538-541)

Pages:

1356-1359

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.538-541.1356

Citation:

Cite this paper

Online since:

June 2012

Authors:

Guang An Zhang, Feng Jiang, Qi Zhou, Fu Fa Wu

Keywords:

A390 Alloy, Liquid Die Forging, Mechanical Property, Structure Refinement, Swash Plate

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Wan L, Luo JR, Liang QH. Production of aluminum alloy swashplate for compressor of air conditionor for the car by squeezing casting (In Chinese). Special Casting and Nonferrous Alloys 2008;28:775.

Google Scholar

[2] Yin F, Wang GX, Hong SZ. Technological study of liquid die forging for the aluminium alloy connecting rod of an air compressor (In Chinese). Journal of Materials Processing Technology 2003;139:462.

DOI: 10.1016/s0924-0136(03)00554-5

Google Scholar

[3] Hong SZ, Zeng ZP. Effects of the specific pressure on grain size in squeeze casting (In Chinese). Special Casting and Nonferrous Alloys 2002;22:26.

Google Scholar

[4] Yu XF, Zhang GZ, Xiao HJ, Pan AS, Jia GL, Gao YY, Hao ZY, Guo XB. Microstructure changes and growth mechanism of hypoeutectic Al-Si Alloy solidified at high pressure (In Chinese). Chinese Journal of Materials Research 2000;14:141.

Google Scholar
