The Design of Pneumatic Control System for CHT Hydrolysis Device

Abstract:

The working medium of the pneumatic control system is air, which is delivered to each branch pipe through the role of the governing valve , and then the divided gas delivers the compressed air to each solenoid valve and pneumatic control valve. The solenoid valves and pneumatic control valve is connected through terminals and PLC, PLC obtains corresponding signal and makes judgment, conveying signal which is delivered to the solenoid valves and pneumatic control valve to achieve ventilation and breathe action, and finally the gas reaches the cylinder . The cylinder can complete the valve body on and off, so as to realize the pneumatic system of the automatic control.

You might also be interested in these eBooks

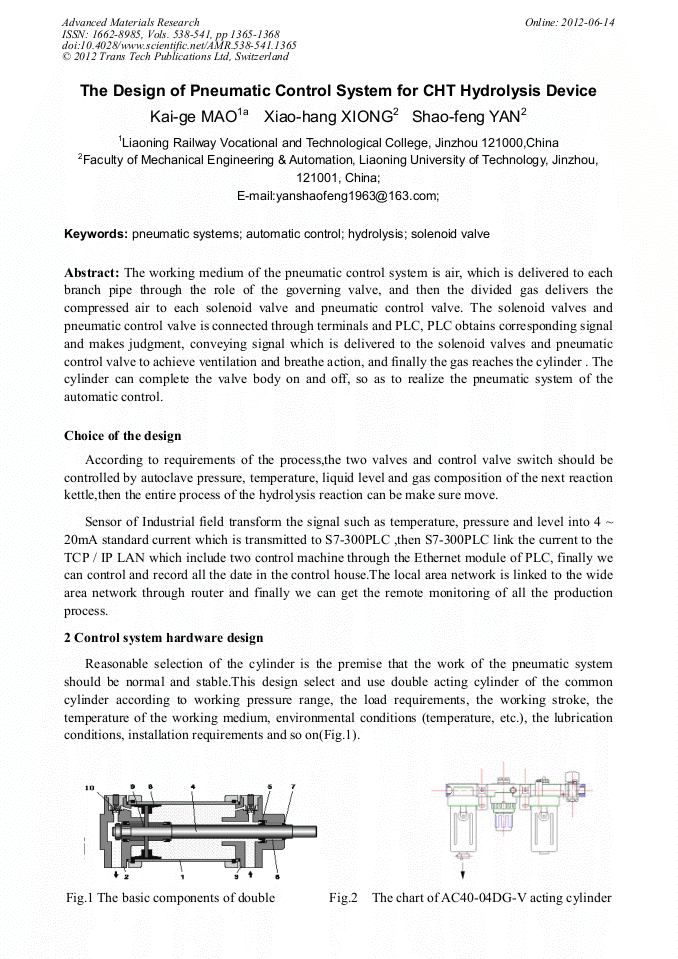

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 538-541)

Pages:

1365-1368

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.538-541.1365

Citation:

Cite this paper

Online since:

June 2012

Authors:

Kai Ge Mao, Xiao Hang Xiong, Shao Feng Yan

Keywords:

Automatic Control, Hydrolysis, Pneumatic Systems, Solenoid Valve
