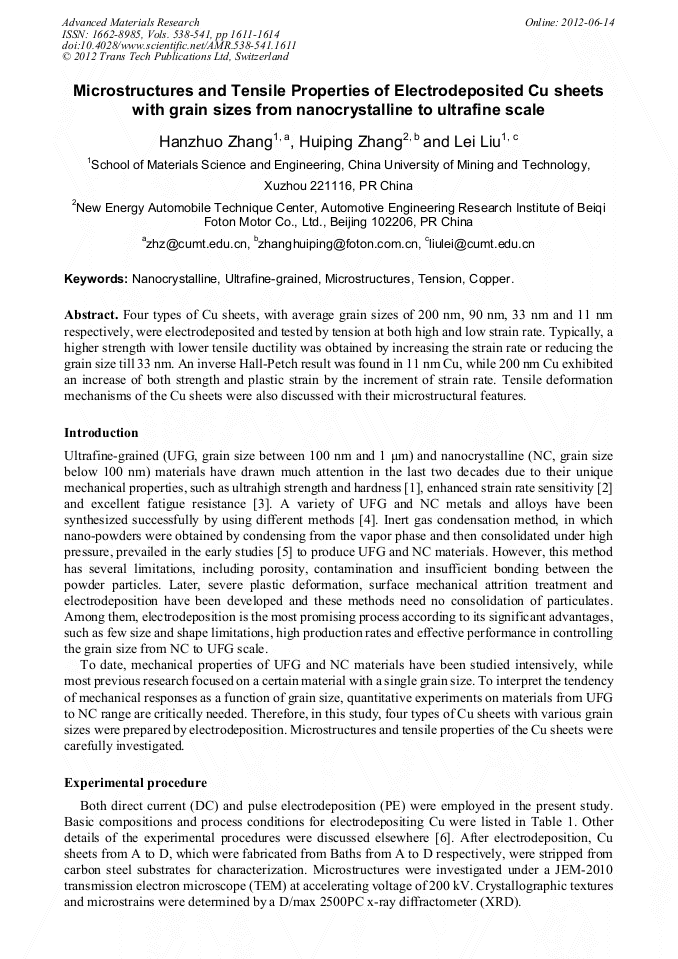

Microstructures and Tensile Properties of Electrodeposited Cu Sheets with Grain Sizes from Nanocrystalline to Ultrafine Scale

Han Zhuo Zhang; Huiping Zhang; Lei Liu

doi:10.4028/www.scientific.net/AMR.538-541.1611

Paper Titles

Characterization of Fatigue Damage of Crankshaft Remanufacturing Core by Two-Dimensional Magnetic Memory Signal
p.1588

The Impact Toughness and Fracture Behavior of Ni-Containing Powder Metal Steels
p.1594

Effect of Ce on the High Temperature Mechanical Properties of Martensitic Stainless Steel
p.1601

Flow Stress Behavior of 2205 Duplex Stainless Steel during Warm Tensile
p.1605

Microstructures and Tensile Properties of Electrodeposited Cu Sheets with Grain Sizes from Nanocrystalline to Ultrafine Scale
p.1611

Influence of Tempering Temperature on the Mechanical Properties of CrMnNiMo Steel
p.1615

Study on Mechanical Properties of Activated Carbon Fiber Reinforced Medium Density Fiberboard
p.1619

Delamination Analysis of Carbon Fiber-Reinforced PEEK Using Coarse Mesh
p.1624

High Cycle Fatigue Tests at High Temperature under Superheated Steam Conditions
p.1630

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 538-541Microstructures and Tensile Properties of...

Microstructures and Tensile Properties of Electrodeposited Cu Sheets with Grain Sizes from Nanocrystalline to Ultrafine Scale

Abstract:

Four types of Cu sheets, with average grain sizes of 200 nm, 90 nm, 33 nm and 11 nm respectively, were electrodeposited and tested by tension at both high and low strain rate. Typically, a higher strength with lower tensile ductility was obtained by increasing the strain rate or reducing the grain size till 33 nm. An inverse Hall-Petch result was found in 11 nm Cu, while 200 nm Cu exhibited an increase of both strength and plastic strain by the increment of strain rate. Tensile deformation mechanisms of the Cu sheets were also discussed with their microstructural features.
