Influence of Tempering Temperature on the Mechanical Properties of CrMnNiMo Steel

Jie Li; Wen Ming Wang; Ji Xiang Gao; Wei Shao

doi:10.4028/www.scientific.net/AMR.538-541.1615

Paper Titles

The Impact Toughness and Fracture Behavior of Ni-Containing Powder Metal Steels
p.1594

Effect of Ce on the High Temperature Mechanical Properties of Martensitic Stainless Steel
p.1601

Flow Stress Behavior of 2205 Duplex Stainless Steel during Warm Tensile
p.1605

Microstructures and Tensile Properties of Electrodeposited Cu Sheets with Grain Sizes from Nanocrystalline to Ultrafine Scale
p.1611

Influence of Tempering Temperature on the Mechanical Properties of CrMnNiMo Steel
p.1615

Study on Mechanical Properties of Activated Carbon Fiber Reinforced Medium Density Fiberboard
p.1619

Delamination Analysis of Carbon Fiber-Reinforced PEEK Using Coarse Mesh
p.1624

High Cycle Fatigue Tests at High Temperature under Superheated Steam Conditions
p.1630

Structural Health Monitoring of Cracked Beam by the Dual Reciprocity Boundary Element Method
p.1634

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 538-541Influence of Tempering Temperature on the...

Influence of Tempering Temperature on the Mechanical Properties of CrMnNiMo Steel

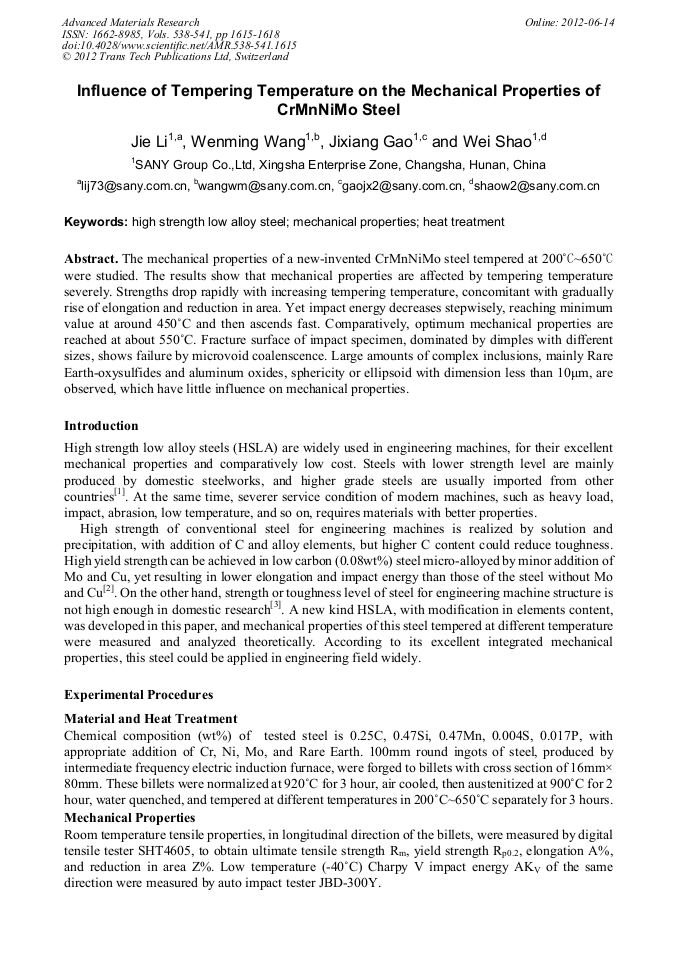

Abstract:

The mechanical properties of a new-invented CrMnNiMo steel tempered at 200°C~650°C were studied. The results show that mechanical properties are affected by tempering temperature severely. Strengths drop rapidly with increasing tempering temperature, concomitant with gradually rise of elongation and reduction in area. Yet impact energy decreases stepwisely, reaching minimum value at around 450°C and then ascends fast. Comparatively, optimum mechanical properties are reached at about 550°C. Fracture surface of impact specimen, dominated by dimples with different sizes, shows failure by microvoid coalenscence. Large amounts of complex inclusions, mainly Rare Earth-oxysulfides and aluminum oxides, sphericity or ellipsoid with dimension less than 10μm, are observed, which have little influence on mechanical properties.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 538-541)

Pages:

1615-1618

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.538-541.1615

Citation:

Cite this paper

Online since:

June 2012

Authors:

Jie Li, Wen Ming Wang, Ji Xiang Gao, Wei Shao

Keywords:

Heat Treatment, High Strength Low Alloy Steel, Mechanical Property

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Li C M, Wang J J, Yan Z H. Shandong Metall, 2008, 30(4): 9.(in Chinese)

Google Scholar

[2] Ghosh A, Mishra B, Das S, et al. Mater Sci Eng A, 2005, 396: 320.

Google Scholar

[3] QIAN Ya-jun, YU Wei, et al. Journal of University of Science and Technology Beijing, 2010, 32(5): 599-604. (in Chinese)

Google Scholar

[4] Wei Yan, Lin Zhu,Wei Sha. Materials Science and Engineering A, 2009, 517: 369-374.

Google Scholar

[5] Jie Li, Feng Guo, et al. Sino-Swedish Structural Materials Symposium, Beijing, China, 2007, 254-258.

Google Scholar

[6] C.Y. Chen, H.W. Yen, F.H. Kao. Materials Science and Engineering A 499 (2009) 162-166.

Google Scholar

[7] Lee W B, Hong S G, Park C G, et al. Scripta Materialia, 2000, 43(4): 319-324.

Google Scholar

[8] Yihong Nie. Research on the Organization and Fatigue Behavior of Medium-Carbon Ultra High Strength Spring Steel[D]. Yanshan: YanShan University, 2007. (in Chinese)

Google Scholar
