Paper Titles

Research of the Nonlinear 3D Surface NC Machining Technology
p.190

Effect of Al on Zn-Al Filler Metal Wettability on Pure Copper Surface
p.196

Effect of Isothermal Heat Treatment on Abrasive Wear Resistance of HVOF WC-10Co-4Cr Coating
p.200

Research on Friction and Wear Properties of Plasma Spraying Ni-Base Alloy Coatings on Aluminum Alloy Surfaces
p.207

Surface Modification of Brucite and its Application in Flame Retardant Polypropylene Composites
p.214

A Study of the Anti-Fouling Property of the Electroless Ni-P-Sn Coating
p.218

Impact of Coating Adhesive on Printability of Inkjet Paper
p.222

Friction Performance of the Bionic Surfaces with Convex Domes
p.226

Influence of Triethylamine Inhibitor Addition on the Sealing Process of 6063 Al Alloy
p.230

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 538-541Surface Modification of Brucite and its...

Surface Modification of Brucite and its Application in Flame Retardant Polypropylene Composites

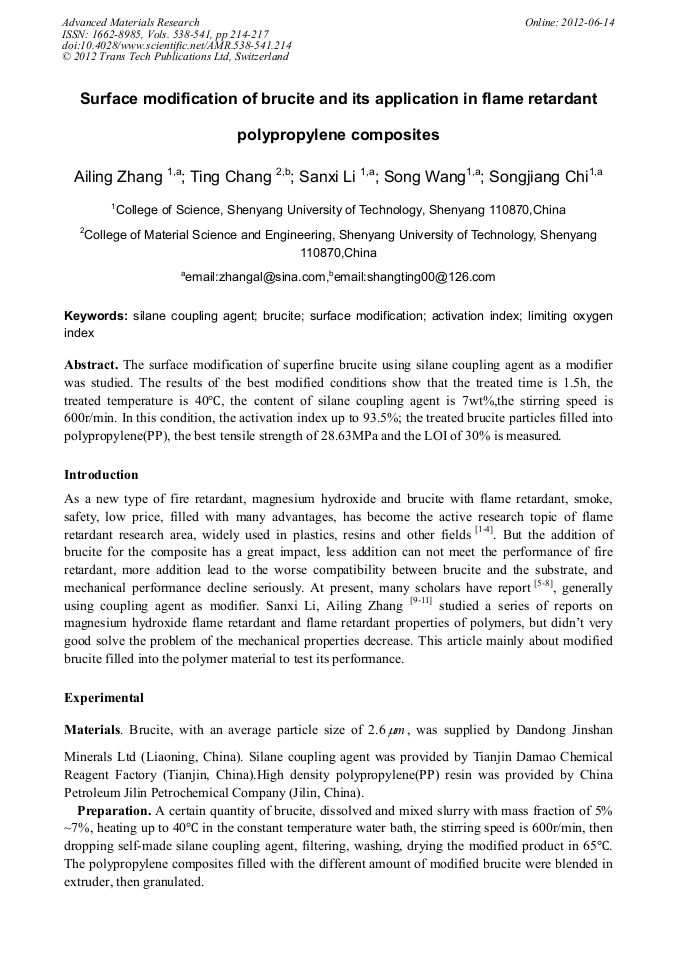

Article Preview

Abstract:

The surface modification of superfine brucite using silane coupling agent as a modifier was studied. The results of the best modified conditions show that the treated time is 1.5h, the treated temperature is 40°C, the content of silane coupling agent is 7wt%,the stirring speed is 600r/min. In this condition, the activation index up to 93.5%; the treated brucite particles filled into polypropylene(PP), the best tensile strength of 28.63MPa and the LOI of 30% is measured.

You might also be interested in these eBooks

Materials Processing Technology II

Info:

Periodical:

Advanced Materials Research (Volumes 538-541)

Pages:

214-217

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.538-541.214

Citation:

Cite this paper

Online since:

June 2012

Authors:

Ai Ling Zhang, Ting Chang, San Xi Li, Song Wang, Song Jiang Chi

Keywords:

Activation Index, Brucite, Limiting Oxygen Index, Silane Coupling Agent, Surface Modification

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] Chemev B, Olbrich M, Zipper P: Composite Interfaces.Vol.12 (2005),p.221.

[2] Velasco J I, Morhain C, Arencn D, et al: Polymer Bulletin.Vol.41(1998),p.615.

[3] Guochu Deng, Yongding Lu, Yousheng Yang:China Plastics.Vol.17(2007),p.21.

[4] Xianyou Zhang, Mingfu Lu, Shouguo Sheng, et al: Acta Materiae Compositae Sinica. Vol.15(1998),p.81.

[5] Gaoxiang Du, Shuilin Zheng, Yang Li: China Plastics.Vol.18 (2004),p.75.

[6] Gaoxiang Du, Shuilin Zheng, Yang Li: Journal of the Chinese Ceramic Society.Vol.33(2005),p.659.

[7] Xiaolang Chen, Jie Yu, Shaoyun Guo,et al: J Mater Sci.Vol.44(2009),p.1324.

[8] Xiaolang Chen, Jie Yu, Shaoyun Guo,et al: Polymer Materials Science and Engineering.Vol. 25(2009),p.60.

[9] Zhengzheng Li, Sanxi Li, Ailing Zhang, et al:Vol.37(2009),p.83.

[10] Ailing Zhang, Song Wang, Sanxi Li, et al:China. Patent CN102010619A.(2011).

[11] Sanxi Li, Yong Liang, Ailing Zhang, et al: Journal of Shenyang University of Technology. Vol.33(2011),p.121.

[12] Zhaohao Li, Peihua Ma, Faqiang Li: Ses-Lake and Chemical Industry.Vol.34(2005),p.14.

[13] Lianmin Ji, Lijuan Li, Dafu Chen, et al: Inorganic Chemicals Industry.Vol.40(2008),p.41.

[14] Qingnian Dong:Ifrared Spectroscopy(Chemical Industry Press, Beijing 1979).
