Size Optimization of the Pillars in the Flexible Gripping Tooling Stent

Abstract:

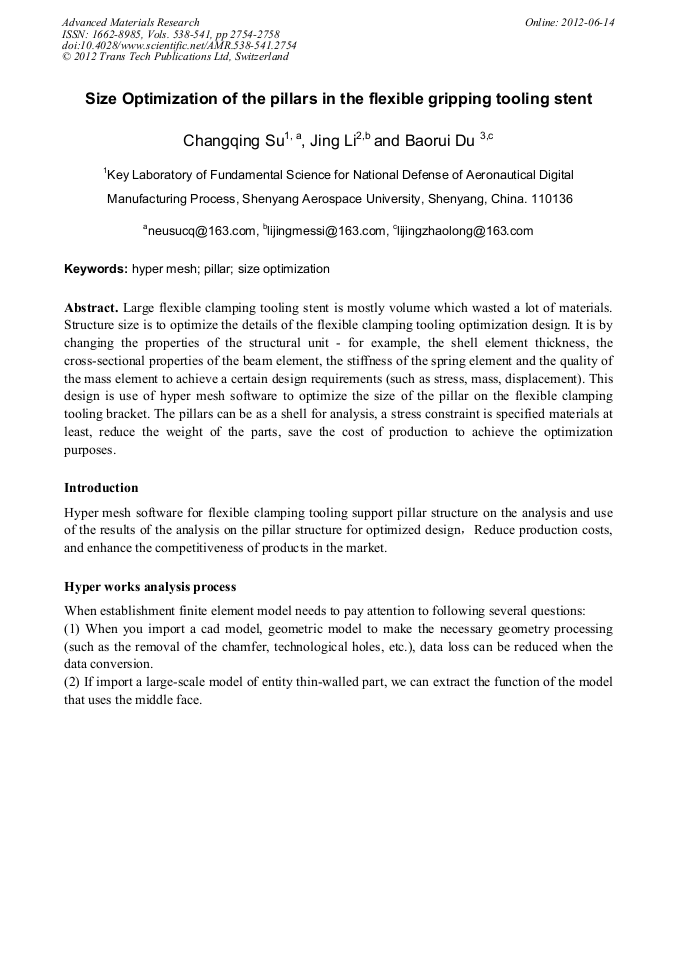

Large flexible clamping tooling stent is mostly volume which wasted a lot of materials. Structure size is to optimize the details of the flexible clamping tooling optimization design. It is by changing the properties of the structural unit - for example, the shell element thickness, the cross-sectional properties of the beam element, the stiffness of the spring element and the quality of the mass element to achieve a certain design requirements (such as stress, mass, displacement)。This design is use of hyper mesh software to optimize the size of the pillar on the flexible clamping tooling bracket. The pillars can be as a shell for analysis, a stress constraint is specified materials at least, reduce the weight of the parts, save the cost of production to achieve the optimization purposes.
