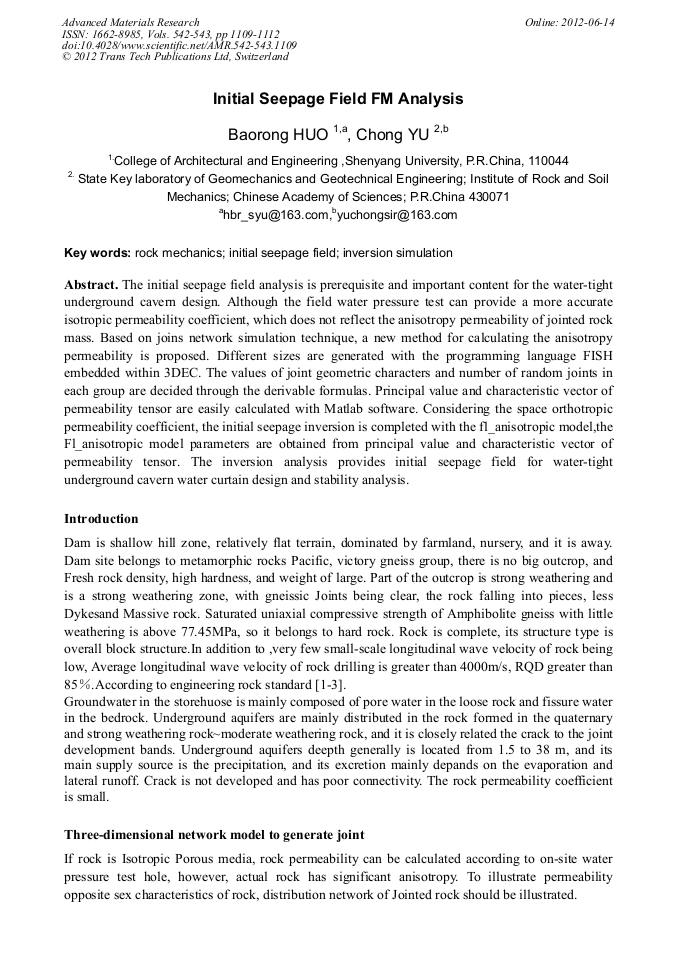

Initial Seepage Field FM Analysis

Abstract:

The initial seepage field analysis is prerequisite and important content for the water-tight underground cavern design. Although the field water pressure test can provide a more accurate isotropic permeability coefficient，which does not reflect the anisotropy permeability of jointed rock mass.Based on joins network simulation technique，a new method for calculating the anisotropy permeability is proposed. Different sizes are generated with the programming language FISH embedded within 3DEC. The values of joint geometric characters and number of random joints in each group are decided through the derivable formulas. Principal value and characteristic vector of permeability tensor are easily calculated with Matlab software. Considering the space orthotropic permeability coefficient，the initial seepage inversion is completed with the fl_anisotropic model，the Fl_anisotropic model parameters are obtained from principal value and characteristic vector of permeability tensor. The inversion analysis provides initial seepage field for water-tight underground cavern water curtain design and stability analysis.

• Periodical: Advanced Materials Research (Volumes 542-543)
• Pages: 1109-1112
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.542-543.1109
• Online since: June 2012
• Authors: Bao Rong Huo, Chong Yu
• Keywords: Initial Seepage Field, Inversion Simulation, Rock Mechanics

References

[1] The National Standards Compilation Group of People s Republic of China.GB50218-94 Standard for engineering classification of rock masses[S].Beijing:China Planning Press,1995.(in Chinese)

[2] The National Standards Compilation Group of People s Republic of China.GB50287-99 Code for water resources and hydropower engineering geological investigation[S].Beijing:China Planning Press,1999.(in Chinese).

[3] YI Zhongzhen. The national second-stage oil storage bases Dalian underground oil storage cavern geotechnical engineering evaluation report[R]. Daqing:Daqing Oilfield Engineering Co Ltd,2005.(in Chinese).

[4] WANG Guibin,YANG Chunhe,YIN Liming. 3D network simulation technique of joints in rock mass and permeability tensor analysis[J]. Chinese Journal of Rock Mechanics and Engineering,2004,23(21):3591-3594.(in Chinese)

[5] WANG Tao,ZHU Huanchun,LI Hao,et al. On the computerized direct method generating joint random number[J]. Chinese Journal of Rock Mechanics and Engineering, 2002, 21(4): 489-492. (in Chinese)

[6] ZHU Huanchun, CHEN Wenli. Direct method forming joint random number [J]. Engineering Journal of Wuhan University,1997,30(2):10-12.(in Chinese)

[7] WANG Tao, SHEN Qian,CHEN Xiaoling. 3D discrete element method based on direct method of joint network simulation [J]. Chinese Journal of Rock Mechanics and Engineering, 2005,24(10):1649-1653.(in Chinese)

[8] ZHU Zhende, GUO Haiqing. Principles of fractured rock mass hydraulics[M]. Beijing:Science Press,2007.(in Chinese)
