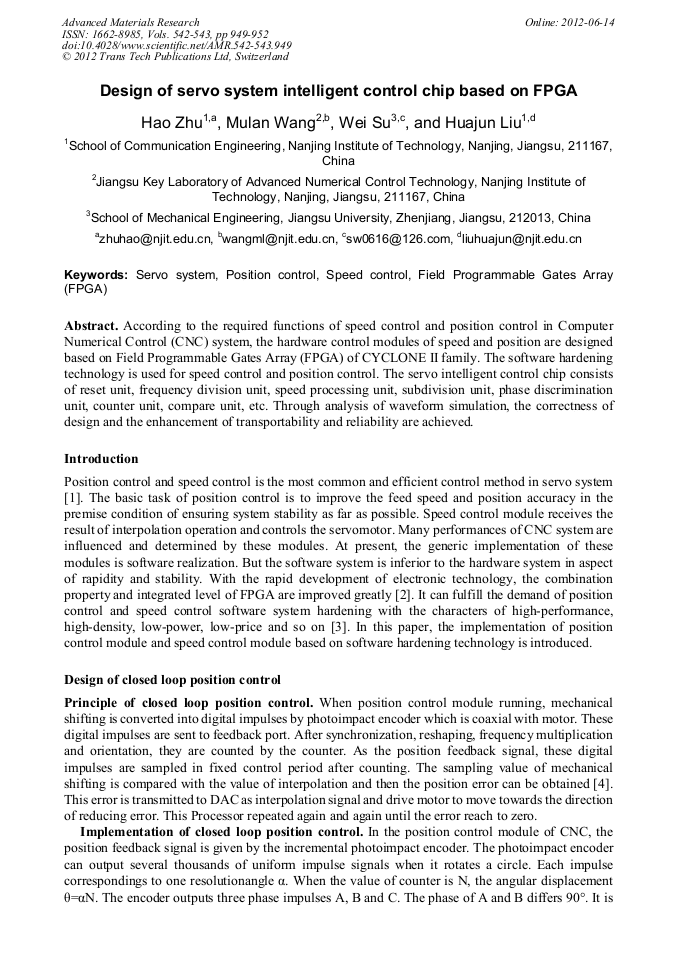

Design of Servo System Intelligent Control Chip Based on FPGA

Abstract:

According to the required functions of speed control and position control in Computer Numerical Control (CNC) system, the hardware control modules of speed and position are designed based on Field Programmable Gates Array (FPGA) of CYCLONE II family. The software hardening technology is used for speed control and position control. The servo intelligent control chip consists of reset unit, frequency division unit, speed processing unit, subdivision unit, phase discrimination unit, counter unit, compare unit, etc. Through analysis of waveform simulation, the correctness of design and the enhancement of transportability and reliability are achieved.
