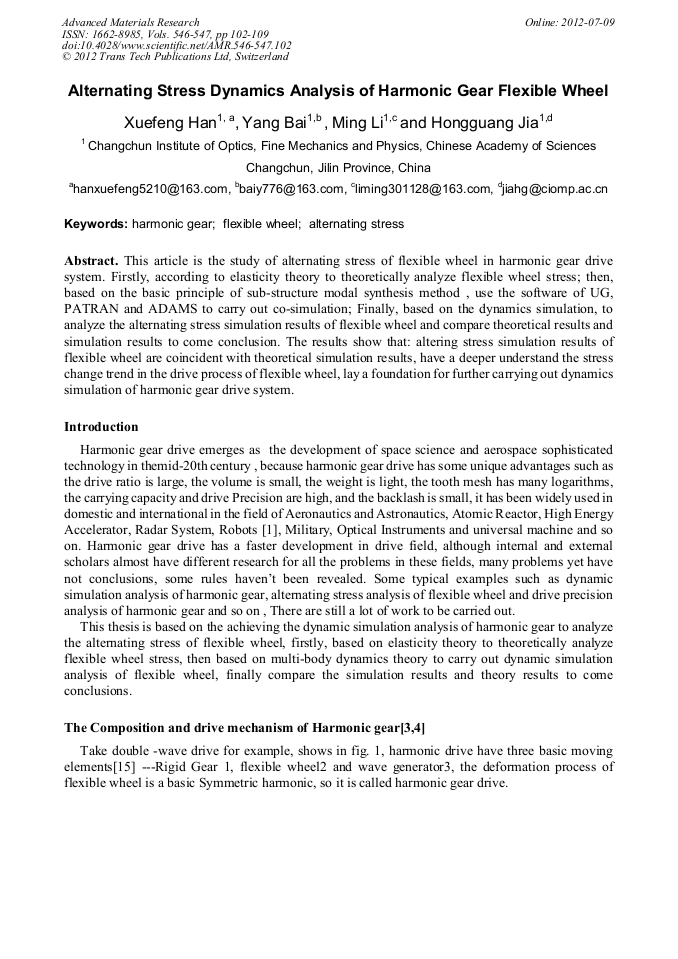

Alternating Stress Dynamics Analysis of Harmonic Gear Flexible Wheel

Abstract:

This article is the study of alternating stress of flexible wheel in harmonic gear drive system. Firstly, according to elasticity theory to theoretically analyze flexible wheel stress; then, based on the basic principle of sub-structure modal synthesis method , use the software of UG、PATRAN and ADAMS to carry out co-simulation; Finally, based on the dynamics simulation, to analyze the alternating stress simulation results of flexible wheel and compare theoretical results and simulation results to come conclusion. The results show that: altering stress simulation results of flexible wheel are coincident with theoretical simulation results, have a deeper understand the stress change trend in the drive process of flexible wheel, lay a foundation for further carrying out dynamics simulation of harmonic gear drive system.

You might also be interested in these eBooks

Electrical Insulating Materials and Electrical Engineering

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 546-547)

Pages:

102-109

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.546-547.102

Citation:

Cite this paper

Online since:

July 2012

Authors:

Xue Feng Han, Yang Bai, Ming Li, Hong Guang Jia

Keywords:

Alternating Stress, Flexible Wheel, Harmonic Gear
