HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 546-547Application of Novel Subspace Pursuit on Guided...

Application of Novel Subspace Pursuit on Guided Wave Signal Recognition Based on Modified Differential Evolution Algorithm

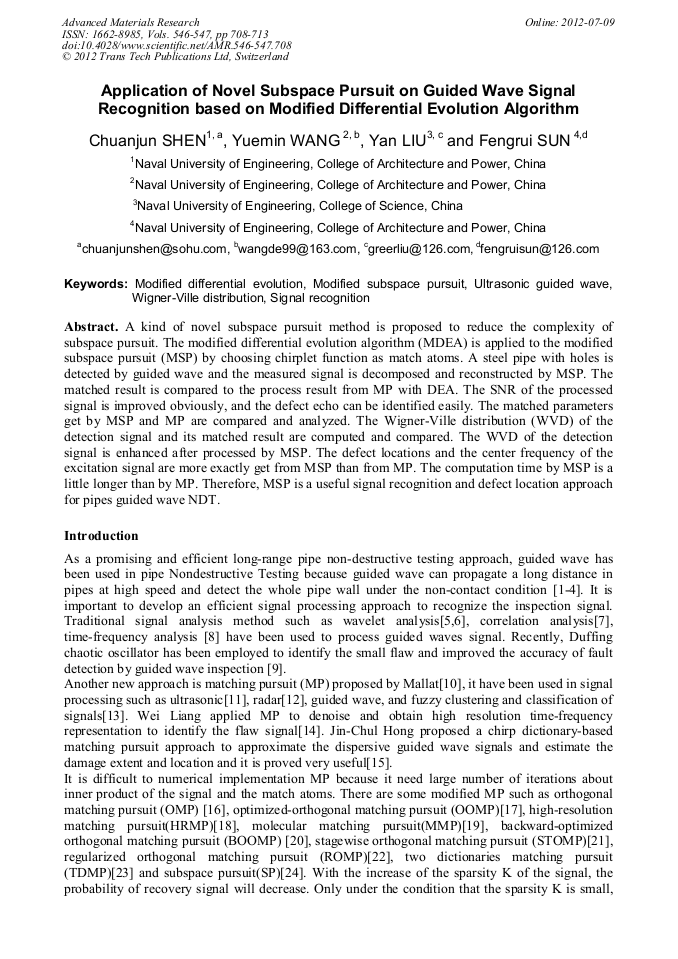

Article Preview

Abstract:

A kind of novel subspace pursuit method is proposed to reduce the complexity of subspace pursuit. The modified differential evolution algorithm (MDEA) is applied to the modified subspace pursuit (MSP) by choosing chirplet function as match atoms. A steel pipe with holes is detected by guided wave and the measured signal is decomposed and reconstructed by MSP. The matched result is compared to the process result from MP with DEA. The SNR of the processed signal is improved obviously, and the defect echo can be identified easily. The matched parameters get by MSP and MP are compared and analyzed. The Wigner-Ville distribution (WVD) of the detection signal and its matched result are computed and compared. The WVD of the detection signal is enhanced after processed by MSP. The defect locations and the center frequency of the excitation signal are more exactly get from MSP than from MP. The computation time by MSP is a little longer than by MP. Therefore, MSP is a useful signal recognition and defect location approach for pipes guided wave NDT.

You might also be interested in these eBooks

Electrical Insulating Materials and Electrical Engineering

Info:

Periodical:

Advanced Materials Research (Volumes 546-547)

Pages:

708-713

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.546-547.708

Citation:

Cite this paper

Online since:

July 2012

Authors:

Chuan Jun Shen, Yue Min Wang, Yan Liu, Feng Rui Sun

Keywords:

Modified Differential Evolution, Modified Subspace Pursuit, Signal Recognition, Ultrasonic Guided Wave, Wigner-Ville Distribution (WVD)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] J.L. Rose, J.J. Ditri, A. Pilarski, et al, NDT&E international. 27, (1994), pp.307-310.

[2] H. Kwun, J. J. Hanley, A. E. Hlt, SPIE, vol. 2459 (2000), pp.140-148.

[3] Y. K. Yoon, I . P . Chan, H C Seung, et al, Acoustical Society of America, vol. 117(6) (2005), pp.3459-3468.

[4] Yuemin Wang, Yihua Kang, Xinjun Wu, Journal of Vibration, Measurement&Diagnosis, vol. 24(3) (2004), pp.210-213.

[5] Fangcheng He, Yifei Gao, Zhenggan Zhou, et al, 12th A-PCNDT 2006 – Asia-Pacific Conference on NDT, Auckland, New Zealand, (2006).

[6] Igor Lyutak. Sofia, Bulgaria. (2005), pp.517-522.

[7] Weiwei Zhang, Zhihua Wang, Hongwei Ma, Journal of Jinan University (Natural Science), vol. 30(3) (2009), pp.269-272.

[8] Xu Kailiang, Ta Dean, Wang Weiqi, Chinese Journal of Biomedical Engineering, vol. 29(1) (2010), pp.66-70.

[9] Jun Zou, Xinjun WU, Jiang Xu, et al, Nondestructive testing, 30(9) (2008), pp.600-603.

[10] S.G. Mallat, Zhifeng Zhang, IEEE Transaction on Signal Processing, vol. 41(2)(1993), pp.3397-3414.

[11] N. Ruiz-Reyes, P. Vera-Candeas, J. Curpian-Aloma, Signal processing, vol. 86(2006), pp.962-970.

[12] Dangwei Wang, Xinyi Ma, Xinpu Guan, et al, 2006 CIE international conference on Radar, (2006), pp.1-4.

DOI: 10.1109/icr.2006.343376

[13] Raazia Mazhar, Paul D. Gader, Joseph N. Wilson, IEEE International conference on fuzzy systems, (2008), p.1950-(1955).

[14] Wei Liang, NDT&E International, vol. 42(2009), pp.430-433.

[15] J.C. Hong, K.H. Sun, Y.Y. Kim, Smart Structures and Materials, vol. 14 (2005), pp.548-560.

[16] Y.C. Pati, R. Rezaifar, P. Slshna Prased, In 27th Asilomar Conference on signals, Systems and Computation, November, (1993).

[17] L. Robollo-Neira, D. Lowe, IEEE signal process, vol. 9(4)(2002), pp.137-140.

[18] S. Jaggi, W.C. Karl, S. Mallat, et al, Applied and computation Harmonic analysis, vol. 5(4)(1998), pp.428-449.

[19] L. Daudet, IEEE trans. Audio Speech, Lang. Process, vol. 14(5)(2006), pp.1808-1816.

[20] M. Andrle, L. Rebollo-Neira, Signal process, vol. 86(3)(2009), pp.480-495.

[21] D. L Donoho, I. Drori, Y. Tsaig, J.L. Stack, Applied and computation Harmonic analysis, vol. 26(3)(2009) pp.301-321.

[22] D. Needell, R. Vershynin, Foundation of Computation Mathematics, vol. 9(3)(2009), pp.317-334.

[23] Peng Xu, Dezhong Yao, Signal processing, vol. 86(2006), pp.3472-3480.

[24] W. Dai, M. Strauss, J. Tropp, et al, IEEE Trans inform theory, vol. 55(5)(2009), pp.2230-2249.

[25] R. Stum, K. Price, Technical Report TR-95-012, ICSI, (1995).

[26] L.J. Fogel, Artificial intelligence through simulated evolution, NewYork, (1966), p.39.

[27] J.H. Holland, Adaptation in natural and artificial system. Ann arbor: University of Michigan Press, (1975).

[28] Liu Mingguang, System engineering, Vol. 23(2)(2005), pp.108-10.

[29] Xia Huiming, Zhou Yongquan, Computer engineering applications, Vol. 45(32)(2009), pp.41-44.
