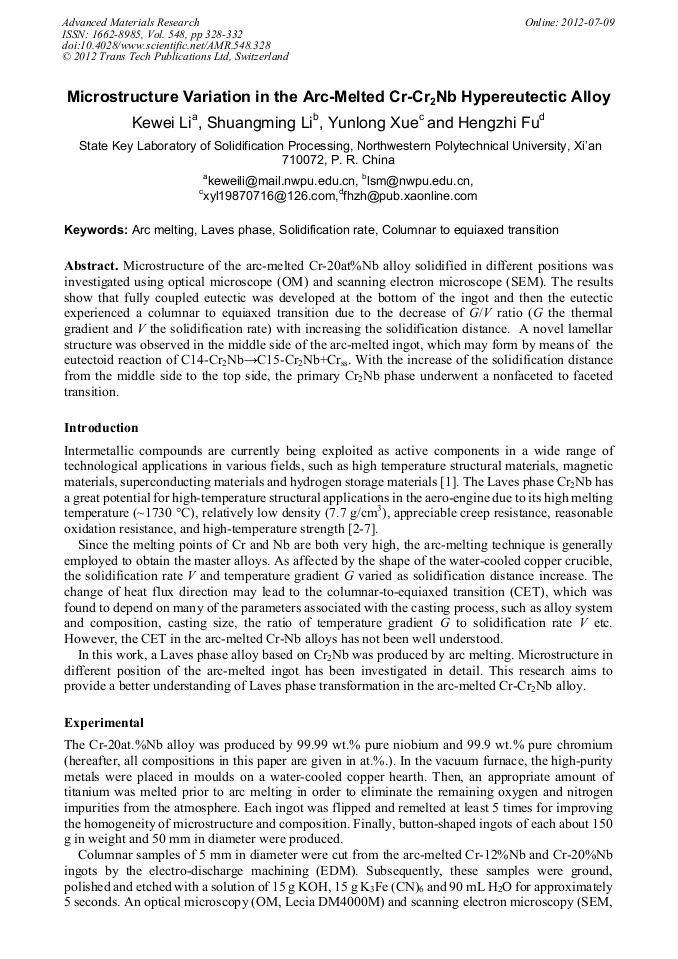

Microstructure Variation in the Arc-Melted Cr-Cr₂Nb Hypereutectic Alloy

Abstract:

Microstructure of the arc-melted Cr-20at%Nb alloy solidified in different positions was investigated using optical microscope (OM) and scanning electron microscope (SEM). The results show that fully coupled eutectic was developed at the bottom of the ingot and then the eutectic experienced a columnar to equiaxed transition due to the decrease of G/V ratio (G the thermal gradient and V the solidification rate) with increasing the solidification distance. A novel lamellar structure was observed in the middle side of the arc-melted ingot, which may form by means of the eutectoid reaction of C14-Cr₂Nb→C15-Cr₂Nb+Crss. With the increase of the solidification distance from the middle side to the top side, the primary Cr₂Nb phase underwent a nonfaceted to faceted transition.

You might also be interested in these eBooks

Material and Manufacturing Technology III

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 548)

Pages:

328-332

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.548.328

Citation:

Cite this paper

Online since:

July 2012

Authors:

Ke Wei Li, Shuang Ming Li, Yun Long Xue, Heng Zhi Fu

Keywords:

Arc Melting, Columnar to Equiaxed Transition, Laves Phase, Solidification Rate

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] K.S. Chan, D.L. Davidson. JOM Vol. 9 (1996), p.62.

Google Scholar

[2] A.V. Kazantzis, M. Aindow, I.P. Jones, G. K Triantafyllidis, J. Th. M. De Hosson. Acta Mater Vol. 55 (2007), p.1873.

Google Scholar

[3] C. Jiang. Acta Mater Vol. 55 (2007), p.1599.

Google Scholar

[4] F. Chu, Y. He, D.J. Thoma, T.E. Mitchell. Scripta Mater Vol. 33(1995), p.1295.

Google Scholar

[5] J.H. Zhu, L.M. Pike, C.T. Liu, P.K. Liaw. Scripta Mater Vol. 39 (1998), p.833.

Google Scholar

[6] J.H. Zhu, L.M. Pike, C.T. Liu, P.K. Liaw. Acta Mater Vol. 47 (1999), p. (2003).

Google Scholar

[7] H. Okaniwa, D. Shindo, M. Yoshida, T. Takasugi. Acta Mater Vol. 47 (1999), p. (1987).

Google Scholar

[8] D.M. Stefanescu. Science and Engineering of Casting Solidification, 2nd ed. New York: (2009).

Google Scholar

[9] M.H. Burden, J.D. Hunt. Metall. Trans. A, 1975, Vol. 6A, p.240.

Google Scholar

[10] M.H. Burden, J.D. Hunt. J. Cryst. Growth, 1974, Vol. 22, p.99.

Google Scholar

[11] M.H. Burden, J.D. Hunt. J. Cryst. Growth, 1974, Vol. 22, p.109.

Google Scholar

[12] Lee Sanboh, P. K Liaw, C. T Liu, Y. T Chou. Mater Sci Eng A Vol. 268 (1999), p.184.

Google Scholar

[15] T. Takasugi, S. Hanada, M. Yoshida. Mater Sci Eng Vol. A192/193 (1995), p.805.

Google Scholar

[16] K.A. Jackson: Kinetic processes: Crystal growth, diffusion phase transition in materials (Wiley-VCH, New York 2004).

Google Scholar

[17] D. J Thoma. Ph.D. Thesis, University of Wisconsin-Madison (1992).

Google Scholar

[18] W. Kurz, D.J. Fisher: Fundamentals of Solidification (Trans Tech Publications LTD., Switzerland 2005).

Google Scholar
