Fracture Analysis of High Chromium Cast Iron Roll on CSP Mill

Guo Sheng Wu; Yu Tao Wang

doi:10.4028/www.scientific.net/AMR.548.538

Paper Titles

Mechanical Failure Analysis of Aircraft Alternator Based on Fault Tree and Case Reasoning
p.516

A New Reliability Prediction Method Based on Physics of Failure Method for Product Design and Manufacture
p.521

Research Progress on Electrostatic Discharge Failure Models in Semiconductor Materials
p.527

Study on the Fatigue Small Cracking Behavior of 6A02 Aluminum Alloy
p.532

Fracture Analysis of High Chromium Cast Iron Roll on CSP Mill
p.538

A New Design Method for the Fault Diagnosis on the Rotating Rectifier of Aeronautic Synchronous Generator
p.544

The Influence of Skin Effect on Via-Vicinity-Interfaces Current Density of Cu Interconnects
p.551

The Study on Weld Tracking of TIG Based on Rotating Arc
p.555

The Selection of the Optimal Solution for SHEPWM under the Influence of IGBT's Manufacturing Technology and Power Losses
p.560

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 548Fracture Analysis of High Chromium Cast Iron Roll...

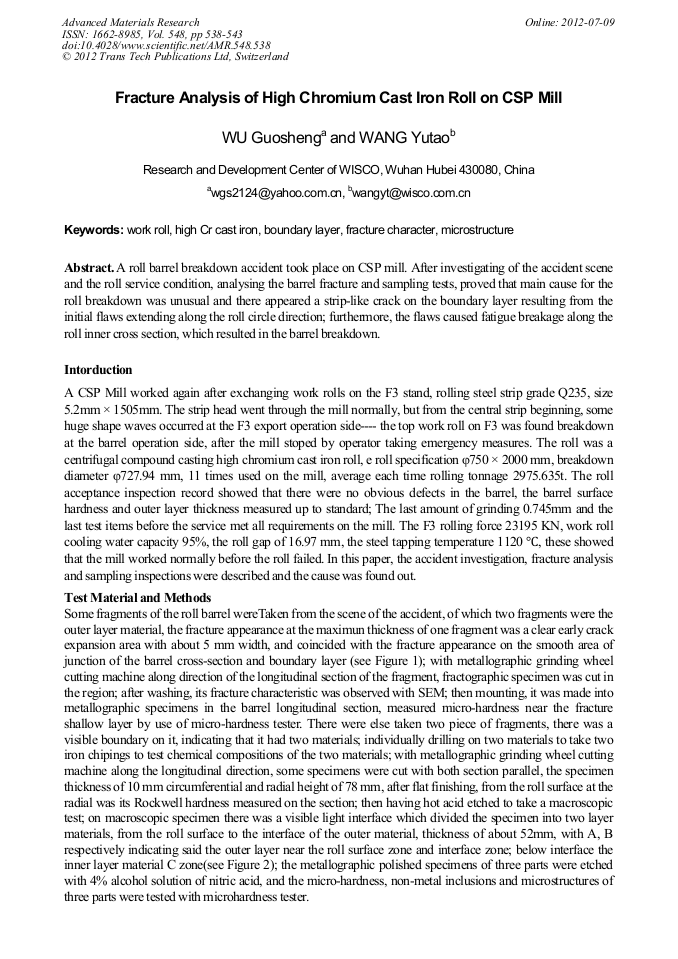

Fracture Analysis of High Chromium Cast Iron Roll on CSP Mill

Abstract:

A roll barrel breakdown accident took place on CSP mill. After investigating of the accident scene and the roll service condition, analysing the barrel fracture and sampling tests, proved that main cause for the roll breakdown was unusual and there appeared a strip-like crack on the boundary layer resulting from the initial flaws extending along the roll circle direction; furthermore, the flaws caused fatigue breakage along the roll inner cross section, which resulted in the barrel breakdown.
