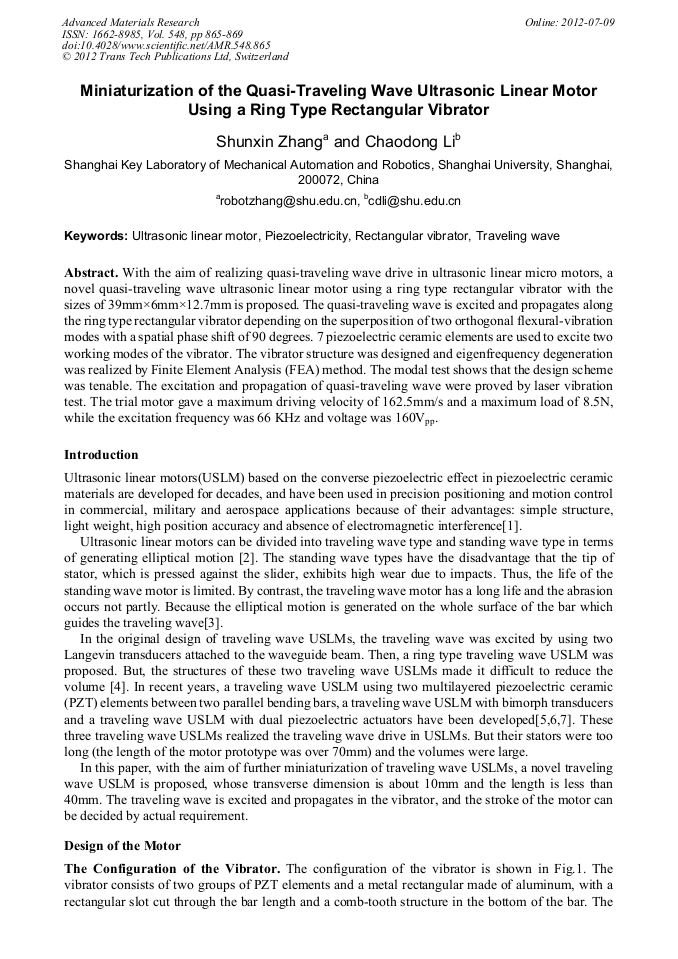

Miniaturization of the Quasi-Traveling Wave Ultrasonic Linear Motor Using a Ring Type Rectangular Vibrator

Abstract:

Ultrasonic linear motor, Piezoelectricity, Rectangular vibrator, Traveling wave Abstract. With the aim of realizing quasi-traveling wave drive in ultrasonic linear micro motors, a novel quasi-traveling wave ultrasonic linear motor using a ring type rectangular vibrator with the sizes of 39mm×6mm×12.7mm is proposed. The quasi-traveling wave is excited and propagates along the ring type rectangular vibrator depending on the superposition of two orthogonal flexural-vibration modes with a spatial phase shift of 90 degrees. 7 piezoelectric ceramic elements are used to excite two working modes of the vibrator. The vibrator structure was designed and eigenfrequency degeneration was realized by Finite Element Analysis (FEA) method. The modal test shows that the design scheme was tenable. The excitation and propagation of quasi-traveling wave were proved by laser vibration test. The trial motor gave a maximum driving velocity of 162.5mm/s and a maximum load of 8.5N, while the excitation frequency was 66 KHz and voltage was 160V_pp.

• Periodical: Advanced Materials Research (Volume 548)
• Pages: 865-869
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.548.865
• Online since: July 2012
• Authors: Shun Xin Zhang, Chao Dong Li
• Keywords: Piezoelectricity, Rectangular Vibrator, Traveling Wave, Ultrasonic Linear Motor

References

[1] C. Zhao: Ultrasonic Motors Technologies and Applications (Springer, Germany 2011).

[2] B. Watson, J. Friend, and L. Yeo: Piezoelectric Ultrasonic Micro / Milli-Scale Actuators, in: Sensors and Actuators A: Physical, Vol. A152 (2009), pp.219-233.

DOI: 10.1016/j.sna.2009.04.001

[3] W. Seemann: A linear ultrasonic traveling wave motor of the ring type, in: Smart Materials and Structures, vol. 5(1996), pp.361-368.

DOI: 10.1088/0964-1726/5/3/015

[4] S. Kondo, D. Koyama, and K. Nakamura: Miniaturization of traveling wave ultrasonic linear motor, in: Proceedings of Symposium on Ultrasonic Electronics, Vol. 30(2009), pp.109-110.

DOI: 10.1109/ultsym.2010.5936011

[5] S. Kondo, H. Yamaura, D. Koyama, and K. Nakamura: Traveling wave type ultrasonic linear motor using twin bending bars, in: Physics Procedia, Vol. 3(2010), pp.1053-1058.

DOI: 10.1016/j.phpro.2010.01.136

[6] S. Kondo, D. Koyama, and K. Nakamura: Miniaturization of traveling wave ultrasonic linear motor using bimorph transducers, in: Proceedings of 2010 IEEE International Ultrasonics Symposium (2010), pp.1482-1485.

DOI: 10.1109/ultsym.2010.5936011

[7] P. Suybangdum, P. Smithmaitrie, and P. Laoratanakul: Dual Piezoelectric Actuators for the Traveling Wave Ultrasonic Linear Motor, in: Proceedings of the 4th International Conference on Experimental Mechanics(2009).

DOI: 10.1117/12.851848

[8] B. Dehez, C. Vloebergh, and F. Labrique: Study and optimization of traveling wave generation in finite-length beams, in: Mathematics and Computers in Simulation, vol. 81(2010), pp.290-301.

DOI: 10.1016/j.matcom.2010.05.013

[9] C. Yun, B. Watson, and J. Friend: A piezoelectric ultrasonic linear micromotor using a slotted stator, in: IEEE Transactions on Ultrasonics, Ferroelectrics, and Frequency Control, Vol. 57(2010), pp.1868-1874.

DOI: 10.1109/tuffc.2010.1626
