The Effect of Bath Temperature on the Adhesive Strength and Bioactivity of TiO2 Nanotube Arrays

Xiu Feng Xiao; Hai Zhen Tang; Ke Guan Ouyang; Rong Fang Liu

doi:10.4028/www.scientific.net/AMR.549.724

Paper Titles

Electrical Degradation Induced Formations of Current Transients in Lead Zirconate Titanate
p.707

The Effect of Overheating Treatment on the Crystal Orientation of TbDyFe Alloy
p.711

Research on the Mechanical Properties of Cement Recycled Reclaimed Asphalt Pavement Mixture
p.715

XPS Spectra of Cu Thin Films Prepared by Ionized Cluster Beam Deposition
p.720

The Effect of Bath Temperature on the Adhesive Strength and Bioactivity of TiO₂ Nanotube Arrays
p.724

Mechanical and Rheological Properties of Compatibilized LDPE/Wood Flour Composites
p.729

Performance Study of Nano-TiO₂ Modified Fabric
p.733

Study on Wheat Straw Reinforced FGD Gypsum-Fly Ash Block
p.737

Study on the Properties of Physical and Chemical Foaming Concrete
p.741

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 549The Effect of Bath Temperature on the Adhesive...

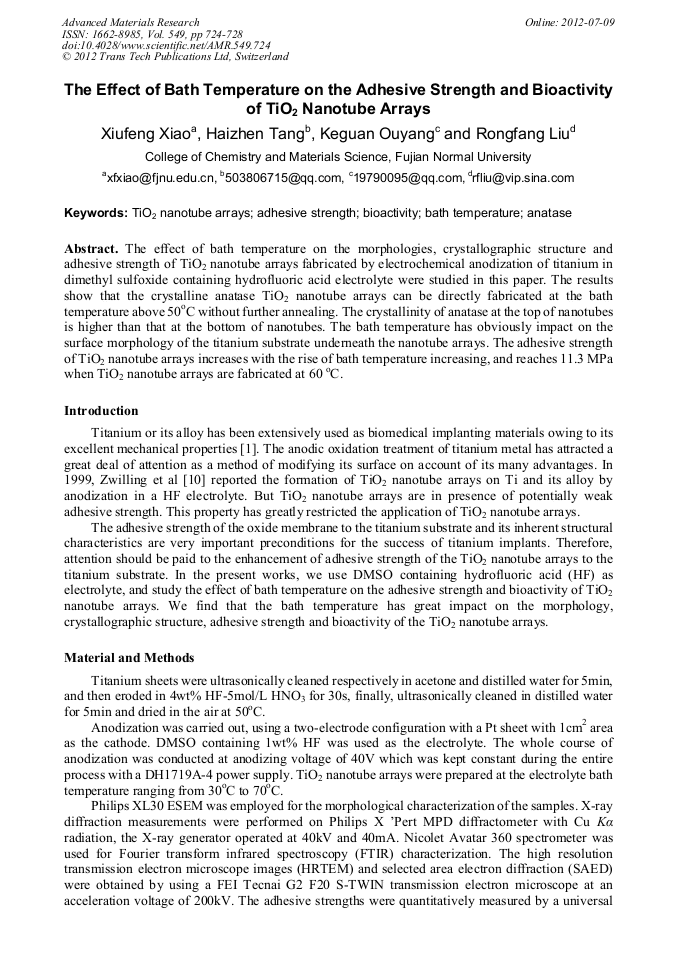

The Effect of Bath Temperature on the Adhesive Strength and Bioactivity of TiO₂ Nanotube Arrays

Abstract:

The effect of bath temperature on the morphologies, crystallographic structure and adhesive strength of TiO₂ nanotube arrays fabricated by electrochemical anodization of titanium in dimethyl sulfoxide containing hydrofluoric acid electrolyte were studied in this paper. The results show that the crystalline anatase TiO₂ nanotube arrays can be directly fabricated at the bath temperature above 50oC without further annealing. The crystallinity of anatase at the top of nanotubes is higher than that at the bottom of nanotubes. The bath temperature has obviously impact on the surface morphology of the titanium substrate underneath the nanotube arrays. The adhesive strength of TiO₂ nanotube arrays increases with the rise of bath temperature increasing, and reaches 11.3 MPa when TiO₂ nanotube arrays are fabricated at 60 oC.

You might also be interested in these eBooks

Chemical Engineering and Material Properties II

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 549)

Pages:

724-728

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.549.724

Citation:

Cite this paper

Online since:

July 2012

Authors:

Xiu Feng Xiao, Hai Zhen Tang, Ke Guan Ouyang, Rong Fang Liu

Keywords:

Adhesive Strength, Anatase, Bath Temperature, Bioactivity, TiO₂ Nanotube Array (TNAs)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] D.M. Brunette, P. Tengvall, M. Textor and P. Thomsen: Titanium in Medicine (Berlin, Springer, 2001).

Google Scholar

[2] V. Zwilling, E. Darque-Ceretti, A. Boutry-Forveille, D. David, M.Y. Perrin and M. Aucouturier: Surf. Interface Anal. Vol. 27(1999), p.629.

DOI: 10.1002/(sici)1096-9918(199907)27:7<629::aid-sia551>3.0.co;2-0

Google Scholar

[3] C.M. Ruan, M. Paulose, O.K. Varghese, G.K. Mor and C.A. Grimes: J. Phys. Chem. B Vol. 109(2005), p.15754.

Google Scholar

[4] X.F. Xiao, K.G. Ouyang, R.F. Liu and J.H. Liang: Appl. Surf. Sci. Vol. 255(2009), p.3659.

Google Scholar

[5] N.K. Allam, K. Shankar and C.A. Grimes: Adv. Mater. Vol. 20(2006), p.3942.

Google Scholar

[6] H.E. Prakasam, K. Shankar, M. Paulose, O.K. Varghese and C.A. Grimes: J. Phys. Chem. C Vol. 111(2007), p.7235.

Google Scholar

[7] D.I. Petukhov, A.A. Eliseev, I.V. Kolesnik, K.S. Napolskii, A.V. Lukashin, Y. D. Tretyakov, S.V. Grigoriev, N.A. Grigorieva and H. Eckerlebe: Microporous Mesoporous Mater. Vol. 114(2008), p.440.

DOI: 10.1016/j.micromeso.2008.01.033

Google Scholar

[8] M. Rieger, M. Mayberry and M.O. Bross: J. Prosthet. Dent. Vol. 63(1990), p.671.

Google Scholar
