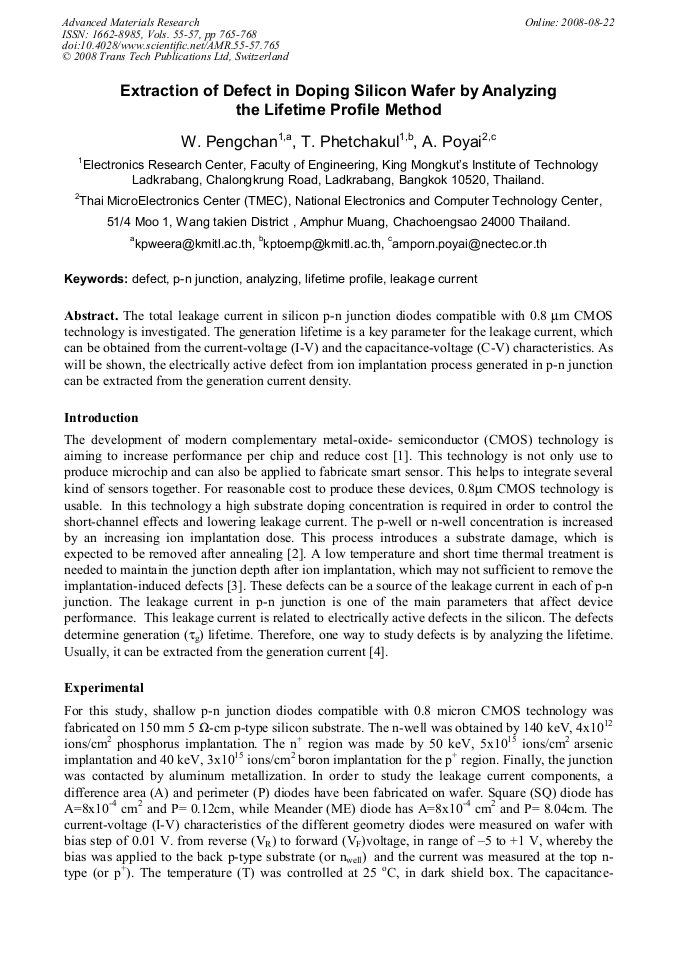

Extraction of Defect in Doping Silicon Wafer by Analyzing the Lifetime Profile Method

Abstract:

The total leakage current in silicon p-n junction diodes compatible with 0.8 µm CMOS technology is investigated. The generation lifetime is a key parameter for the leakage current, which can be obtained from the current-voltage (I-V) and the capacitance-voltage (C-V) characteristics. As will be shown, the electrically active defect from ion implantation process generated in p-n junction can be extracted from the generation current density.
