For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
The Photo-Catalytic Activity of Cu2+-Doped TiO2 and Applications in the Self-Cleaning Performance of Textile Wall Fabrics
p.1475
Relaxation Behaviors of Polystyrene during Physical Aging
p.1479
Actions of Temperature on the Structure and Properties of Hemp Fibre
p.1483
Study on the Isothermal Crystallization Kinetics of Polyvinyl Pyrrolidone/Polyamide 6 Blends
p.1487
The Preparation and Characterization of Electroless Copperplating Low- Temperature Expandable Graphite
p.1492
The Durability Analysis of Secondary Recycled Asphalt Mixture
p.1497
Preparation and Characterization of Ni-Modified Fe-Mo and Catalytic Selective Oxidation of p-Xylene
p.1501
The Preparation of Waterborne Sodium Bisulfite - Blocked Polyurethane Curing Agent
p.1505
Selection of Working Fluids for Low-Temperature Power Generation Organic Rankine Cycles System
p.1509

The Preparation and Characterization of Electroless Copperplating Low- Temperature Expandable Graphite

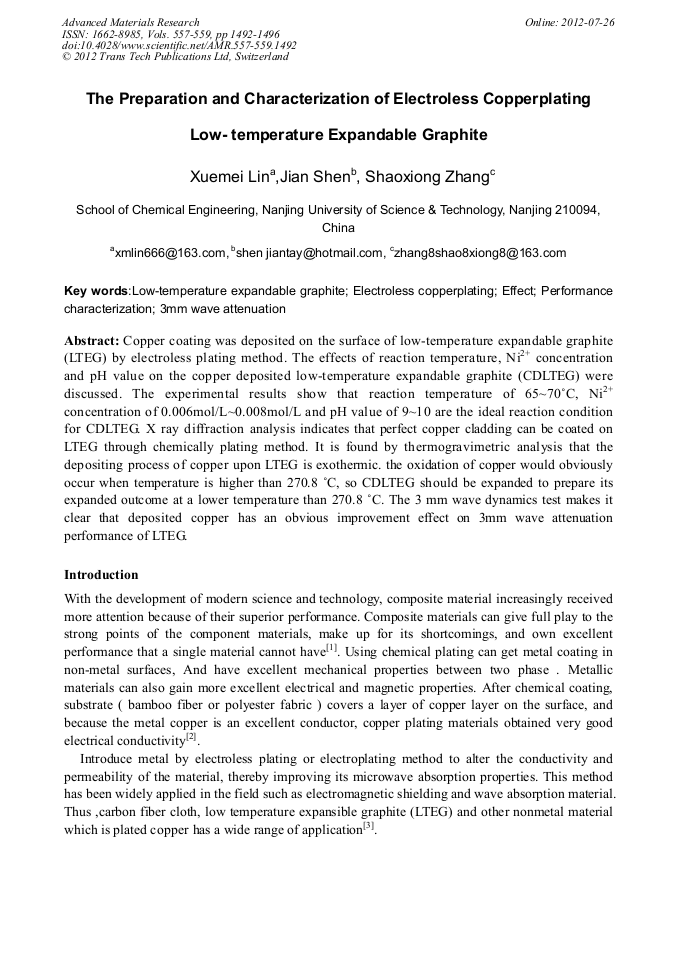

Article Preview

Abstract:

Copper coating was deposited on the surface of low-temperature expandable graphite (LTEG) by electroless plating method. The effects of reaction temperature, Ni2+ concentration and pH value on the copper deposited low-temperature expandable graphite (CDLTEG) were discussed. The experimental results show that reaction temperature of 65~70°C, Ni2+ concentration of 0.006mol/L~0.008mol/L and pH value of 9~10 are the ideal reaction condition for CDLTEG. X ray diffraction analysis indicates that perfect copper cladding can be coated on LTEG through chemically plating method. It is found by thermogravimetric analysis that the depositing process of copper upon LTEG is exothermic. the oxidation of copper would obviously occur when temperature is higher than 270.8 °C, so CDLTEG should be expanded to prepare its expanded outcome at a lower temperature than 270.8 °C. The 3 mm wave dynamics test makes it clear that deposited copper has an obvious improvement effect on 3mm wave attenuation performance of LTEG.

You might also be interested in these eBooks
Advanced Materials and Processes II View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 557-559)

Pages:

1492-1496

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.557-559.1492

Citation:

Cite this paper

Online since:

July 2012

Authors:

Xue Mei Lin, Jian Shen, Shao Xiong Zhang

Keywords:

3mm Wave Attenuation, Effect, Electroless Copperplating, Low Temperature Expandable Graphite, Performance Characterization

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] Tian Qinghua,Guo Xueyi. Plating and finishing(2007),In Chinese

Google Scholar

[2] Li Yan,Xiao Qinggui. Surface technology(2006) ,In Chinese

Google Scholar

[3] Yan Dong,Qi Lu. Synthetic fiber industry(2011) ,In Chinese

Google Scholar

[4] Ying Zhongrong, Lin Xuemei, Qi Yu, Luo Jie. Materials Research Bulletin(2008) ,In Chinese

Google Scholar

[5] Yang Fangzu,Yang Bin,Lu Binbin. Journal of physical chemistry(2006) ,In Chinese

Google Scholar

[6] Zhang Zihao,Guo Bingen,Zhang Yongqiang. Application of photoelectric technology(2007) ,In Chinese

Google Scholar

[7] Guan Hua,Pan Gongpei,Jian Li. Journal of infrared and millimeter(2004) ,In Chinese

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
