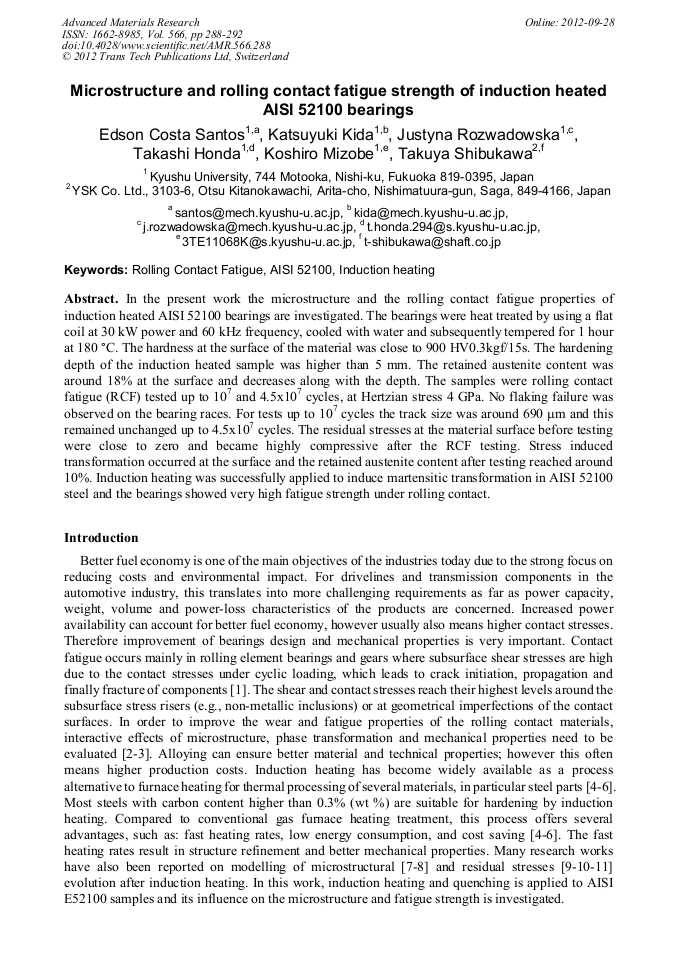

Microstructure and Rolling Contact Fatigue Strength of Induction Heated AISI 52100 Bearings

Abstract:

In the present work the microstructure and the rolling contact fatigue properties of induction heated AISI 52100 bearings are investigated. The bearings were heat treated by using a flat coil at 30 kW power and 60 kHz frequency, cooled with water and subsequently tempered for 1 hour at 180 °C. The hardness at the surface of the material was close to 900 HV0.3kgf/15s. The hardening depth of the induction heated sample was higher than 5 mm. The retained austenite content was around 18% at the surface and decreases along with the depth. The samples were rolling contact fatigue (RCF) tested up to 107 and 4.5x107 cycles, at Hertzian stress 4 GPa. No flaking failure was observed on the bearing races. For tests up to 107 cycles the track size was around 690 um and this remained unchanged up to 4.5x107 cycles. The residual stresses at the material surface before testing were close to zero and became highly compressive after the RCF testing. Stress induced transformation occurred at the surface and the retained austenite content after testing reached around 10%. Induction heating was successfully applied to induce martensitic transformation in AISI 52100 steel and the bearings showed very high fatigue strength under rolling contact.

• Periodical: Advanced Materials Research (Volume 566)
• Pages: 288-292
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.566.288
• Online since: September 2012
• Authors: Edson Costa Santos, Katsuyuki Kida, Justyna Rozwadowska, Takashi Honda, Koshiro Mizobe, Takuya Shibukawa
• Keywords: AISI 52100, Induction Heating (IH), Rolling Contact Fatigue (RCF)

References

[1] Kida, K., Yamazaki, T., Shibata, M., Oguma, N. and Harada, H., Crack initiation from micro surface holes in bearings under rolling contact fatigue, Fatigue & Fracture of Engineering Materials and Structures, Blackwell Publishing, 27, 481-493 (2004).

DOI: 10.1111/j.1460-2695.2004.00771.x

[2] Johnson, K. L., Contact Mechanics, Cambridge University Press, 90 – 99 (1992).

[3] Harris, T.A., Kotzalas, M.N., Essential Concepts of Bearings Technology, fifth edition, CRC press, 101-133 (2007).

[4] Haimbaugh, R.E., Practical Induction Heating, ASM International (2001).

[5] Zinn, S., Semiatin, S.L., Elements of Induction Heating, ASM International (1988).

[6] Rudnev, V., Loveless, D., Cook, R., Black, M., Handbook of Induction Heating, Marcel Dekker, Inc. (2003).

[7] Yang, B.J., Hattiangadi, A., Li, W.Z., Zhou, G.F., McGreevy, T.E., Simulation of Steel Microstructure Evolution during Induction Heating, Materials Science and Engineering A, 527, 2978-2984, Elsevier, (2010).

DOI: 10.1016/j.msea.2010.01.038

[8] Magnabosco, I., Ferro, P., Tiziani, A., Bonollo, F., Induction Heat Tretament of a Iso C45 Steel Bar: Experimental and Numerical Analysis, Computational Materials Science, 35, 98-106, Elsevier (2006).

DOI: 10.1016/j.commatsci.2005.03.010

[9] Palin-Luc, T., Coupard, D., Dumas, C., Bristiel, P., Simulation of Multiaxial Fatigue Strength of Steel Components treated by surface induction hardening and comparison with experimental results, International Journal of Fatigue, 33, 1040-1047, Elsevier, (2011).

DOI: 10.1016/j.ijfatigue.2011.02.004

[10] Coupard, D., Palin-Luc, T., Bristiel, P., Ji, V., Dumas, C., Residual Stress in Surface Induction Hardening of Steels: Comparison between experiment and simulation, Materials Science and Engineering A, 487, 328-339, Elsevier, (2008).

DOI: 10.1016/j.msea.2007.10.047

[11] Kim, W. -B., Na, S. -J., A study on Residual Stresses in Surace Hardening by High Frequency Induction Heating, Surface and Coatings Technology, 52, 281-288, Elsevier (1992).

DOI: 10.1016/0257-8972(92)90027-8
