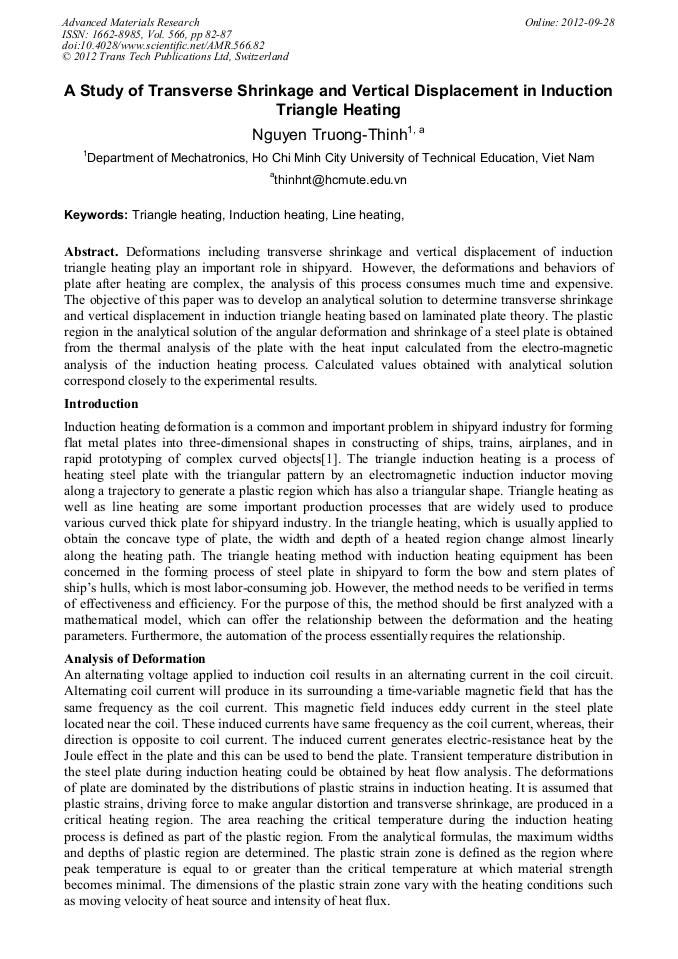

A Study of Transverse Shrinkage and Vertical Displacement in Induction Triangle Heating

Abstract:

Deformations including transverse shrinkage and vertical displacement of induction triangle heating play an important role in shipyard. However, the deformations and behaviors of plate after heating are complex, the analysis of this process consumes much time and expensive. The objective of this paper was to develop an analytical solution to determine transverse shrinkage and vertical displacement in induction triangle heating based on laminated plate theory. The plastic region in the analytical solution of the angular deformation and shrinkage of a steel plate is obtained from the thermal analysis of the plate with the heat input calculated from the electro-magnetic analysis of the induction heating process. Calculated values obtained with analytical solution correspond closely to the experimental results.

• Periodical: Advanced Materials Research (Volume 566)
• Pages: 82-87
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.566.82
• Online since: September 2012
• Authors: Thinh Nguyen Truong
• Keywords: Induction Heating (IH), Line Heating, Triangle Heating

References

[1] J.G. Shin, C.H. Ryu, J.H. Lee and W.D. Kim, A User-friendly, Advanced Line heating automation for Accurate plate Fabrication, Journal of ship Production, Vol. 19, No. 1, pp.8-15, (2003).

DOI: 10.5957/jsp.2003.19.1.8

[2] Truong-Thinh Nguyen, Young-Soo Yang, K-Y Bae and S-N Choi, 2009, Prediction of Deformations of Steel Plate by Artificial Neural Network in Forming Process with Induction Heating, Journal of Mechanical Science and Technology, Vol. 23 p.1211~1221.

DOI: 10.1007/s12206-009-0101-5

[3] Truong-Thinh Nguyen, Young-Soo Yang and Kang-Yul Bae, 2009, The development of an artificial neural network model to predict heating-line positions for plate forming in induction heating process, Mechanics Based Design of Structures and Machines An International Journal, Vol. 37. No. 2 p.201.

DOI: 10.1080/15397730902769356

[4] Nguyen Truong-Thinh, Young-Soo Yang, Kang-Yul Bae, 2009, Analysis of bending deformation in triangle heating of steel plate with induction heating process using the laminated plate theory, Mechanics Based Design of Structures and Machines An International Journal, Vol. 37. No. 2 p.228.

DOI: 10.1080/15397730902769364
