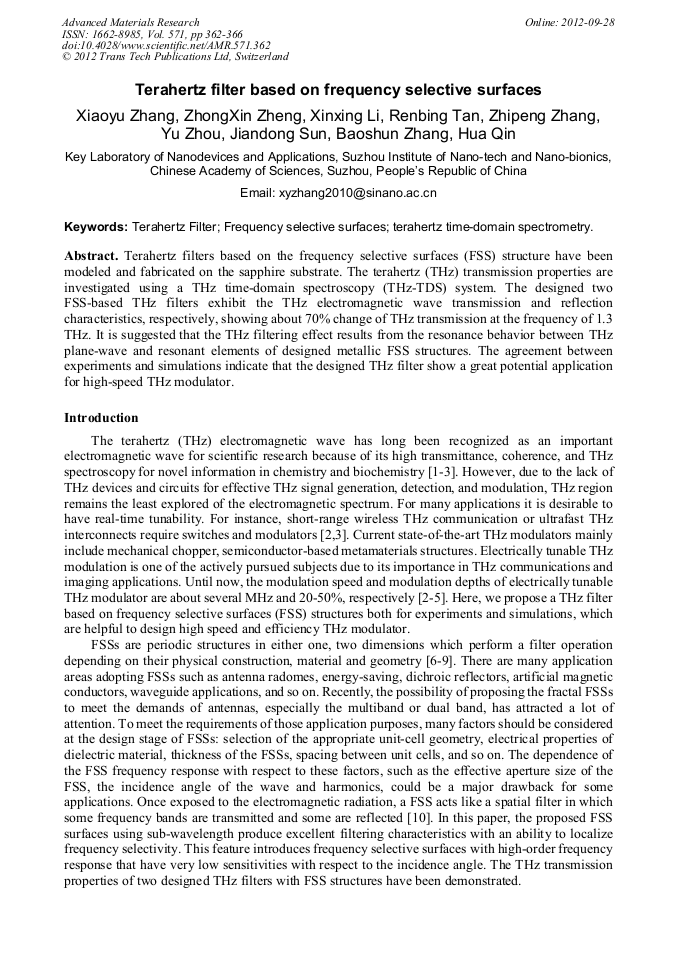

Terahertz Filter Based on Frequency Selective Surfaces

Abstract:

Terahertz filters based on the frequency selective surfaces (FSS) structure have been modeled and fabricated on the sapphire substrate. The terahertz (THz) transmission properties are investigated using a THz time-domain spectroscopy (THz-TDS) system. The designed two FSS-based THz filters exhibit the THz electromagnetic wave transmission and reflection characteristics, respectively, showing about 70% change of THz transmission at the frequency of 1.3 THz. It is suggested that the THz filtering effect results from the resonance behavior between THz plane-wave and resonant elements of designed metallic FSS structures. The agreement between experiments and simulations indicate that the designed THz filter show a great potential application for high-speed THz modulator.

• Periodical: Advanced Materials Research (Volume 571)
• Pages: 362-366
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.571.362
• Online since: September 2012
• Authors: Xiao Yu Zhang, Zhong Xin Zheng, Xin Xing Li, Ren Bing Tan, Zhi Peng Zhang, Yu Zhou, Jian Dong Sun, Bao Shun Zhang, Hua Qin
• Keywords: Frequency Selective Surfaces, Terahertz Filter, Terahertz Time-Domain Spectrometry

References

[1] C. C. Chen, Transmission Through a Conducting ScreenPerforated Periodically with Apertures, IEEE Transactions on Microwave Theiry and Techiques, vol. MTT-18, 1970, pp.627-632.

DOI: 10.1109/tmtt.1970.1127298

[2] D. Mittleman, A Terahertz Modulator, Nature, vol. 444 Nov. 2006 pp.560-561, doi: 10. 1038/444560a.

[3] H. T. Chen, W. J. Padilla, J. M. O. Zide, A. C. Gossard, A. J. Taylor, R. D. Averitt, Active Terahertz Metamaterial Devices, Nature, vol. 444, Nov. 2006, pp.597-600, doi: 10. 1038/nature05343.

DOI: 10.1038/nature05343

[4] T. Kleine-Ostmann, P. Dawson, K. Pierz, G. Hein, and M. Koch Room-temperature operation of an electrically driven terahertz modulator, Applied Physics Letters, vol. 84, Apr. 2004, pp.3555-3557, doi: 10. 1063/1. 1723689.

DOI: 10.1063/1.1723689

[5] Hyung Keun Yoo, Chul Kang, Youngwoon Yoon, Hanju Lee, Joong Wook Lee et al. Organic conjugated material-based broadband terahertz wave modulators, Applied Physics Letters, vol. 99, Aug. 2011, p.061108, doi. org/10. 1063/1. 3626591.

DOI: 10.1063/1.3626591

[6] D. H. Kim and J. I. Choi, Design of a Multiband Frequency Selective Surface, ETRI Journal, vol. 28, Aug. 2006, pp.506-508.

DOI: 10.4218/etrij.06.0205.0123

[7] R. T. Kristensen, J. F. Beausang and D. M. DePoy, Frequency selective surfaces as near-infrared electromagnetic filters for thermophotovoltaic spectral control, Journal of Applied Physics, vol. 95, Feb. 2004, pp.4845-4851.

DOI: 10.1063/1.1688991

[8] F. M. Mishrikey, C. Hafner, R. Vahldieck, Analysis of multilayer frequency selective surfaces on periodic and anisotropic substrates, Metamaterials, vol. 3 (2009) 63.

DOI: 10.1016/j.metmat.2009.04.001

[9] Z. Liao, T. Wang, Y. Nie, X. Wang, and R. Gong, Numerical study on a designable linear-resonant multiband single-layer fractal frequency-selective surface, Physical Review E, vol. 82, Jul. 2010, p.016603, doi: 10. 1103/PhysRevE. 82. 016603.

DOI: 10.1103/physreve.82.016603

[10] C. Debus and P. H. Bolivar Frequency selective surfaces for high sensitivity terahertz sensing, Applied Physics Letters, vol. 91, Otc. 2007, p.184102, doi: 10. 1063/1. 2805016.

DOI: 10.1063/1.2805016

[11] Farhad Bayatpur Metamaterial-Inspired Frequency-Selective Surfaces, Degree of Doctor of Philosophy (Electrical Engineering) in The University of Michigan, 2009, pp.69-70.
