Composite Coating on Steel Surfaces by Adding TiC and h-BN Particulates under TIG Torch Melting

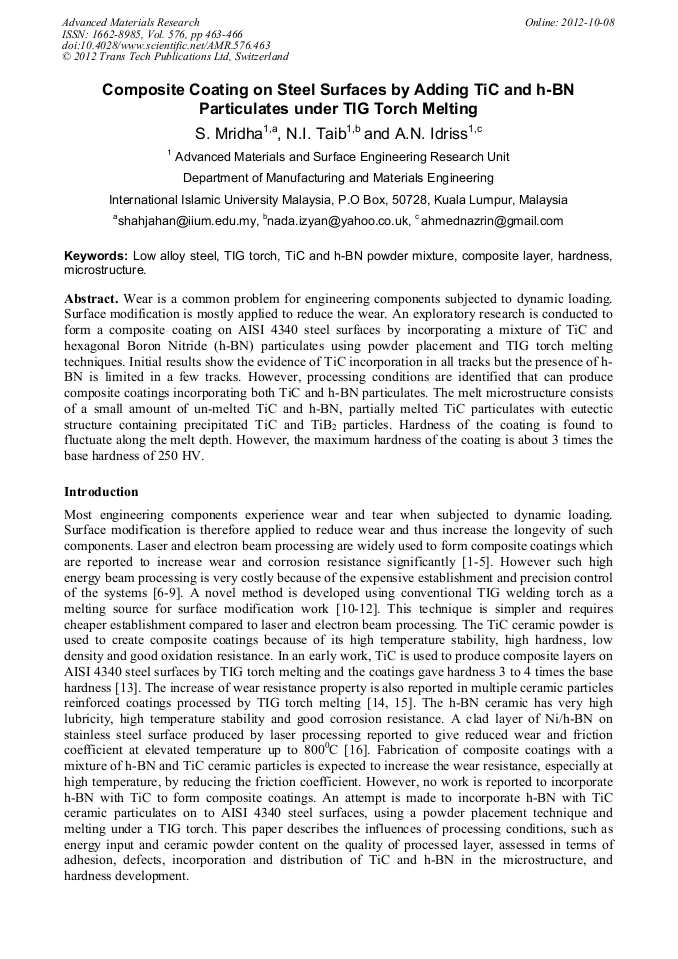

Article Preview

Abstract:

Wear is a common problem for engineering components subjected to dynamic loading. Surface modification is mostly applied to reduce the wear. An exploratory research is conducted to form a composite coating on AISI 4340 steel surfaces by incorporating a mixture of TiC and hexagonal Boron Nitride (h-BN) particulates using powder placement and TIG torch melting techniques. Initial results show the evidence of TiC incorporation in all tracks but the presence of h-BN is limited in a few tracks. However, processing conditions are identified that can produce composite coatings incorporating both TiC and h-BN particulates. The melt microstructure consists of a small amount of un-melted TiC and h-BN, partially melted TiC particulates with eutectic structure containing precipitated TiC and TiB2 particles. Hardness of the coating is found to fluctuate along the melt depth. However, the maximum hardness of the coating is about 3 times the base hardness of 250 HV.

You might also be interested in these eBooks

Advances in Manufacturing and Materials Engineering (ICAMME)

Info:

Periodical:

Advanced Materials Research (Volume 576)

Pages:

463-466

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.576.463

Citation:

Cite this paper

Online since:

October 2012

Authors:

S. Mridha, N.I. Taib, A.N. Idriss

Keywords:

Composite Layer, Hardness, h-BN Powder Mixture, Low Alloy Steel, Microstructure, TiC, TIG Torch

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] J. H. Abboud and D.R.F. West, J. of Mater. Sci. Lett., 10(19) (1991) 1149.

[2] S. Mridha and T.N. Baker, J. of Mater. Proc. Technol., 185(1-3) (2007) 38.

[3] M. J. Chao et al., Surf. and Coat. Technol., 202(10) (2008) 1918-(1922).

[4] X. H. Wang et al., Surf. and Coat. Technol., 202(15) (2008) 3600.

[5] H. -g.L. Kai-jin Huang and Z. Chang-rong, Adv. Mater. Res. 179-180 (2011) 757.

[6] C. Pfohl and K. T. Rie, Surf. and Coat. Technol., l16-119 (1999) 911.

[7] X, Lifang, M. Xinxin and S. Yue, Wear, 246 No. 1-2 (2000) 40.

[8] W. Liang and X. G. Zao, Scripta Materialia, 44 (2002), 1049.

[9] J. Oh and S. Lee, Surf. and Coat. Technol., 179 (2004) 340.

[10] S. Mridha H.S. Ong, L. S. Poh and P. Cheang, J. of Mater. Proc. Technol., 113 (2001) 516.

[11] S. Baytozo M. Uthan and M. Mustafa, Appl. Surf. Sci., 252 (2005) 1313.

[12] D. Wenbin, J. Haiyan, Z. Xiaoqin, L. Dehui, and Y. Shoushan, J. of Alloy and Compounds, 429 (2007) 233.

DOI: 10.1016/j.jallcom.2006.03.083

[13] S. Mridha, A. N Md ldriss, and T.N. Baker. Adv. Mater. Res., 445 (2012) 655.

[14] X.H. Wang, M. Zhang and B.S. Du, Tribol. Lett., 41 (2011) 171-176.

[15] S.O. Yilmaz and M. Ozenbas, J. Mater. Sci., 44 (2009) 3273-3284.

[16] S. Zhang, J. Zhou, B. Guo, H. Zhou, Y. Pu, J. Chen, Mater. Sci. Eng.: A, 491(1–2) 2008 47.

[17] S. Mridha and B. S. Ng, Surf. Engineering, 15 (1999) 210.

[18] S. Dyuti, S. Mridha and S.K. Shaha, Adv. Mat. Res. 264-265 (2011) 1427.

[19] T. N. Baker, H. Xin, C. Hu, and S. Mridha, Mater. Sci. and Technol., 10 (1994) 536.

[20] Wang X.H., Zhang M., Liu X.M., Qu S.Y., Zou Z.D., Surf. and Coat. Technol., 202(15) (2008) 3600-3606.

[21] Li M.W., Jun B. L and Chi Y., Mater. Sci. Forum, 675-677 (2011) 783-787.

[22] S. Mridha, J. of Mater. Proc. Technol., 168 (2005) 471-477.

[23] G.R.C. Pradeep, A. Ramesh and B. Durga Prasad, Int. J. of Eng. Sci. and Technol., 2(11) (2010) 6507-6510.

[24] S. Dyuti, Hard coating layer formation on plain carbon steel surfaces by powder preplacement and TIG Torch melting techniques, M. Sc. thesis, IIUM, (2010).
