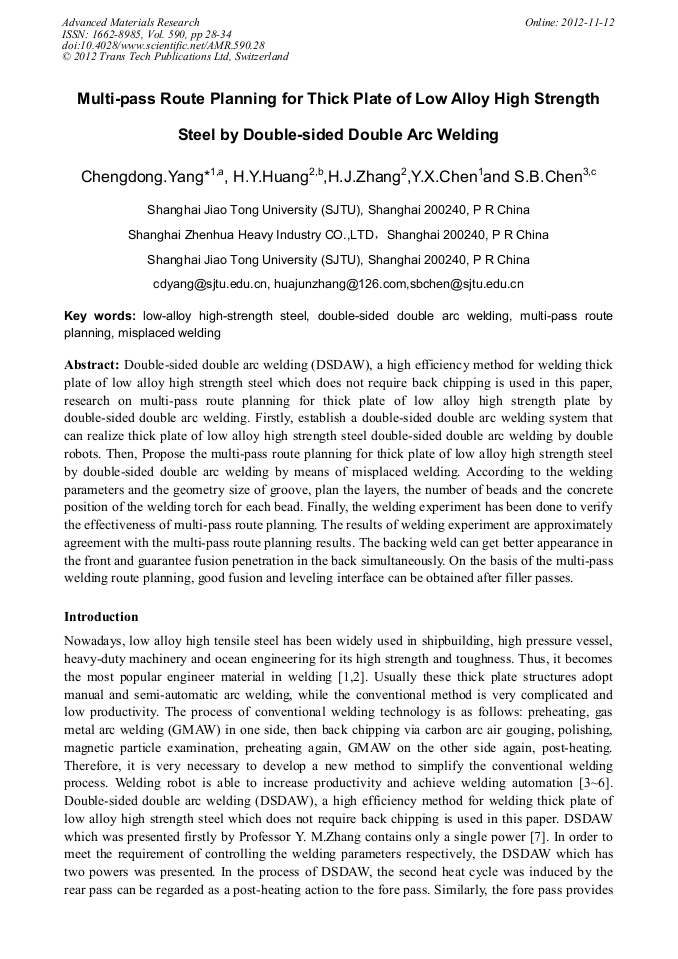

Multi-Pass Route Planning for Thick Plate of Low Alloy High Strength Steel by Double-Sided Double Arc Welding

Abstract:

Double-sided double arc welding (DSDAW), a high efficiency method for welding thick plate of low alloy high strength steel which does not require back chipping is used in this paper, research on multi-pass route planning for thick plate of low alloy high strength plate by double-sided double arc welding. Firstly, establish a double-sided double arc welding system that can realize thick plate of low alloy high strength steel double-sided double arc welding by double robots. Then, Propose the multi-pass route planning for thick plate of low alloy high strength steel by double-sided double arc welding by means of misplaced welding. According to the welding parameters and the geometry size of groove, plan the layers, the number of beads and the concrete position of the welding torch for each bead. Finally, the welding experiment has been done to verify the effectiveness of multi-pass route planning. The results of welding experiment are approximately agreement with the multi-pass route planning results. The backing weld can get better appearance in the front and guarantee fusion penetration in the back simultaneously. On the basis of the multi-pass welding route planning, good fusion and leveling interface can be obtained after filler passes.

• Periodical: Advanced Materials Research (Volume 590)
• Pages: 28-34
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.590.28
• Online since: November 2012
• Authors: Cheng Dong Yang, H.Y. Huang, H.J. Zhang, Y.X. Chen, San Ben Chen
• Keywords: Double-Sided Double Arc Welding, Low-Alloy High-Strength Steel, Misplaced Welding, Multi-Pass Route Planning

References

[1] Li Yajiang. welding of high strength steel, Metallurgical Industry Press. Beijing, (2010).

[2] Zou Zengda, Li Yajiang, Yin Shike. welding and engineering application of low alloy high strength steel, Chemical Industry Press. Beijing, (2000).

[3] Trailer, Manufacturer Depends on Robotic Welding to Boast Production, Welding Journal, 1995, 74(7): 49-51.

[4] West Carrillton, Robot Assure Quality for Auto Seat Manufacturer, Welding Journal. 1995, 74 (8): 57-59.

[5] Zhang Hua, Pan Jiluan, Liao Baojian. Real-time measurement of welding temperature field and close-loop control of penetration. Transactions of the China Welding Institution, 1998, 19(3): 176-183.

[6] P. Prews, G. Starke, Welding in the Century of Information Technology. Advanced Techniques and Low Cost Automation, Proceedings of the '97 International Institute of Welding, BEIJING, 1994, International Academic Publishers, 1994, 3-22.

[7] Zhang, Y. M., and Zhang, S. B., 1999, Welding Aluminum Alloy 6061 With the Opposing Dual-Torch GTAW Process, Welding Research Supplement, 6, p.202–206.

[8] H.J. ZHANG, G.J. ZHANG, H.M. GAO, L. WU. Numerical simulation of three dimension stress field in double-sided double arc multipass welding process. Materials Science and Engineering-A. 2009, 499(15): 309~314.

DOI: 10.1016/j.msea.2007.10.119

[9] H.J. ZHANG, G.J. ZHANG, L. WU. Effects of arc distance on angular distortion by asymmetrical double sided arc welding. Science and Technology of Welding&Joining, 2007, 12(6): 564~571.

DOI: 10.1179/174329307x227265

[10] H.J. ZHANG, G.J. ZHANG, H.M. GAO, L. WU. Fundamental studies on in-process controlling angular distortion in asymmetrical double-sided double arc welding. Journal of Materials Processing Technology. 2008, 205(26): 214~223.

DOI: 10.1016/j.jmatprotec.2007.11.116

[11] H.J. ZHANG, G.J. ZHANG, H.M. GAO, L. WU. The realization of low stress and non-angular distortion by double-sided double arc welding. Journal of Manufacturing Science and Engineering(Transactions of the ASME). 2009. 131(4): 1-6.

DOI: 10.1115/1.3070512

[12] Isao M, et al. A program for setting CO2 horizontal fillet welding parameters with given leg lengths and welding speed [J ]. Journal of the Japan Welding Society, 1979, 48(7) : 94～98.
