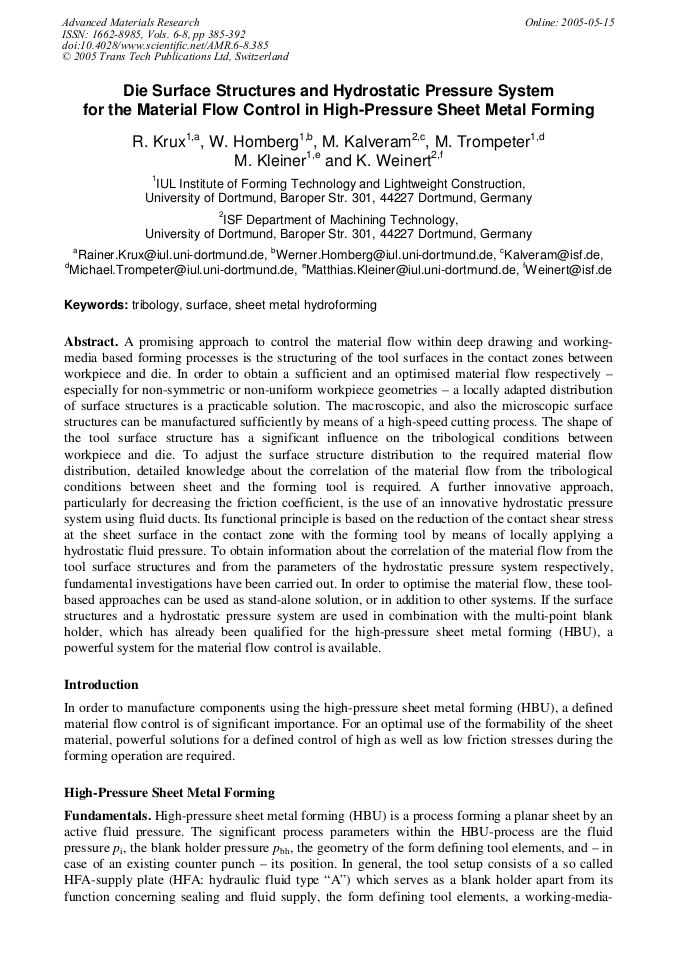

Die Surface Structures and Hydrostatic Pressure System for the Material Flow Control in High-Pressure Sheet Metal Forming

Abstract:

A promising approach to control the material flow within deep drawing and workingmedia based forming processes is the structuring of the tool surfaces in the contact zones between workpiece and die. In order to obtain a sufficient and an optimised material flow respectively – especially for non-symmetric or non-uniform workpiece geometries – a locally adapted distribution of surface structures is a practicable solution. The macroscopic, and also the microscopic surface structures can be manufactured sufficiently by means of a high-speed cutting process. The shape of the tool surface structure has a significant influence on the tribological conditions between workpiece and die. To adjust the surface structure distribution to the required material flow distribution, detailed knowledge about the correlation of the material flow from the tribological conditions between sheet and the forming tool is required. A further innovative approach, particularly for decreasing the friction coefficient, is the use of an innovative hydrostatic pressure system using fluid ducts. Its functional principle is based on the reduction of the contact shear stress at the sheet surface in the contact zone with the forming tool by means of locally applying a hydrostatic fluid pressure. To obtain information about the correlation of the material flow from the tool surface structures and from the parameters of the hydrostatic pressure system respectively, fundamental investigations have been carried out. In order to optimise the material flow, these toolbased approaches can be used as stand-alone solution, or in addition to other systems. If the surface structures and a hydrostatic pressure system are used in combination with the multi-point blank holder, which has already been qualified for the high-pressure sheet metal forming (HBU), a powerful system for the material flow control is available.

• Periodical: Advanced Materials Research (Volumes 6-8)
• Pages: 385-392
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.6-8.385
• Online since: May 2005
• Authors: Rainer Krux, Werner Homberg, M. Kalveram, Michael Trompeter, Matthias Kleiner, Klaus Weinert
• Keywords: Sheet Metal Hydroforming, Surface, Tribology

References

[1] M. Kleiner, W. Homberg, A. Brosius: Processes and Control of Sheet Metal Hydroforming. In: Geiger, M. (ed. ): Advanced Technology of Plasticity, Proc. 6th ICTP, Nuremberg (Germany), 1999, Sept. 19-24, Springer-Verlag, Berlin, 1999, pp.1243-1252.

[2] W. Homberg: Investigations on the Process Control and on the Manufacturing System of the High-Pressure Sheet Metal Forming. Dissertation (in German), IUL, University of Dortmund, (2000).

[3] R. Krux: Manufacturing of Property-Optimised Components Using the High-Pressure Sheet Metal Forming and Analysis of the Induced Residual Stresses. Dissertation (in German), IUL, University of Dortmund, (2003).

[4] M. Kleiner, R. Krux, W. Homberg: Analysis of Residual Stresses in High-Pressure Sheet Metal Forming. Annals of the CIRP, Vol. 53/1/2004, pp.211-214.

DOI: 10.1016/s0007-8506(07)60681-7

[5] I. Grabec, J. Gradisěk, E. Govekar, K. Weinert, M. Kalveram, J. Mehnen: Analysis of HighSpeed Milling Dynamics - Chatter vs. Chatter-Free Cutting. Proc. 3rd Int. Symposium Investigation of Nonlinear Dynamic Effects in Production Systems, Ch. 21, 26. -27. Sept. 2000, TU-Cottbus.

[6] T. Neudecker, U. Popp, T. Schraml, U. Engel, M. Geiger: Towards Optimized Lubrication by Micro Texturing of Tool Surfaces. In: Geiger, M. (ed. ): Advanced Technology of Plasticity, Proc. 6 th ICTP, Nuremberg (Germany), 1999, Sept. 19-24, Springer-Verlag, Berlin, 1999, pp.619-626.

[7] M. Geiger, U. Popp, U. Engel: Excimer Laser Micro Texturing of Cold Forging Tool Surfaces - Influence on Tool Life. Annals of the CIRP, Vol. 51/1/2002, pp.231-234.

DOI: 10.1016/s0007-8506(07)61506-6

[8] A. Hoppermann: Laserstrukturierte Kontaktflächen. Ölhydraulik und Pneumatik, (2004) 10, pp.630-634.

[9] M. Kleiner, K. Weinert, R. Krux, M. Kalveram: Oberflächenstrukturen für Blechumformwerkzeuge - Einfluss spanend hergestellter Werkzeug-Oberflächenstrukturen auf die tribologischen Verhältnisse. WT Werkstattstechnik online 93 (2003) 10, pp.665-670.

DOI: 10.37544/1436-4980-2003-10-665

[10] A. Azushima, M. Yamamiya, Kudo, H.: Investigation of Factors Affecting the Coefficient of Friction and Surface Properties with a Sheet Drawing Test. Annals of the CIRP, Vol. 41/1/1992, pp.259-262.

DOI: 10.1016/s0007-8506(07)61199-8
