Ship Synchronized Phasor Measurement Method Based on TTCAN

Abstract:

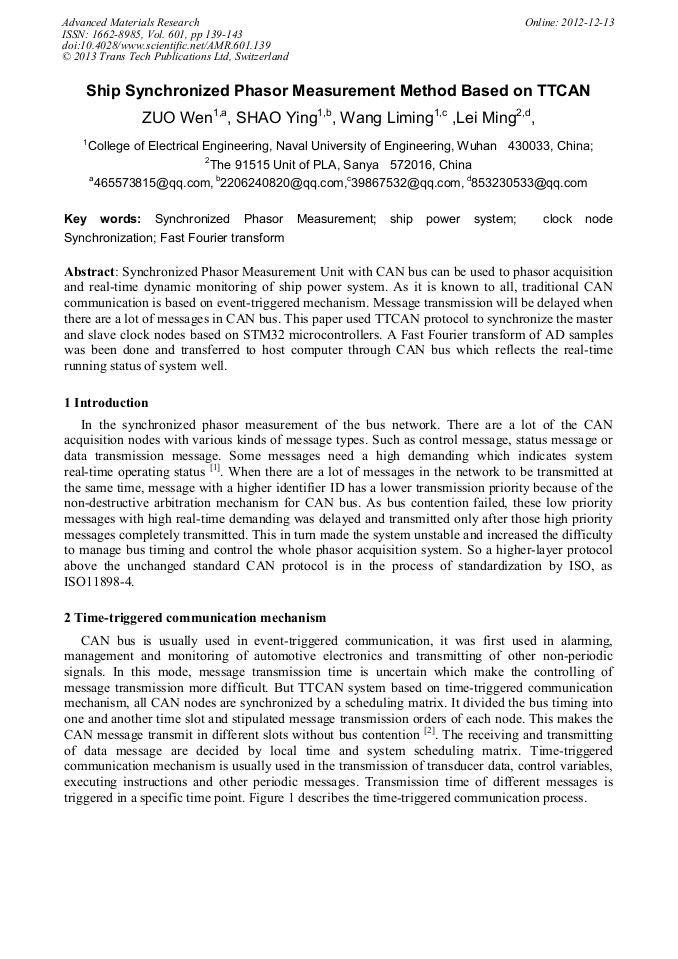

Synchronized Phasor Measurement Unit with CAN bus can be used to phasor acquisition and real-time dynamic monitoring of ship power system. As it is known to all, traditional CAN communication is based on event-triggered mechanism. Message transmission will be delayed when there are a lot of messages in CAN bus. This paper used TTCAN protocol to synchronize the master and slave clock nodes based on STM32 microcontrollers. A Fast Fourier transform of AD samples was been done and transferred to host computer through CAN bus which reflects the real-time running status of system well.
