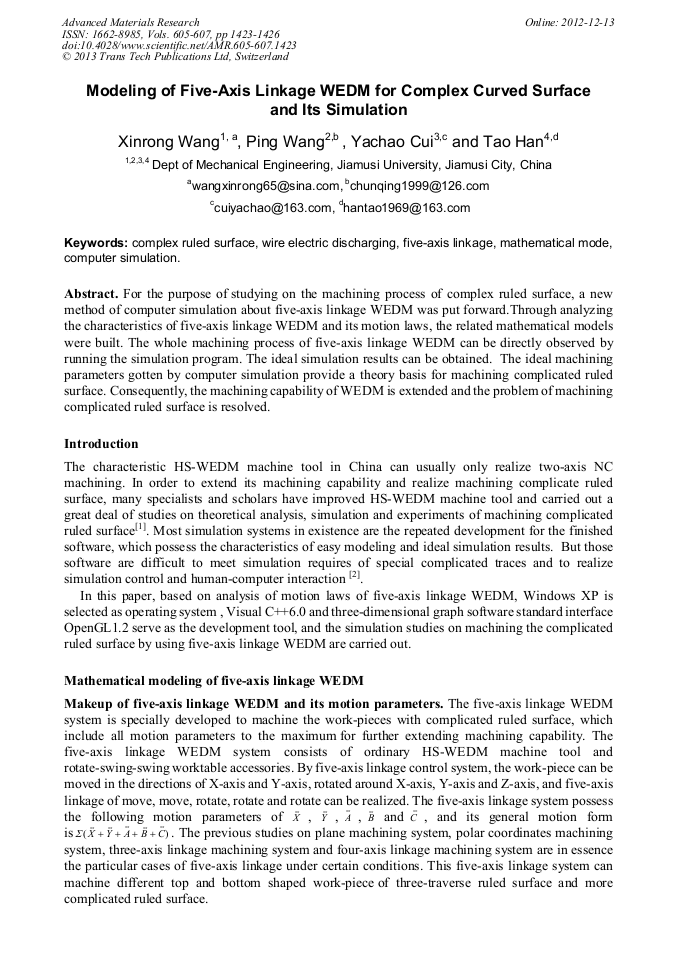

Modeling of Five-Axis Linkage WEDM for Complex Curved Surface and its Simulation

Abstract:

For the purpose of studying on the machining process of complex ruled surface, a new method of computer simulation about five-axis linkage WEDM was put forward.Through analyzing the characteristics of five-axis linkage WEDM and its motion laws, the related mathematical models were built. The whole machining process of five-axis linkage WEDM can be directly observed by running the simulation program. The ideal simulation results can be obtained. The ideal machining parameters gotten by computer simulation provide a theory basis for machining complicated ruled surface. Consequently, the machining capability of WEDM is extended and the problem of machining complicated ruled surface is resolved.

• Periodical: Advanced Materials Research (Volumes 605-607)
• Pages: 1423-1426
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.605-607.1423
• Online since: December 2012
• Authors: Xin Rong Wang, Ping Wang, Ya Chao Cui, Tao Han
• Keywords: Complex Ruled Surface, Computer Simulation, Five-Axis Linkage, Mathematical Mode, Wire Electric Discharge Cutting (WEDM)

References

[1] Ren Fujun. Study on computer simulation of WEDM of ruled surface by and EDM by rotary electrode. Harbin Institute of Technology (1999).

[2] Du Desheng. Analysis of motion of three-axis linkage WEDM and its simulation. Journal of Harbin University of Science and Technology. Vol. 13 (2008), pp.113-116.

[3] Guo Zhaorong, Li Lei and Wang Yan. Application program development of Visual C++ OpenGL[M]. Beijing: Peoples Posts and Telecom Press (2006), pp.31-89.

[4] Wang Dianjun. Simulation of machining spacial surface by multi-axis WEDM. Journal of Qinghua University[J], 2008, 48(5): pp.796-799.

[5] Wang Xinrong. Study on kinematics of multi-axis linkage WEDM and its application[D], Harbin: Harbin Engineering University (2000).
