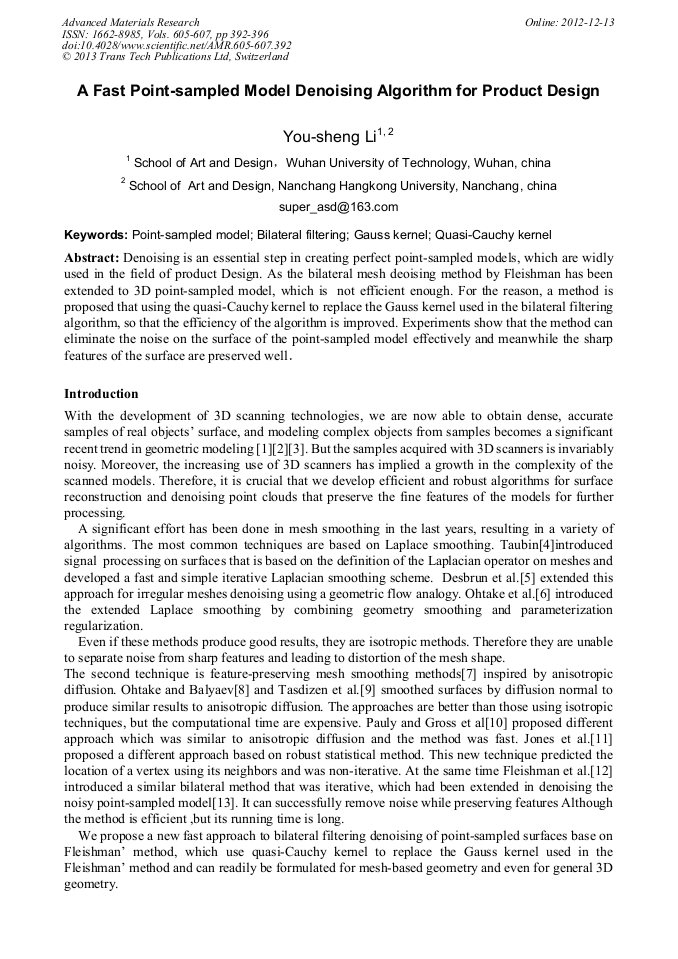

A Fast Point-Sampled Model Denoising Algorithm for Product Design

Abstract:

Denoising is an essential step in creating perfect point-sampled models, which are widly used in the field of product Design. As the bilateral mesh deoising method by Fleishman has been extended to 3D point-sampled model, which is not efficient enough. For the reason, a method is proposed that using the quasi-Cauchy kernel to replace the Gauss kernel used in the bilateral filtering algorithm, so that the efficiency of the algorithm is improved. Experiments show that the method can eliminate the noise on the surface of the point-sampled model effectively and meanwhile the sharp features of the surface are preserved well．

• Periodical: Advanced Materials Research (Volumes 605-607)
• Pages: 392-396
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.605-607.392
• Online since: December 2012
• Authors: You Sheng Li
• Keywords: Bilateral Filtering, Gauss Kernel, Point-Sampled Model, Quasi-Cauchy Kernel

References

[1] Hyojoo Son, Changwan Kim, Kwangnam Ch. Rapid 3D object detection and modeling using range data from 3D range imaging camera for heavy equipment operation, Automation in Construction, 2010: 19(7), 898-906.

DOI: 10.1016/j.autcon.2010.06.003

[2] Shengjun Liu, Charlie C.L. Wang. Orienting unorganized points for surface reconstruction. Computers & Graphics, 2010: 34(3), 209-218.

DOI: 10.1016/j.cag.2010.03.003

[3] Wei-Cheng Xie, Xiu-Fen Zou, Jian-Dong Yang, Jie-Bin Yang. Iteration and optimization scheme for the reconstruction of 3D surfaces based on non-uniform rational B-splines. Computer-Aided Design, 2012: 44(1), 1127-1140.

DOI: 10.1016/j.cad.2012.05.004

[4] Taubin, G. A signal processing approach to fair surface dising. Proceedings of SlGGRAPH 95, 35I-358.

[5] Desbrun, M., Meyer, M., Schroder, P. and Barr, A. Implicit fairing of irregular meshes using diffusion and curvature flow. Proceedings of SlGGRAPH 1999, 317-312.

DOI: 10.1145/311535.311576

[6] Ohtake, Y., A. Balyaev, A. and Bogaeski, I. Polyhedral surface smoothing with simultaneous mesh regularization. Proceeding of Geometric Modeling and Processing, 2000, 229-237.

DOI: 10.1109/gmap.2000.838255

[7] Bajaj, C., and G. Xu, Anisotropic diffusion on surface and function on surfaces. ACM Trans. on Graphics 22 (2003), p.4–32.

[8] Ohtake, Y., A. Balyaev, H. P. Seidel, Mesh smoothing by adaptive and anisotropic Gaussian filter applied to the mesh normal. Proc. Vision, Modeling, and Visualization 2002, p.203–210.

[9] Tadsdizen, T., Whitaker, R., Burchard, P., and Osher,S. Geometric surface smoothing via anisotropic diffusion of the normals. Proceeding of IEEE visualization 2002, 125-132.

DOI: 10.1109/visual.2002.1183766

[10] Pauly, M., Gross, M. Spectral processing of point-sampled geometry. Procceedings of ACM SIGGRAPH 2001, 279-386.

[11] Jones, T., Durand, F. and Desbrun, M. Non-iterative feature preserving mesh smoothing. Procceedings of ACM SIGGRAPH 2003, 943-949.

DOI: 10.1145/1201775.882367

[12] Fleishman S, Drori I, Cohen-Or D. Bilateral mesh denoising[J]. ACM Transactions on Graphics(TOG), 2003, 22(3): 950-953.

DOI: 10.1145/882262.882368

[13] Lihui Wang, Baozong Yuan, and Jing Chen, Robust fuzzy c-means and bilateral point clouds denoising, 2006 8th International Conference on Signal Processing, volume 2, 1591-1594.

DOI: 10.1109/icosp.2006.345666

[14] Sherstyuk A. Kernel functions in convolution surfaces: a comparative analysis[J]. The Visual Computer, 1999, 15(4): 171-182.

DOI: 10.1007/s003710050170
