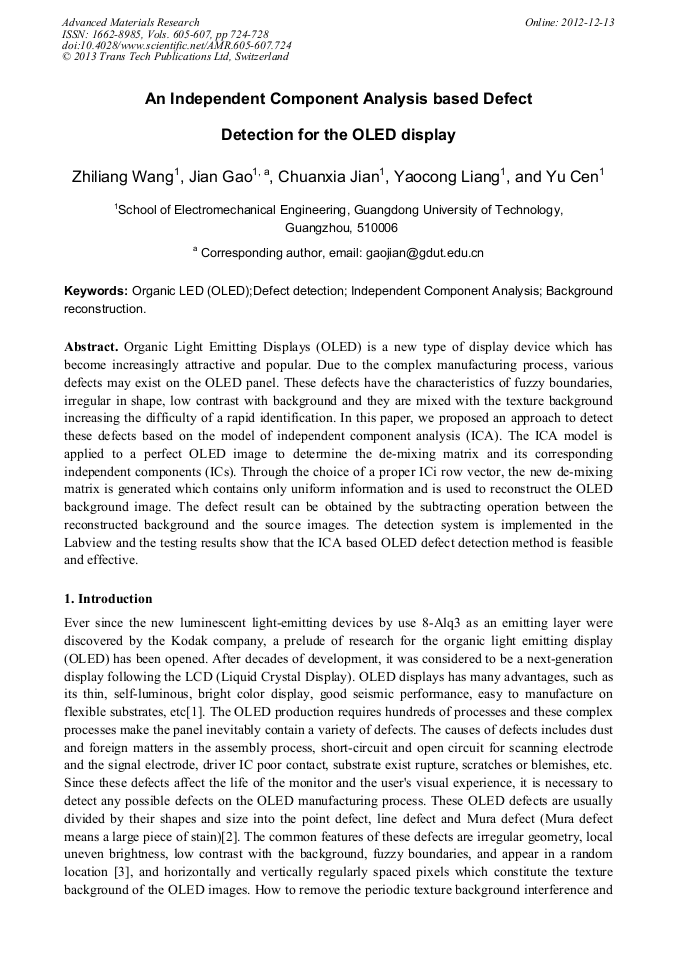

An Independent Component Analysis Based Defect Detection for the OLED Display

Abstract:

Organic Light Emitting Displays (OLED) is a new type of display device which has become increasingly attractive and popular. Due to the complex manufacturing process, various defects may exist on the OLED panel. These defects have the characteristics of fuzzy boundaries, irregular in shape, low contrast with background and they are mixed with the texture background increasing the difficulty of a rapid identification. In this paper, we proposed an approach to detect these defects based on the model of independent component analysis (ICA). The ICA model is applied to a perfect OLED image to determine the de-mixing matrix and its corresponding independent components (ICs). Through the choice of a proper ICi row vector, the new de-mixing matrix is generated which contains only uniform information and is used to reconstruct the OLED background image. The defect result can be obtained by the subtracting operation between the reconstructed background and the source images. The detection system is implemented in the Labview and the testing results show that the ICA based OLED defect detection method is feasible and effective.

• Periodical: Advanced Materials Research (Volumes 605-607)
• Pages: 724-728
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.605-607.724
• Online since: December 2012
• Authors: Zhi Liang Wang, Jian Gao, Chuan Xia Jian, Yao Cong Liang, Yu Cen
• Keywords: Background Reconstruction, Defect Detection, Independent Component Analysis (ICA), Organic LED (OLED)

References

[1] Display Search. Alternative Display Technology Report: OLED　Technology(2006).

[2] Y. M. R. Yoshitake, and T. Tamura. Evaluation and discrimination method of mura, in liquid crystal displays by just noticeable difference observation. SPIE 2002, 4902: 715 - 722.

DOI: 10.1117/12.467711

[3] X.Z. XU, Y. M. Feng, et al., A new test method for OLED brightness uniformity, Photonics 2007, 33(1).

[4] W.S. Kim, et. al., Detection of spot-type defects on liquid crystal display modules, Key engineering Materials, 2004, vol. 270-273, pp.808-813.

DOI: 10.4028/www.scientific.net/kem.270-273.808

[5] S.H. Kim, et. al. Region Mura Detection using Efficient High Pass Filtering based on Fast Average Operation. Proceedings of the 17th World Congress, International Federation of Automatic Control, 2008, 17(1), Part1.

DOI: 10.3182/20080706-5-kr-1001.01386

[6] S. Chen, S. Chou., TFT-LCD Mura defect detection using wavelet and cosine transforms. Journal of Advanced Mechanical Design, System, and Manufacturing, 2008, 2(3): 441-445.

DOI: 10.1299/jamdsm.2.441

[7] C. Lu and D. Tsai., Automatic defect inspection for LCD using singular value decomposition. The International Journal of Advanced Manufacturing Technology, 2005, 25(1): 53-61.

DOI: 10.1007/s00170-003-1832-6

[8] R. Jensen and T. Eltoft, Independent component analysis for texture segmentation, Pattern Recognition, 2003, 36, 2301-2315.

DOI: 10.1016/s0031-3203(03)00131-6

[9] R. Manduchi and J. Portilla, Independent component analysis of textures, Proceeding of the IEEE International Conference on Computer Vision, Kerkyra, Greece, 1054-1060(1999).

DOI: 10.1109/iccv.1999.790387

[10] A. Hyvärinen, The Fixed-Point Algorithm and Maximum Likelihood Estimation for Independent Component Analysis, Neural Processing Letters, 1999, 10(1): 1-5.

[11] P. Jiang, et al., Discussion of Super-Gaussian and Sub-Gaussian Distribution, Journal of Data Acquisition and Processing(Chinese), 2009, 24(z1): 115-118.

[12] K.F. Wang, An ICA Algorithm Based on Exponential Power Family of Densities and Gaussian Mixture Densities Models [D]. Dalian University of Technology，(2009).

[13] A. Hyvärinen and E. Oja., A fast fixed-point algorithm for independent component analysis, Neural Computation. 1997, 9(7): 1483-1492.

DOI: 10.1162/neco.1997.9.7.1483

[14] D.M. Tsai, P.C. Lin and C.J. Lu, an independent component analysis-based filter design for defect detection in low-contrast surface images, Pattern Recognition, 2006, 39: 1679-1694.

DOI: 10.1016/j.patcog.2006.03.005
