Research on Intelligence Inspections of Gear Profile Deviation

Abstract:

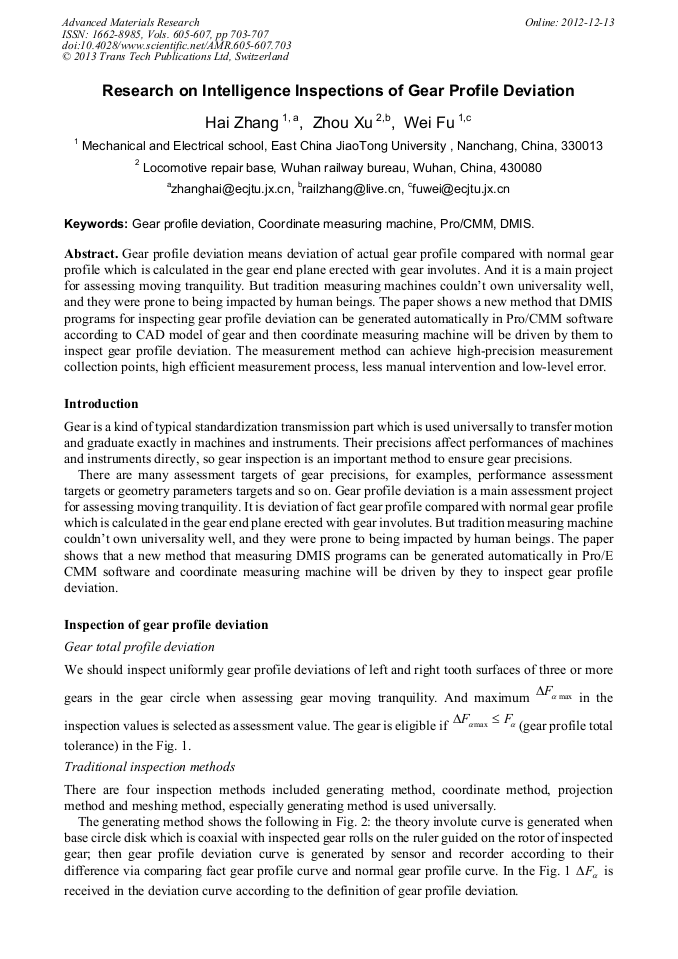

Gear profile deviation means deviation of actual gear profile compared with normal gear profile which is calculated in the gear end plane erected with gear involutes. And it is a main project for assessing moving tranquility. But tradition measuring machines couldn’t own universality well, and they were prone to being impacted by human beings. The paper shows a new method that DMIS programs for inspecting gear profile deviation can be generated automatically in Pro/CMM software according to CAD model of gear and then coordinate measuring machine will be driven by them to inspect gear profile deviation. The measurement method can achieve high-precision measurement collection points, high efficient measurement process, less manual intervention and low-level error.
