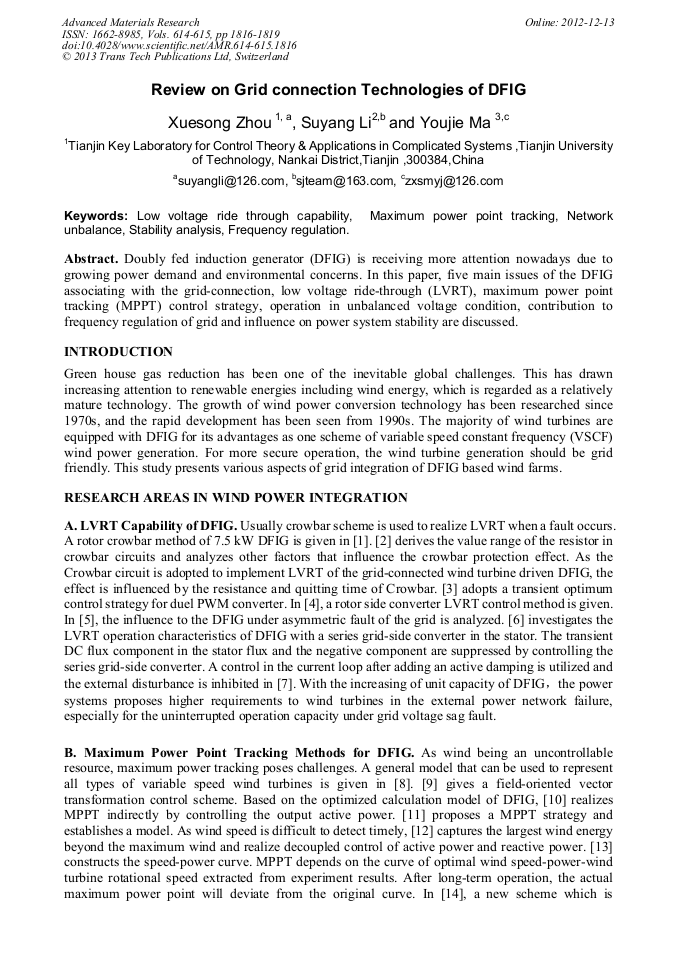

Review on Grid Connection Technologies of DFIG

Abstract:

Doubly fed induction generator (DFIG) is receiving more attention nowadays due to growing power demand and environmental concerns. In this paper, five main issues of the DFIG associating with the grid-connection, low voltage ride-through (LVRT), maximum power point tracking (MPPT) control strategy, operation in unbalanced voltage condition, contribution to frequency regulation of grid and influence on power system stability are discussed.

• Periodical: Advanced Materials Research (Volumes 614-615)
• Pages: 1816-1819
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.614-615.1816
• Online since: December 2012
• Authors: Xue Song Zhou, Su Yang Li, You Jie Ma
• Keywords: Frequency Regulation, Low Voltage Ride through Capability, Maximum Power Point Tracking (MPPT), Network Unbalance, Stability Analysis
