Finite Element Modal Analyses of the WK-10B Excavator Stick

Meng Su; Chun Ting Liu; Wan Shan Zhang

doi:10.4028/www.scientific.net/AMR.619.39

Paper Titles

Study on Mine Hoist Driven by PMSM of Low Voltage and Multi-Branch
p.22

Impact Dynamic Analysis of Horizontally Vibrated Conveyor with Coulomb Friction Modeling
p.26

Dynamic Characteristics of the Backhoe Excavator Bucket Based on Pro/E and ANSYS
p.30

Following Straightly Control Strategy and Testing for Split Platform in Roadway
p.34

Finite Element Modal Analyses of the WK-10B Excavator Stick
p.39

Automatic Connection of GPIB Communication Protocol for Manufacturing System
p.43

Spindle Static and Dynamic Characteristics Analysis of Precision CNC Turning Center
p.47

A Control Method Research of Parallel Mechanisms
p.51

Study on Using Independently Developed Equipment for Mine’s Axial-Flow Main Ventilator Performance Test
p.56

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 619Finite Element Modal Analyses of the WK-10B...

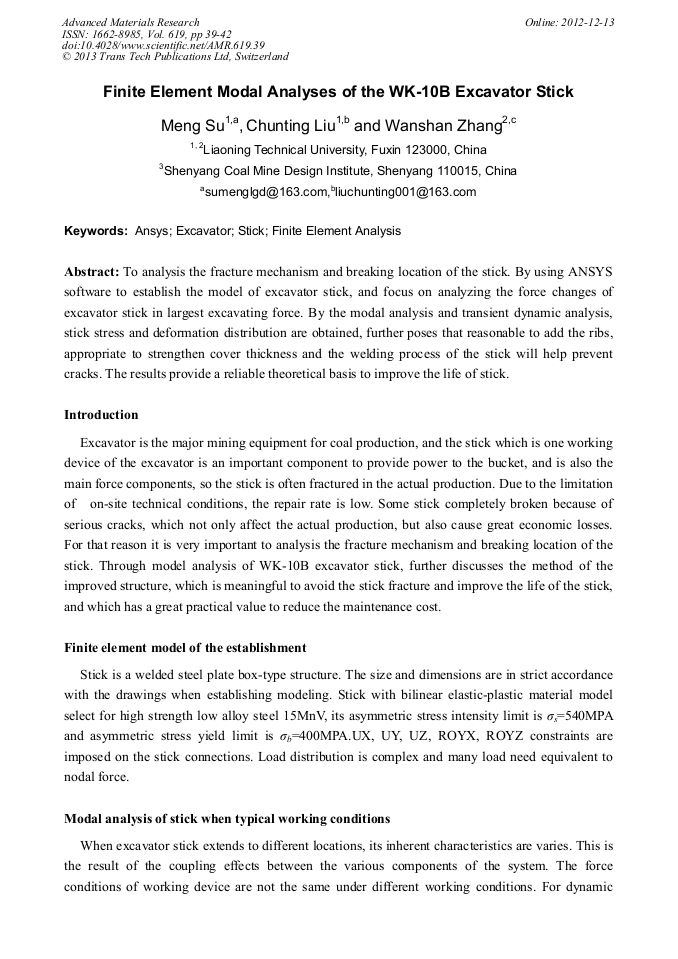

Finite Element Modal Analyses of the WK-10B Excavator Stick

Abstract:

To analysis the fracture mechanism and breaking location of the stick. By using ANSYS software to establish the model of excavator stick, and focus on analyzing the force changes of excavator stick in largest excavating force. By the modal analysis and transient dynamic analysis, stick stress and deformation distribution are obtained, further poses that reasonable to add the ribs, appropriate to strengthen cover thickness and the welding process of the stick will help prevent cracks. The results provide a reliable theoretical basis to improve the life of stick.
