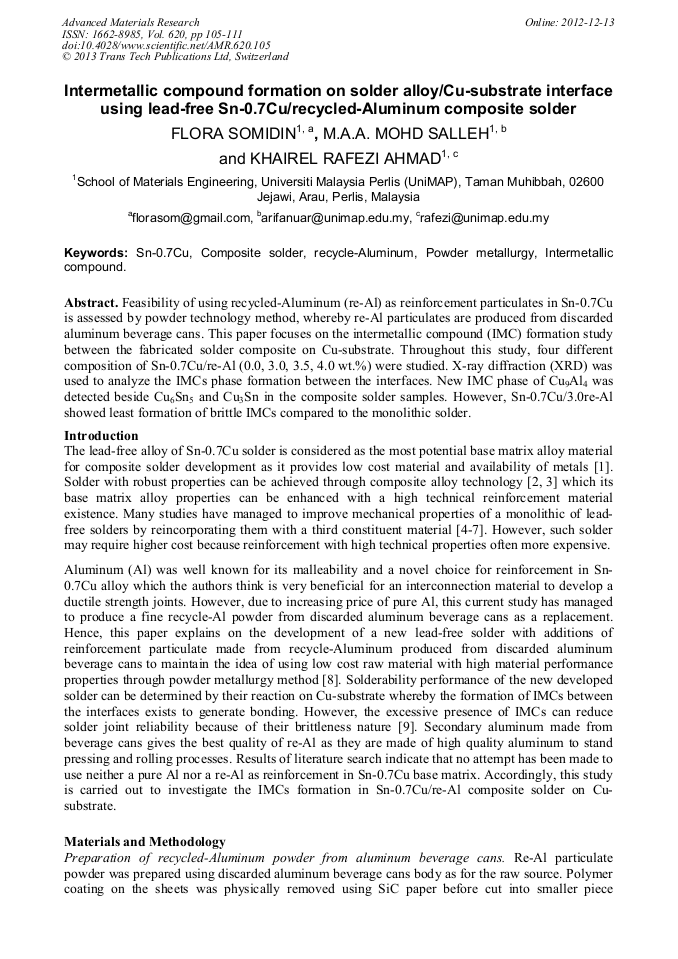

Intermetallic Compound Formation on Solder Alloy/Cu-Substrate Interface Using Lead-Free Sn-0.7Cu/Recycled-Aluminum Composite Solder

Abstract:

Feasibility of using recycled-Aluminum (re-Al) as reinforcement particulates in Sn-0.7Cu is assessed by powder technology method, whereby re-Al particulates are produced from discarded aluminum beverage cans. This paper focuses on the intermetallic compound (IMC) formation study between the fabricated solder composite on Cu-substrate. Throughout this study, four different composition of Sn-0.7Cu/re-Al (0.0, 3.0, 3.5, 4.0 wt.%) were studied. X-ray diffraction (XRD) was used to analyze the IMCs phase formation between the interfaces. New IMC phase of Cu₉Al₄ was detected beside Cu₆Sn₅ and Cu₃Sn in the composite solder samples. However, Sn-0.7Cu/3.0re-Al showed least formation of brittle IMCs compared to the monolithic solder.

• Periodical: Advanced Materials Research (Volume 620)
• Pages: 105-111
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.620.105
• Online since: December 2012
• Authors: Flora Somidin, Mohd Arif Anuar Mohd Salleh, Khairel Rafezi Ahmad
• Keywords: Composite Solder, Intermetallic Compound, Powder metallurgy, Recycle-Aluminum, Sn-0.7Cu

References

[1] G. Zeng, S. Xue, L. Zhang and L. Gao, Journal of Materials Science: Materials in Electronics Vol. 22 (2011), pp.565-578.

[2] F. Guo, Journal of Materials Science: Vol. Materials in Electronics Vol. 18 (2006), pp.129-145.

[3] J. Shen and Y.C. Chan: Microelectronics Reliability Vol. 49 (2009), pp.223-234.

[4] M.A.A. Mohd Salleh, A.M. Mustafa Al Bakri, M.H. Zan@Hazizi, Flora Somidin, Noor Farhani Mohd Alui and Zainal Arifin Ahmad: Materials Science and Engineering A: http: /dx. doi. org/10. 1016/j. msea. 2012. 07. 039.

DOI: 10.1016/j.msea.2012.07.039

[5] X. L. Zhong and M. Gupta, Journal of Physics D: Applied Physics Vol. 41 (2008), p.7.

[6] K. Mohan Kumar, V. Kripesh and Andrew A.O. Tay: Journal of Alloys and Compounds Vol. 450 (2008), pp.229-237.

[7] J. Shen and Y.C. Chan: Journal of Alloys and Compounds Vol. 477 (2009), pp.552-559.

[8] M. Abtew and G. Selvaduray, Materials Science and Engineering: R: Reports Vol. 27 (2000), pp.95-141.

[9] G. Zeng, S. Xue, L. Zhang and L. Gao, Journal of Materials Science: Materials in Electronics Vol. 22 (2011), pp.565-578.

[10] Gabrielle G., Elsa O., and Randolph K., Resources: Conservation and Recycling Vol. 58 (2011), pp.79-87.

[11] MohdSalleh M. A. A., M.M.A. Bakri, H. Kamarudin, M. Bnhussain, Z. M. H and F. Somidin: Physics Procedia Vol. 22 (2011), pp.299-304.

DOI: 10.1016/j.phpro.2011.11.047

[12] K.S. Kim, S.H. Huh and K. Suganuma: Journal of Alloys and Compounds Vol. 352 (2003), pp.226-236.

[13] W. Tang, H. Zhang, Y. Wu and Z. Zheng: Journal of Alloys and Compounds Vol. 497 (2010), pp.396-401.
