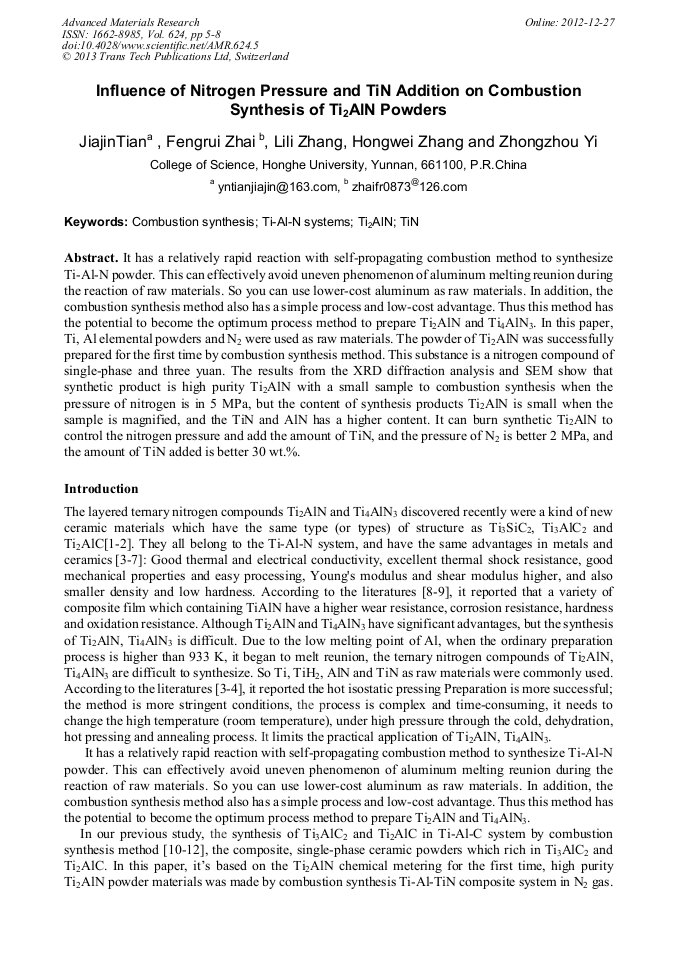

Influence of Nitrogen Pressure and TiN Addition on Combustion Synthesis of Ti₂AlN Powders

Abstract:

It has a relatively rapid reaction with self-propagating combustion method to synthesize Ti-Al-N powder. This can effectively avoid uneven phenomenon of aluminum melting reunion during the reaction of raw materials. So you can use lower-cost aluminum as raw materials. In addition, the combustion synthesis method also has a simple process and low-cost advantage. Thus this method has the potential to become the optimum process method to prepare Ti2AlN and Ti4AlN3. In this paper, Ti, Al elemental powders and N2 were used as raw materials. The powder of Ti2AlN was successfully prepared for the first time by combustion synthesis method. This substance is a nitrogen compound of single-phase and three yuan. The results from the XRD diffraction analysis and SEM show that synthetic product is high purity Ti2AlN with a small sample to combustion synthesis when the pressure of nitrogen is in 5 MPa, but the content of synthesis products Ti2AlN is small when the sample is magnified, and the TiN and AlN has a higher content. It can burn synthetic Ti2AlN to control the nitrogen pressure and add the amount of TiN, and the pressure of N2 is better 2 MPa, and the amount of TiN added is better 30 wt.%.

• Periodical: Advanced Materials Research (Volume 624)
• Pages: 5-8
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.624.5
• Online since: December 2012
• Authors: Jia Jin Tian, Feng Rui Zhai, Li Li Zhang, Hong Wei Zhang, Zhong Zhou Yi
• Keywords: Combustion Synthesis, Ti₂AlN, Ti-Al-N Systems, TiN

References

[1] M. A. Pietzka, J. C. Schuster, Summary of constitutional data on the aluminum-carbon-titanium system, J. Phase Equilib. 15(1994)392-400.

DOI: 10.1007/bf02647559

[2] M. W. Barsoum, J. C. Schuster, Comment on new ternary nitride in the Ti-Al-N system, J. Am. Ceram. Soc. 82(2000)785-788.

[3] N. V. Tzenov, M. W. Barsoum, Synthesis and characterization of Ti3AlC2, J. Am. Ceram. Soc. 83 (2000) 825-832.

[4] C. J. Rawn, M. W. Barsoum, Structure of Ti4AlN3 - a layered M(n+1)AX(n) nitride, Mat. Res. Bul. 35(2000)1785-1796.

DOI: 10.1016/s0025-5408(00)00383-4

[5] J. C. Ho, H. H. Hamdeh, M.W. Barsoum, Low temperature heat capacities of Ti3AlC1.8, Ti4AlN3, and Ti3SiC2, J. Appl. Phys. 86(1999)3609-3611.

DOI: 10.1063/1.371267

[6] M. W. Barsoum, C. J. Rawn, Thermal properties of Ti4AlN3, J. Appl. Phys. 87(2000)8407-8414.

[7] A. G. Procopio, M. W. Barsoum, Synthesis of Ti4AlN3 and phase equilibria in the Ti-Al-N system, Met. Mat. Trans. 31(2000)333-337.

DOI: 10.1007/s11661-000-0273-1

[8] S. G. Wang, D. J. Liu, Z. J. Yao, Wear resistance and corrosion resistance of ion plated Ti-Al-N film, Mater. Prot. 33(2000)52-56.

[9] D. J. Liu, S. G. Wang, Z. J. Yao, Study on manufacture and structure and properties of the multi components super hard TiAlN films, Hot Working Technol. 6(1999)22-23.

[10] J. M. Guo, Z. B. Ge, C. X. Chen, Effects of different Ti/C and Al content on combustion synthesized Ti3AlC2 powders in the Ti-Al-C system, Rare Mater. Eng. 32(2003)561-565.

[11] J. M. Guo, C. X. Chen, Z. B. Ge, Effects of TiC addition on combustion synthesis of Ti2AlC powders, Acta Metall. Sinica, 39(2003)315-319.

[12] J. M. Guo, Z. F. Dai, G. Y. Liu, Study on sintering of SHS Ti3AlC2 powders by hot pressing, Rare Mater. Eng. 36(2007)124-127.

[13] A. G. Merzhavov, Combustion and Plasma Synthesis of High Temperature Materials, VCH, New York, 1990.
