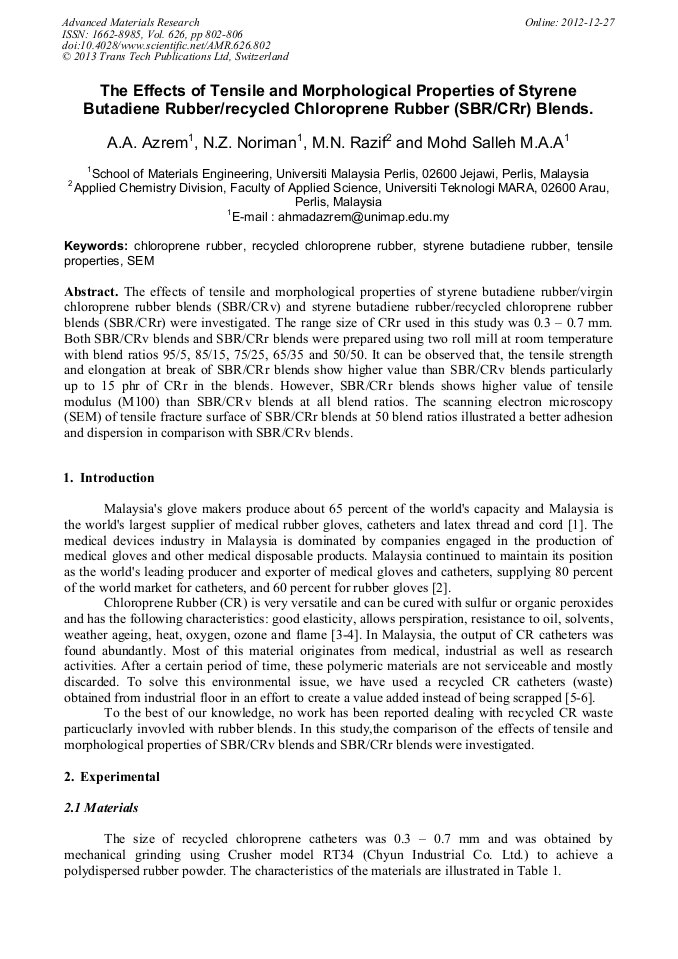

The Effects of Tensile and Morphological Properties of Styrene Butadiene Rubber/Recycled Chloroprene Rubber (SBR/CRr) Blends

Abstract:

The effects of tensile and morphological properties of styrene butadiene rubber/virgin chloroprene rubber blends (SBR/CRv) and styrene butadiene rubber/recycled chloroprene rubber blends (SBR/CRr) were investigated. The range size of CRr used in this study was 0.3 0.7 mm. Both SBR/CRv blends and SBR/CRr blends were prepared using two roll mill at room temperature with blend ratios 95/5, 85/15, 75/25, 65/35 and 50/50. It can be observed that, the tensile strength and elongation at break of SBR/CRr blends show higher value than SBR/CRv blends particularly up to 15 phr of CRr in the blends. However, SBR/CRr blends shows higher value of tensile modulus (M100) than SBR/CRv blends at all blend ratios. The scanning electron microscopy (SEM) of tensile fracture surface of SBR/CRr blends at 50 blend ratios illustrated a better adhesion and dispersion in comparison with SBR/CRv blends. Keywords: chloroprene rubber, recycled chloroprene rubber, styrene butadiene rubber, tensile properties, SEM

You might also be interested in these eBooks

Advanced Materials Engineering and Technology

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 626)

Pages:

802-806

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.626.802

Citation:

Cite this paper

Online since:

December 2012

Authors:

Ahmad Azmi Azrem, N.Z. Noriman, M.N. Razif, Mohd Arif Anuar Mohd Salleh

Keywords:

Chloroprene Rubber, Recycled Chloroprene Rubber, SEM, Styrene Butadiene Rubber (SBR), Tensile Properties

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Joshua Brown, Rubber Industry in Malaysia: Positive into 2011. Retrieved February 01, 2011, from www. ipfa-group. com/33. html&page=143.

Google Scholar

[2] Industries in Malaysia: Medical Devices Industry. Retrieved June 6, 2012, from http: /www. mida. gov. my/env3/index. php?page=medical-devices.

Google Scholar

[3] DuPont Neoprene (Type of Neoprene)- Dry Rubber Applications, Technical Information — Rev. 8, September (2010).

Google Scholar

[4] M. Iqbal., T. Akhter., Z. Farooqui., K. Mahmood., (2008).

Google Scholar

[5] N. Z. Noriman, & H. Ismail., (2011).

Google Scholar

[6] N. Z. Noriman, H. Ismail, A. A. Rashid., (2010).

Google Scholar

[7] D. Ciesielska & P. Liu., (2000) Mechanical, Rheological and Morphological Properties of Recycled Expanded Polystyrene/Styrene Butadiene Rubber Blends, Kautschuk Gummi Kunststoffe, Vol. 53(5), 273-276.

Google Scholar

[8] M. Morton, (1973) Physical testing of vulcanizates, in: Rubber Technology, second ed. Van Nostrand Reinhold Co., New York.

Google Scholar
