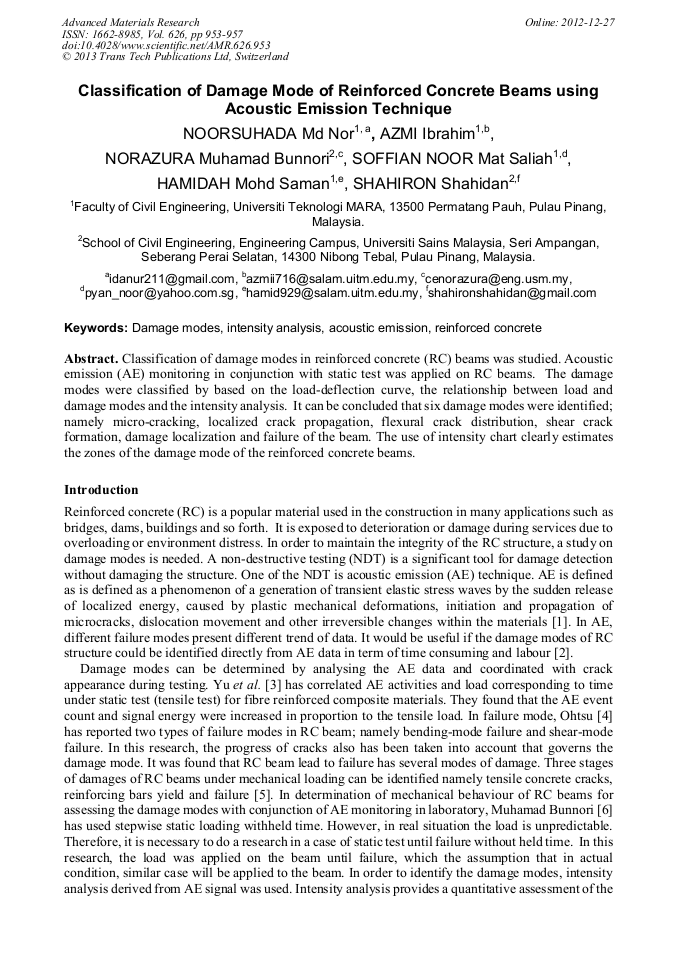

Classification of Damage Mode of Reinforced Concrete Beams Using Acoustic Emission Technique

Abstract:

Classification of damage modes in reinforced concrete (RC) beams was studied. Acoustic emission (AE) monitoring in conjunction with static test was applied on RC beams. The damage modes were classified by based on the load-deflection curve, the relationship between load and damage modes and the intensity analysis. It can be concluded that six damage modes were identified; namely micro-cracking, localized crack propagation, flexural crack distribution, shear crack formation, damage localization and failure of the beam. The use of intensity chart clearly estimates the zones of the damage mode of the reinforced concrete beams.

• Periodical: Advanced Materials Research (Volume 626)
• Pages: 953-957
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.626.953
• Online since: December 2012
• Authors: Md Nor Noorsuhada, Ibrahim Azmi, Norazura Muhamad Bunnori, Mat Saliah Soffian Noor, Mohd Saman Hamidah, Shahidan Shahiron
• Keywords: Acoustic Emission (AE), Damage Modes, Intensity Analysis, Reinforced Concrete (RC)

References

[1] ASTM E 1316 – 06, Standard terminology for non-destructive examinations,. ASTM International, vol. 5, (2006).

[2] Ativittavas N., Fowler TJ and Pothisiri T., Identification of fiber breakage in fiber reinforced plastic by low amplitude filtering of acoustic emission data, Journal of Nondestructive Evaluation, vol. 23 (1): 21–35, (2004).

DOI: 10.1023/b:jone.0000045218.22048.7a

[3] Yu YH, Choi JH, Kweon JH, Kim DH., A study on the failure detection of composite materials using an acoustic emission, Composite Structures, vol. 75: 163–169, (2006).

DOI: 10.1016/j.compstruct.2006.04.070

[4] Ohtsu M., Acoustic emission testing, Springer, pp.211-237, (2008).

[5] McCormac JC, Nelson JK., Design of Reinforced concrete: ACI 318 – 05 Code edition, 7th edition, John Wiley & Sons, Inc., (2005).

[6] Muhamad Bunnori N., Acoustic emission techniques for the damage assessment of reinforced concrete structures, PhD Thesis, University of Cardiff, (2008).

[7] Gostautas RS, Ramirez G., Peterman RJ., Meggers D., Acoustic emission monitoring and analysis of glass fiber-reinforced composites bridge decks, Journal of Bridge Engineering, vol. 10, No. 6, pp.713-721, (2005).

DOI: 10.1061/(asce)1084-0702(2005)10:6(713)

[8] Shahidan S., Muhamad Bunnori N., Md Nor N., Basri SR., Health index evaluation on acoustic emission signal for concrete structure by intensity analysis method, Advanced Materials Research, vol. 403-408, pp.3729-3733, (2012).

DOI: 10.4028/www.scientific.net/amr.403-408.3729

[9] Nair A., Cai CS., Acoustic emission monitoring of bridges: Review and case studies, Engineering Structure, vol. 32, pp.1704-1714, (2010).

DOI: 10.1016/j.engstruct.2010.02.020

[10] BS8110, British Standard: Structural use of concrete - Part 1: Code of practice for design and construction, British Standard, (1985).

[11] BS 12390-5, British Standard: Testing hardened concrete – Part 5: flexural strength of the test specimens, British Standard, (2009).

[12] Md Nor N., Muhamad Bunnori N., Ibrahim A., Shahidan S., Mat Saliah SN., An observation of noise intervention into acoustic emission signal on concrete structure, IEEE 7th International Colloquium on Signal Processing and Its Applications, p.7–10, (2011).

DOI: 10.1109/cspa.2011.5759832

[13] Golaski L., Gebski P, Kanji O., Diagnostic of reinforced concrete bridge by acoustic emission, Journal of Acoustic Emission, 20.
