Research on Dyeing Performance of Dew-Retted Linen Modified with Urea

Feng Chun Dong; Cheng Cheng Yan; Yong Tang Jia; Gang Huang

doi:10.4028/www.scientific.net/AMR.627.225

Paper Titles

Graft Copolymerization of Acrylamide onto Polyester-Cotton Blended Fabric by Using Potassium Permanganate Redox System
p.205

Improvement of Nanometer TiO₂ Anti-Ultraviolet Finishing Performance for Cotton Fabric by Using Polyethylene Glycol
p.212

Mixed Reactive Disperse Dyes on Wool Yarn Dyeing in Supercritical CO₂
p.217

Modification of Hemp Fabric with Endoglucanase and Acrylamide for Efficient Enhancing Dyeability of Natural Dyes
p.221

Research on Dyeing Performance of Dew-Retted Linen Modified with Urea
p.225

Research on the Application of Ethnic Look for the Textile Visual Design
p.229

Study of the Pretreatment and Disperse Dyeing Process for the PLA/cotton Blended Fabric: High Physical Resistance and Dyeing Performance
p.233

Study on the Weaving Beauty of Monochromatic Knit Fabrics
p.239

Sulfuric Acid Treatment of Aramid Fiber for Improving the Cationic Dyeing Performance
p.243

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 627Research on Dyeing Performance of Dew-Retted Linen...

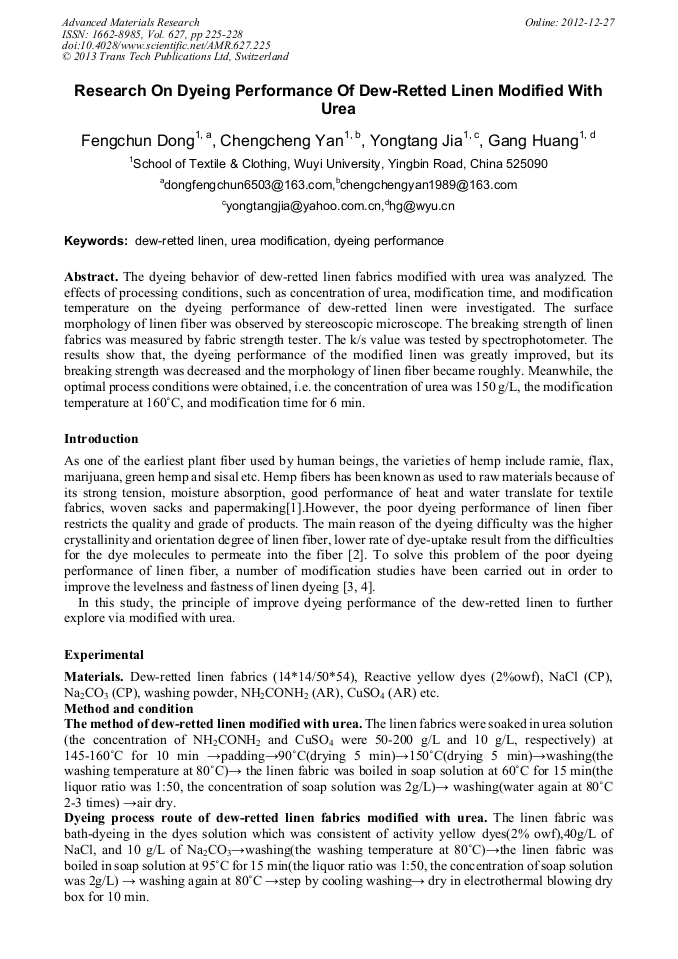

Research on Dyeing Performance of Dew-Retted Linen Modified with Urea

Abstract:

The dyeing behavior of dew-retted linen fabrics modified with urea was analyzed. The effects of processing conditions, such as concentration of urea, modification time, and modification temperature on the dyeing performance of dew-retted linen were investigated. The surface morphology of linen fiber was observed by stereoscopic microscope. The breaking strength of linen fabrics was measured by fabric strength tester. The k/s value was tested by spectrophotometer. The results show that, the dyeing performance of the modified linen was greatly improved, but its breaking strength was decreased and the morphology of linen fiber became roughly. Meanwhile, the optimal process conditions were obtained, i.e. the concentration of urea was 150 g/L, the modification temperature at 160°C, and modification time for 6 min.
