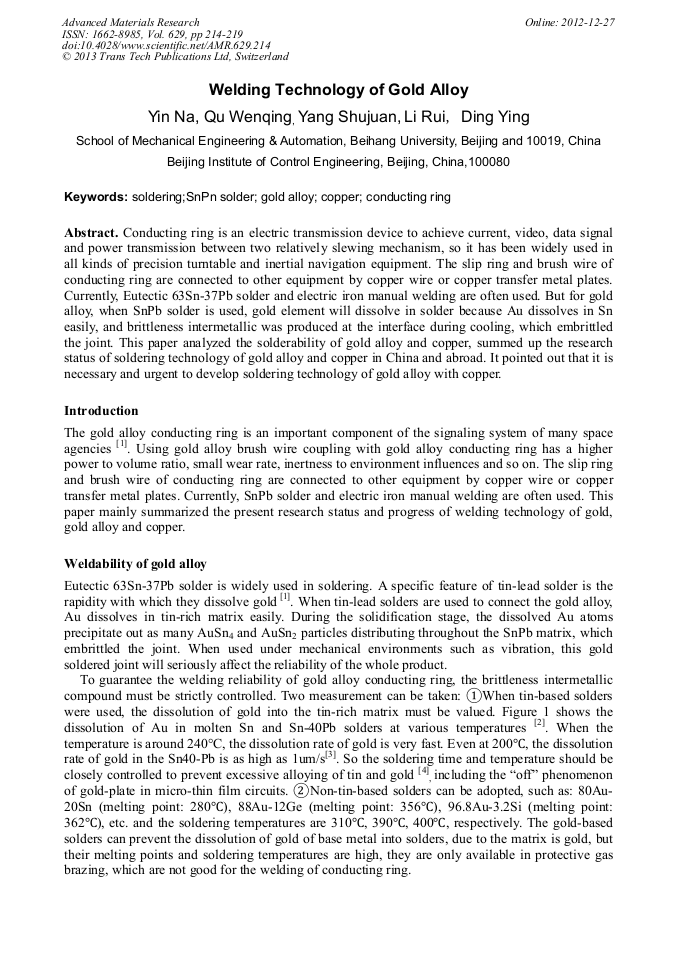

Welding Technology of Gold Alloy

Abstract:

Conducting ring is an electric transmission device to achieve current, video, data signal and power transmission between two relatively slewing mechanism, so it has been widely used in all kinds of precision turntable and inertial navigation equipment. The slip ring and brush wire of conducting ring are connected to other equipment by copper wire or copper transfer metal plates. Currently, Eutectic 63Sn-37Pb solder and electric iron manual welding are often used. But for gold alloy, when SnPb solder is used, gold element will dissolve in solder because Au dissolves in Sn easily, and brittleness intermetallic was produced at the interface during cooling, which embrittled the joint. This paper analyzed the solderability of gold alloy and copper, summed up the research status of soldering technology of gold alloy and copper in China and abroad. It pointed out that it is necessary and urgent to develop soldering technology of gold alloy with copper.

• Periodical: Advanced Materials Research (Volume 629)
• Pages: 214-219
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.629.214
• Online since: December 2012
• Authors: Na Yin, Wen Qing Qu, Shu Juan Yang, Rui Li, Ying Ding
• Keywords: Conducting Ring, Copper, Gold Alloy, SnPn Solder, Soldering

References

[1] Zhang Huilin, Zhang Fengshan. Electric transportation properties of the high speed rotation exact electric ring under high temperature and vacuum environment [J]. Infrared Millim Waves, 2003, 22(6):461-463

[2] Welding Society of Chinese mechanical engineering society Welding manual: The second volume, Welding of Materail[M]. Beijing: China Machine Press,1992:570

[3] Jacobson D.M., Hμmpston G. Gold Coatings for Fluxless Soldering[J]. Gold Bull, 1989, 22(1):9-18

DOI: 10.1007/bf03214704

[4] Berwer D H. Solder for thick gold plating[J]. Welding Journal .1970, 49(10):465-470

[5] Zhang Qiyun,Zhuang Hongshou. Brazing and soldering manual [M]. 2nd, Beijing: China Machine Press,2008: 429-430

[6] Humpston G, Jacobson D M, Sangha S P. New low temperature process for joining high caratage jewellery alloys[J]. Gold Technology .1993(5):4-7

DOI: 10.1007/bf03214726

[7] LI Fu-quan, Wang Chu-qing, TIAN De-wen. Interfacial reaction between molten 63Sn37Pb droplet and Au/Ni/Cu pad[J] The Chinese Journal of Nonferrous Metals. 2004, 14(7):1139-1143

[8] C.E. Ho, Y.M. Chen and C.R. Kao. Reaction Kinetics of Solder-Balls with Pads in BGA Packages during Reflow Soldering[J]. Journal of Electronic Materials.1999, 28(11):1231-1237

DOI: 10.1007/s11664-999-0162-3

[9] Zhang Wei, Wang Chunqing, Yan Bohan. Evolution of Intermetallic Compound at the Interface between AuSn Solder and Metallization Layer[J]. Rare Metal Materials and Engineering. 2006, 35(7):1143-1145

[10] Yang Anheng, Xie Hongchao. Application of Au-Ge Alloy in Electron Industry[J]. Precious Metals.2007, 28(1):63-66

[11] Chen Fang, Du Changhua, Du Yunfei. Research of brazing of the Sn-3.5Ag0.6Cu alloy with the copper wire[J]. Welding Equipment and materials. 2005,34(4): 49-51

[12] Pan Hui, Sun Ji-Sheng, Liu Xiao-fang. Microstructure and properties of joint of H62 brass soldered using tin-lead solder[J]. Journal of Aeronautical Materials. 2000, 20(4):26-29
