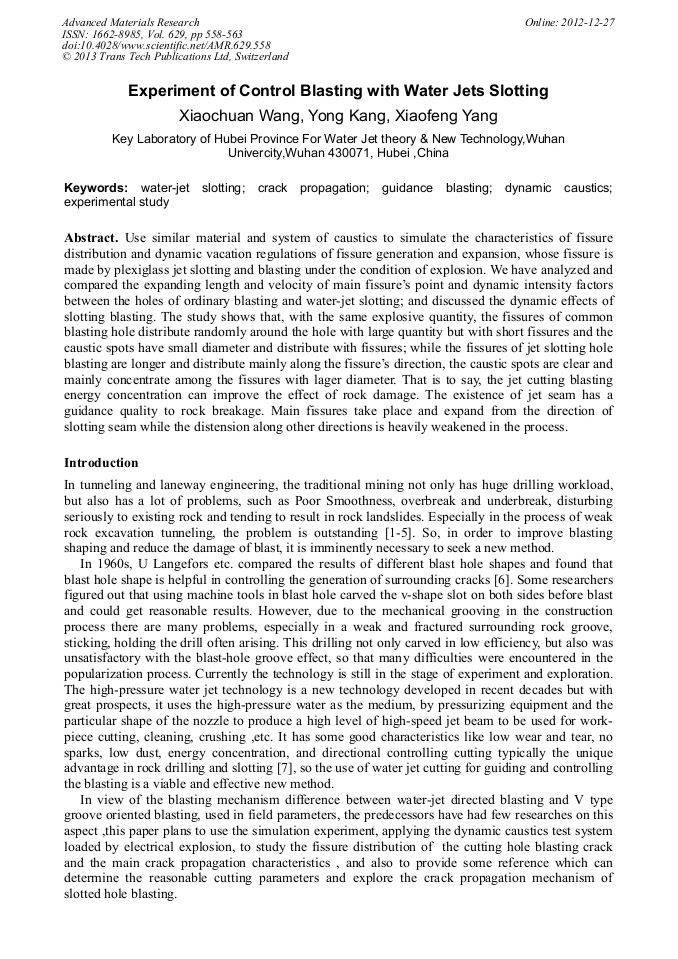

Experiment of Control Blasting with Water Jets Slotting

Abstract:

Use similar material and system of caustics to simulate the characteristics of fissure distribution and dynamic vacation regulations of fissure generation and expansion, whose fissure is made by plexiglass jet slotting and blasting under the condition of explosion. We have analyzed and compared the expanding length and velocity of main fissure’s point and dynamic intensity factors between the holes of ordinary blasting and water-jet slotting; and discussed the dynamic effects of slotting blasting. The study shows that, with the same explosive quantity, the fissures of common blasting hole distribute randomly around the hole with large quantity but with short fissures and the caustic spots have small diameter and distribute with fissures; while the fissures of jet slotting hole blasting are longer and distribute mainly along the fissure’s direction, the caustic spots are clear and mainly concentrate among the fissures with lager diameter. That is to say, the jet cutting blasting energy concentration can improve the effect of rock damage. The existence of jet seam has a guidance quality to rock breakage. Main fissures take place and expand from the direction of slotting seam while the distension along other directions is heavily weakened in the process.

• Periodical: Advanced Materials Research (Volume 629)
• Pages: 558-563
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.629.558
• Online since: December 2012
• Authors: Xiao Chuan Wang, Yong Kang, Xiao Feng Yang
• Keywords: Crack Propagation, Dynamic Caustics, Experimental Study, Guidance Blasting, Water-Jet Slotting

References

[1] WANG Yujie, CHEN Xianfeng, PENG Tianhao. Analysis of influence of rock interlayer on blasting[J]. Chinese Journal of Rock Mechanics and Engineering, 2004, 23(8): 1385－1387.

[2] NING L, PING Z, QINGWEI D, et al. Dynamic damage model of the rock mass medium with micro joints[J]. Int.J. of Damage Mechanics, 2003, 12(2): 163－173.

DOI: 10.1177/1056789503012002004

[3] MAG W, HAO H, LU Y. Distributed structural damage generated by high-frequency ground motion[J]. Journal of Structural Engineering, 2002, 128 (1/3)：390–399.

DOI: 10.1061/(asce)0733-9445(2002)128:3(390)

[4] WANG Wenlong. Drilling and blasting[M]. Beijing: China Coal Industry Publishing House, 1984: 89–94.

[5] ZONG Qi, Zhang Guoyong. Study on some techniques of cutting blasting and smooth blasting ofmedium-deep blasting in rock tunnel[J]. Journal of Huainan Institute of Technology，2001，21(2)：18–21.

[6] ZONG Qi. Investigations into mechanism of crack formation for grooved hole-well blasting[J]. Chinese Journal of Geotechnical Engineering, 1998, 20(1): 30-33.

[7] SHEN Zhonghou. Water Jet theory ﹠Technology [M]. Dongyin：University of Petroleum press，(1998).

[8] LI Qing, WANG Pinghu, YANG Renshu. Experimental investigation on dynamic mechanical behaviors of cracks induced by V-notch borehole blasting with dynamic caustic [J] Explosion and Shock Waves, 2009, 29(4): 413-418.

[9] LI Qing, YANG Ren-shu, LI Junlei, etc. Experimental study propagation of dynamic cracks under blasting loading[J]. Chinese Journal of Rock Mechanic sand Engineering, 2005, 24(16): 2912-2916.
