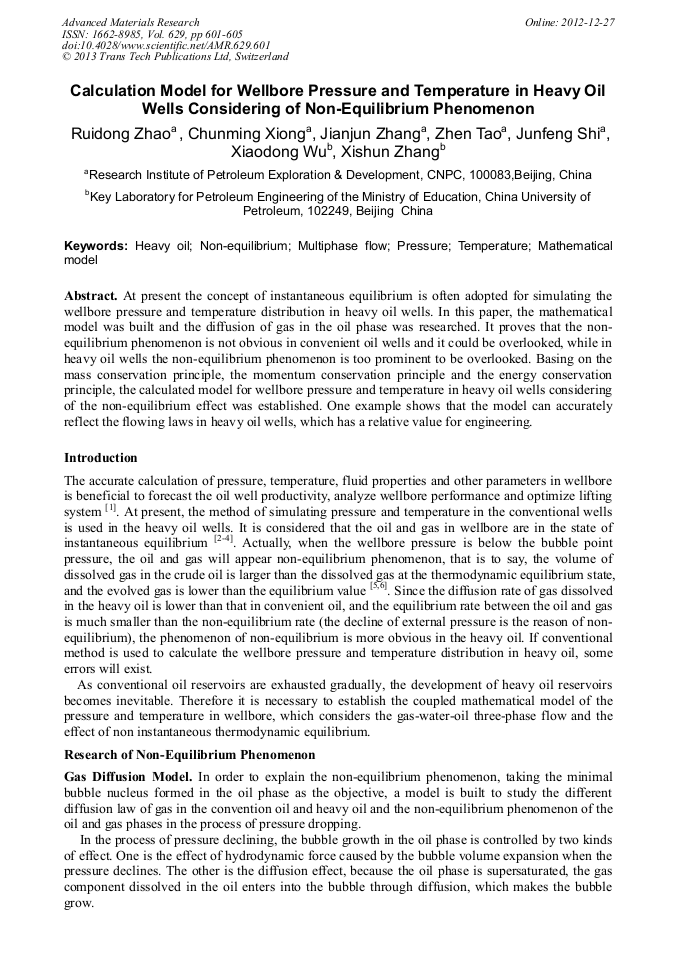

Calculation Model for Wellbore Pressure and Temperature in Heavy Oil Wells Considering of Non-Equilibrium Phenomenon

Abstract:

At present the concept of instantaneous equilibrium is often adopted for simulating the wellbore pressure and temperature distribution in heavy oil wells. In this paper, the mathematical model was built and the diffusion of gas in the oil phase was researched. It proves that the non-equilibrium phenomenon is not obvious in convenient oil wells and it could be overlooked, while in heavy oil wells the non-equilibrium phenomenon is too prominent to be overlooked. Basing on the mass conservation principle, the momentum conservation principle and the energy conservation principle, the calculated model for wellbore pressure and temperature in heavy oil wells considering of the non-equilibrium effect was established. One example shows that the model can accurately reflect the flowing laws in heavy oil wells, which has a relative value for engineering.

• Periodical: Advanced Materials Research (Volume 629)
• Pages: 601-605
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.629.601
• Online since: December 2012
• Authors: Rui Dong Zhao, Chun Ming Xiong, Jian Jun Zhang, Zhen Tao, Jun Feng Shi, Xiao Dong Wu, Xi Shun Zhang
• Keywords: Heavy Oil, Mathematical Models, Multiphase Flow, Non-Equilibrium, Pressure, Temperature

References

[1] Zhang, Q. Fundamental and designing of petroleum engineering. Dongying: China University of Petroleum Press; (2000).

[2] Ren, Y., et al. Theory and Practice of Thermal Exploitation in the Heavy Oil and High Pour Point Oil. Beijing: Petroleum Industry Press; (2001).

[3] Shan, X. J., Zhang, S. C., Wang, W. X., et al. The Factors Influencing The Wellbore Temperature in Heavy Oil Production. Petroleum Exploration and Development, 2004; 31: 136-139.

[4] Rangel, E. R., Schemere, J., and Sandberg C. Electrical heating assisted recovery fro heavy oil. Journal of Petroleum Science and Engineering 2004; 45: 213-231.

DOI: 10.1016/j.petrol.2004.06.005

[5] Sheng, J. J., and Maini, B. B. A Non-equilibrium Model to Calculate Foamy Oil Properties. Journal of Canadian Petroleum Technology, 1999; 38: 38-45.

DOI: 10.2118/99-04-04

[6] Wen, T., He J., Liu, J. Y., et al. Shaft Multiphase Flow Model for Condensate Gas Wells with Consideration of Non-Equilibrium Effect. Natural Gas Industry, 2008; 28(10): 92-94.

[7] Brennen, C. E. Cavitation and Bubble Dynamics. England: Oxford University Press. (1995).

[8] Lu, J. F., Guan, Y. Numerical Solution of Partial Differential Equations. Beijing: Tsinghua University Press. (2004).

[9] Szekely, J. and Fang, S. D. Non Equilibrium Effects in the Growth of Spherical Gas Bubbles due to Solute Diffusion-II. Chem. Eng. Sci., 1973; 28: 2127-2140.

DOI: 10.1016/0009-2509(73)85003-1

[10] Downar, Z. P., Bilicki, Z., Bollel, et al. The non-equilibrium relaxation model for one-dimensional flashing liquid flow. International J. Multiphase Flow, 1996; 22(3): 473-483.

DOI: 10.1016/0301-9322(95)00078-x

[11] Kamp, A. M., and Joseph D. D. A New Modeling Approach for Heavy Oil Flow in Porous Media. SPE69720-MS presented at the SPE International Thermal Operations and Heavy Oil Symposium held in Porlamar, Margarita Island, Venezuela, 12-14 March (2001).

DOI: 10.2118/69720-ms
