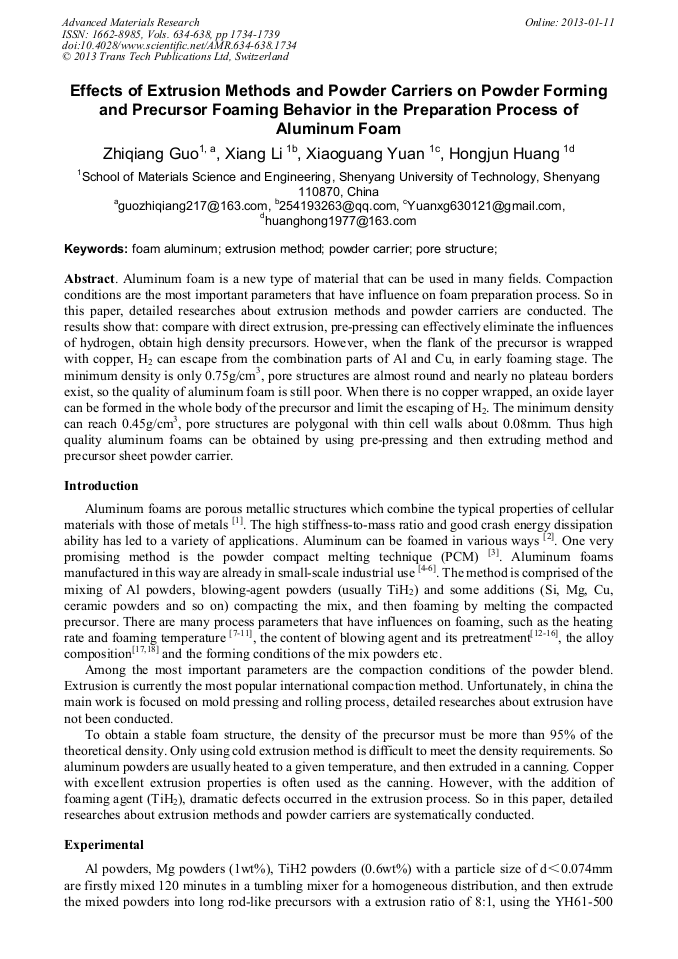

Effects of Extrusion Methods and Powder Carriers on Powder Forming and Precursor Foaming Behavior in the Preparation Process of Aluminum Foam

Abstract:

Aluminum foam is a new type of material that can be used in many fields. Compaction conditions are the most important parameters that have influence on foam preparation process. So in this paper, detailed researches about extrusion methods and powder carriers are conducted. The results show that: compare with direct extrusion, pre-pressing can effectively eliminate the influences of hydrogen, obtain high density precursors. However, when the flank of the precursor is wrapped with copper, H2 can escape from the combination parts of Al and Cu, in early foaming stage. The minimum density is only 0.75g/cm3, pore structures are almost round and nearly no plateau borders exist, so the quality of aluminum foam is still poor. When there is no copper wrapped, an oxide layer can be formed in the whole body of the precursor and limit the escaping of H2. The minimum density can reach 0.45g/cm3, pore structures are polygonal with thin cell walls about 0.08mm. Thus high quality aluminum foams can be obtained by using pre-pressing and then extruding method and precursor sheet powder carrier.

• Periodical: Advanced Materials Research (Volumes 634-638)
• Pages: 1734-1739
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.634-638.1734
• Online since: January 2013
• Authors: Zhi Qiang Guo, Xiang Li, Xiao Guang Yuan, Hong Jun Huang
• Keywords: Extrusion Method, Foam Aluminum, Pore Structure, Powder Carrier

References

[1] Banhart, J.: Manufacture, characterization and application of cellular metals and metal foams. Prog. Mater. Sci. 2001;46:559–632.

DOI: 10.1016/s0079-6425(00)00002-5

[2] J.Banhart, M.F. Ashby, N.A. Fleck. Metal Foams and Porous Metal Structures[A], In:International Conference on Metal Foams and Porous Metal Structures, Bermen, 2003, Verlag MIT, 2006.

[3] Baumga¨rtner F, Duarte I, Banhart J. Industrialisation of P/M foaming process[J]. Adv Eng Mater 2000;2:168–74.

[4] Baumeister J, Banhart J, Weber M. Aluminum foams for transport industry [J]. Materials&Design, 1997, 18(4):217-220.

DOI: 10.1016/s0261-3069(97)00050-2

[5] Schwingel D, Seeliger H W, Vecchionacci C, Alwes D, Dittrich J. Aluminium foam sandwich structures for space applications[J].Acta Astronaut,2007,61:326-330.

DOI: 10.1016/j.actaastro.2007.01.022

[6] Fuganti A, Lorenzi L, Hanssen A G, Langseth M. Aluminium foam for automotive applications[J].Adv Eng Mater,2002,2(4):200-204.

DOI: 10.1002/(sici)1527-2648(200004)2:4<200::aid-adem200>3.0.co;2-2

[7] Zeppelin F V, H irscherM, Stanzick H,et al. Desorption of hydrogen from blowing agents used for foam ing metals [ J].Composites Science and Technology, 2003, 63 (16): 2293-2300.

DOI: 10.1016/s0266-3538(03)00262-8

[8] Louis-Philippe Lefebvre,John Banhart and David C.Dunad. Porous Metal and Metallic Foams:Current Status and Recent Developments. Advanced Engineering Materials[A],2008:775-787.

DOI: 10.1002/adem.200800241

[9] Zhiqiang Guo, Guangchun Yao, Yihan Liu. A study of stability of foam aluminum by powder metallurgy method[J]. Aluminum Alloys for Transportation, Packaging, Aerospace, and Other Applications, 2007, 171-76.

[10] E. Solórzano, F. Garcia-Moreno, N. Babcsán, J. Banhart. Thermographic Monitoring of Aluminium Foaming Process[J]. J Nondestruct Eval (2009) 28: 141–148.

DOI: 10.1007/s10921-009-0056-6

[11] M. Mukherjee, F. Garcia-Moreno, J. Banhart. Collapse of Aluminum Foam in Two Different Atmospheres[J]. Metallurgical and Materials transctions B,2010,41B(6):500-504.

DOI: 10.1007/s11663-010-9357-5

[12] Han F, Zhu Z, Gao J, Song W. Effect of oxidation treatment and surface filming on hydrogen degassing from TiH2[J]. Metall Trans B 1998;29:1315-1319.

DOI: 10.1007/s11663-998-0055-5

[13] Gergely V. Metal route processing for production of metallic foams. Ph.D. thesis, Cambridge, UK: University of Cambridge; 2000.

[14] KennedyA R. The effect of THi2 heat treatment on gas release and foaming in Al-THi2 preforms[J]. Scripta Materialia,2002, 47(11): 763-767.

DOI: 10.1016/s1359-6462(02)00281-6

[15] Lehmhus D, Rausch G. Tailoring titanium hydride decomposition kinetics by annealing in various atmospheres[J]. Adv Eng Mater 2004;6:313-330.

DOI: 10.1002/adem.200300572

[16] Matijasevic-Lux B, Banhart J, Fiechter S,et al. Modification of titanium hydride for improved aluminium foam manufacture[J]. Acta Materialia, 2006, 54: 1887-1900.

DOI: 10.1016/j.actamat.2005.12.012

[17] G.S. Vinod Kumar, M. ChakrabortY, F. GAarci-Moreno, J. Banhart. Foamability of MgAl2O4 (Spinel)-Reinforced Aluminum Alloy Composites [J]. Metallurgical and materials transactions A, 2011(42A):2898-2908.

DOI: 10.1007/s11661-011-0709-9

[18] H.-M. Helwig, F. Garcia-Moreno, J. Banhart. A study of Mg and Cu additions on the foaming behaviour of Al–Si alloys[J]. J Mater Sci, 2011, 46:5227-5236.

DOI: 10.1007/s10853-011-5460-5
