Hot Deformation Behavior of Al-Zn-Mg-Zr Alloy with Trace Amounts of Sc

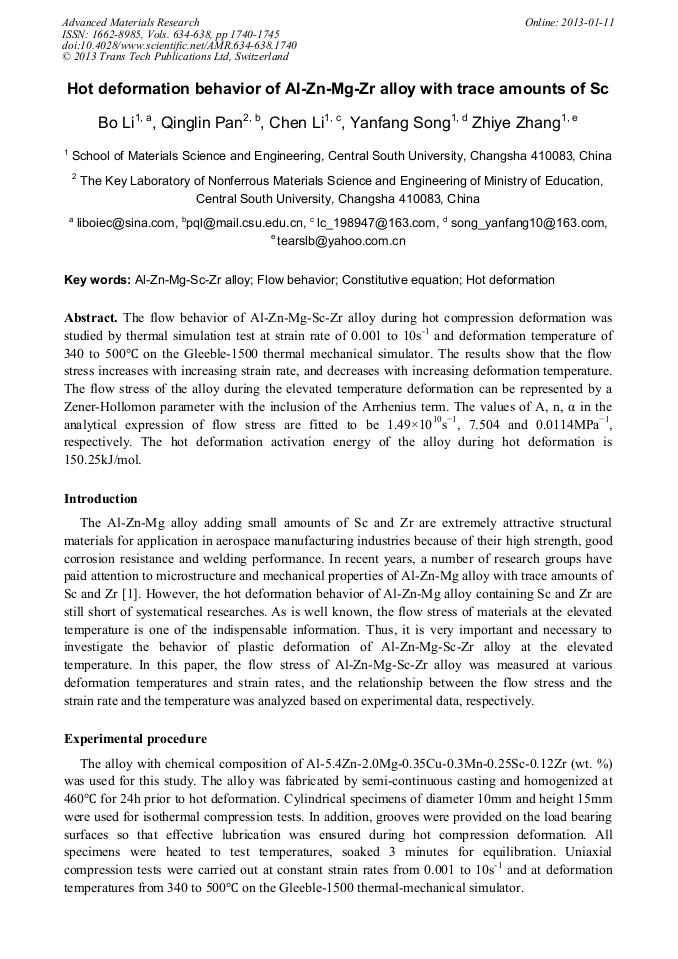

Abstract:

The flow behavior of Al-Zn-Mg-Sc-Zr alloy during hot compression deformation was studied by thermal simulation test at strain rate of 0.001 to 10s-1 and deformation temperature of 340 to 500°C on the Gleeble-1500 thermal mechanical simulator. The results show that the flow stress increases with increasing strain rate, and decreases with increasing deformation temperature. The flow stress of the alloy during the elevated temperature deformation can be represented by a Zener-Hollomon parameter with the inclusion of the Arrhenius term. The values of A, n, α in the analytical expression of flow stress are fitted to be 1.49×10¹⁰s⁻¹, 7.504 and 0.0114MPa⁻¹, respectively. The hot deformation activation energy of the alloy during hot deformation is 150.25kJ/mol.

• Periodical: Advanced Materials Research (Volumes 634-638)
• Pages: 1740-1745
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.634-638.1740
• Online since: January 2013
• Authors: Bo Li, Qing Lin Pan, Chen Li, Yan Fang Song, Zhi Ye Zhang
• Keywords: Al-Zn-Mg-Sc-Zr Alloy, Constitutive Equation, Flow Behavior, Hot Deformation

References

[1] H.Z. Li, Z. Li, M. Song, X.P. Liang, and F.F. Guo: Mater. Des. Vol. 31 (2010), p.171

[2] X. Huang, H. Zhang, Y. Han, W. Wu, and J. Chen: Mater. Sci. Eng. A Vol. 527 (2010), p.485

[3] Y.V.R.K. Prasad, and K.P. Rao: Mater. Sci. Eng. A Vol. 391 (2005), p.141

[4] S.J. Hosseinipour: Mater. Des. Vol. 30 (2009), p.319

[5] Y.C. Lin, Y.C. Xia, X.M. Chen, and M.S. Chen: Comput. Mater. Sci. Vol. 50 (2010), p.22
