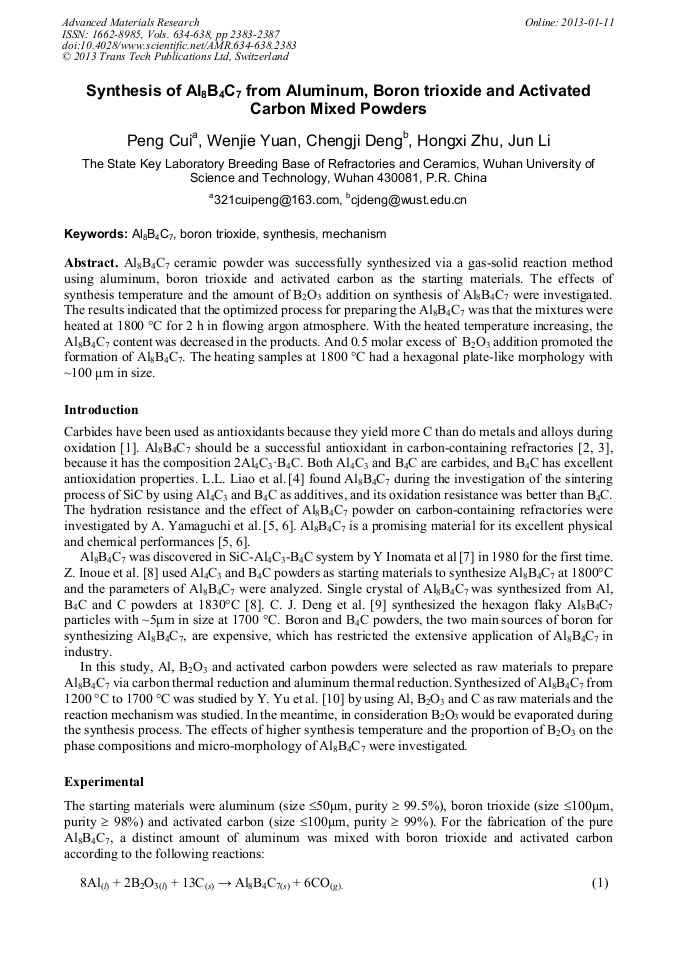

Synthesis of Al₈B₄C₇ from Aluminum, Boron Trioxide and Activated Carbon Mixed Powders

Abstract:

Al₈B₄C₇ ceramic powder was successfully synthesized via a gas-solid reaction method using aluminum, boron trioxide and activated carbon as the starting materials. The effects of synthesis temperature and the amount of B₂O₃ addition on synthesis of Al₈B₄C₇ were investigated. The results indicated that the optimized process for preparing the Al₈B₄C₇ was that the mixtures were heated at 1800 °C for 2 h in flowing argon atmosphere. With the heated temperature increasing, the Al₈B₄C₇ content was decreased in the products. And 0.5 molar excess of B₂O₃ addition promoted the formation of Al₈B₄C₇. The heating samples at 1800 °C had a hexagonal plate-like morphology with ~100 μm in size.

• Periodical: Advanced Materials Research (Volumes 634-638)
• Pages: 2383-2387
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.634-638.2383
• Online since: January 2013
• Authors: Peng Cui, Wen Jie Yuan, Cheng Ji Deng, Hong Xi Zhu, Jun Li
• Keywords: Al₈B₄C₇, Boron Trioxide, Mechanism, Synthesis

References

[1] A. Yamaguchi: Inorg. Mater. Vol. 4 (1997), p.85.

[2] S. W. Zhang and A. Yamaguchi: J. Ceram. Soc. Jpn. Vol. 102 (1994), p.830.

[3] T. Rymon-Lipinski, R. Fichtner and T. Benecke: Steel Res. Vol. 63 (1992), p.493.

[4] L. L. Liao, H. S . Tan and D. L. Jiang: J. Inorg. Mater. Vol. 17 (2002), p.265.

[5] T. M. Wang and A. Yamaguchi: J. Am. Ceram. Soc. Vol. 84 (2001), p.577.

[6] A. Yamaguchi, S. Zhang, J. Yu, and S. Hashimoto: UNITECR' 95 Proc. Vol. (1995), p.341.

[7] Y. Inomata, H. Tanaka and Z. Inoue: Yogyo Kyokaishi. Vol. 88 (1980), p.353.

[8] Z. Inoue and H. Tanaka: J. Mater. Sci. Vol. 15 (1980), p.3036.

[9] C.J. Deng, W. Zhou and H. X. Zhu: J. Xi'an Jiao Tong. Univ. Vol. 45 (2011), p.112 (in Chinese).

[10] Y. Yu, C. J. Deng, H. X. Zhu and C. Bai: Rare. Metal. Mater. Eng. Vol. 37 (2008), p.658 (in Chinese).

[11] J. M. Lihrmann, J. Tirlocq, P. Descamps and F. Cambier: J. Eur. Ceram. Soc. Vol. 19 (1999), p.2781.

[12] S. A. Suvorov, V. A. Musevich and F. R. Iksanov: Refract. Ind. Ceram. Vol. 48 (2007), p.133.

DOI: 10.1007/s11148-007-0044-2

[13] P. K. Panda, L. Mariappan and T. S. Kannan: Ceram. Int. Vol. 26 (2000), p.455.

[14] Y. Sakka and T. S. Suzuki: J. Ceram. Soc. Jpn. Vol. 113 (2005), p.26.

[15] C. H. Jung, M. J. Lee and C. J. Kim: Mater. Lett. Vol. 58 (2004), p.609.
