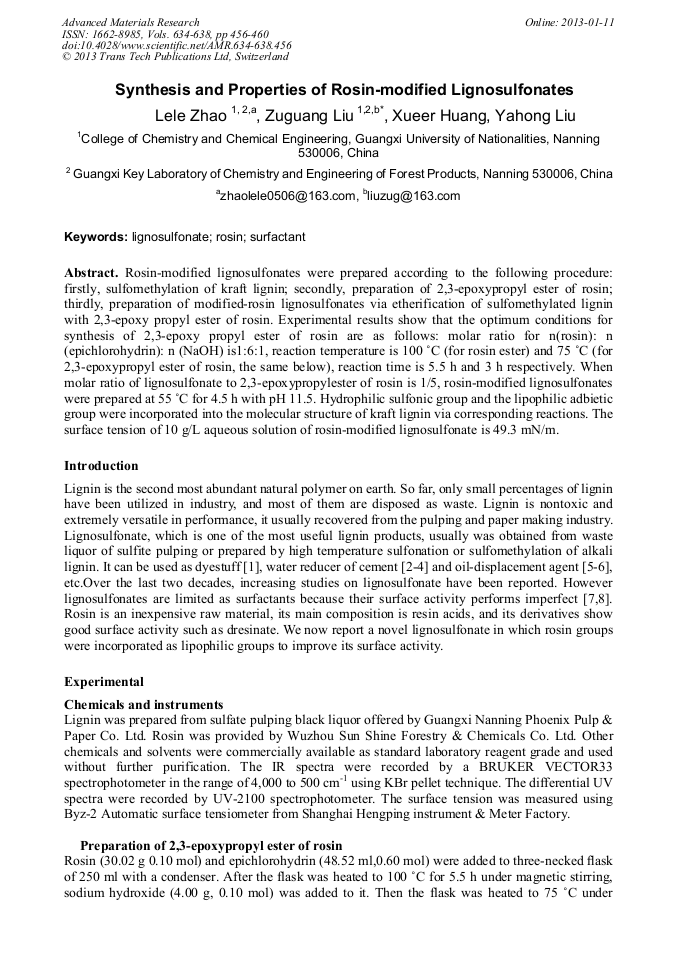

Synthesis and Properties of Rosin-Modified Lignosulfonates

Abstract:

Rosin-modified lignosulfonates were prepared according to the following procedure: firstly, sulfomethylation of kraft lignin; secondly, preparation of 2,3-epoxypropyl ester of rosin; thirdly, preparation of modified-rosin lignosulfonates via etherification of sulfomethylated lignin with 2,3-epoxy propyl ester of rosin. Experimental results show that the optimum conditions for synthesis of 2,3-epoxy propyl ester of rosin are as follows: molar ratio for n(rosin): n (epichlorohydrin): n (NaOH) is1:6:1, reaction temperature is 100 °C(for rosin ester) and 75 °C(for 2,3-epoxypropyl ester of rosin, the same below), reaction time is 5.5 h and 3 h respectively. When molar ratio of lignosulfonate to 2,3-epoxypropylester of rosin is 1/5, rosin-modified lignosulfonates were prepared at 55 °Cfor 4.5 h with pH 11.5. Hydrophilic sulfonic group and the lipophilic adbietic group were incorporated into the molecular structure of kraft lignin via corresponding reactions. The surface tension of 10 g/L aqueous solution of rosin-modified lignosulfonate is 49.3 mN/m.

• Periodical: Advanced Materials Research (Volumes 634-638)
• Pages: 456-460
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.634-638.456
• Online since: January 2013
• Authors: Le Le Zhao, Zu Guang Liu, Xue Er Huang, Ya Hong Liu
• Keywords: Lignosulfonate, Rosin, Surfactant

References

[1] P. Dilling, Amine Modified Sulfonated Lignin for Disperse Dye, Westvaco Corp., Charleston, SC, US Patent 5, 972, 047, (1999).

[2] Xinpin Ouyang, Lixuan Ke, Yongxia Guo, Yuxia Pang: Journal of Dispersion Science and Technology, Vol 30, ( 2009 ), pp.1-6 (in Chinese).

[3] Yuxia Pang, Xueqing Qiu, Colloids Surf. A: Physicochem. Eng. Aspects , (2008), pp.154-159 (in Chinses).

[4] L.H. Grierson, J.C. Knight, R. Maharaj: Cement Concrete Res, vol. 35 (2005), pp.631-636.

[5] C.I. Chiwetelu, V. Hornof, G.H. Neale: Can.J. Chem. Eng. Vol . 72 (1994), pp.534-540.

[6] Zongshi Li, Weihong Qiao. Chemical oil-displacing agent of lignosulfonate modified by long carbon chain containing fatty amide . China Patent 01127944, 2001. 12.

[7] Xiaoping Liu, Haiyan Wang , Transaction of Chian Pulp and Paper, Vol. 19 (2004), pp.68-72.

[8] Huiran Wu, Fangeng Chen and Leilei Qian: Paper Science & Technology, Vol. 30 (2011), pp.27-30.

[9] Yuyi Zhang: Environmental Pollution &Control, Vol. 6 (1990), pp.24-25 (in Chinese).

[10] Wenxue Lang, Xueqing Yue, Xinping OuYang: Journal of Sichuan University, Vol. 1 (2007), pp.130-134 (in Chinese).

[11] DongdongYing: Oiganic.J. Higher Education Press，Vol. 6 (2003), pp.210-211.

[12] Baoguo Wu and Julan Zhao: Journal of Northeast Forestry University, Vol. 2 (1993), pp.59-60 (in Chinese).

[13] Ji Hui, Yude Shu: Chemical Industry Times, Vol. 12 (2000) , pp.7-10 (in Chinese).

[14] Xuefeng Shi, Baoguo Wu and Fengjun Wang: Chemical Engineering, Vol. 2 (2001), pp.20-21 (in Chinese).
