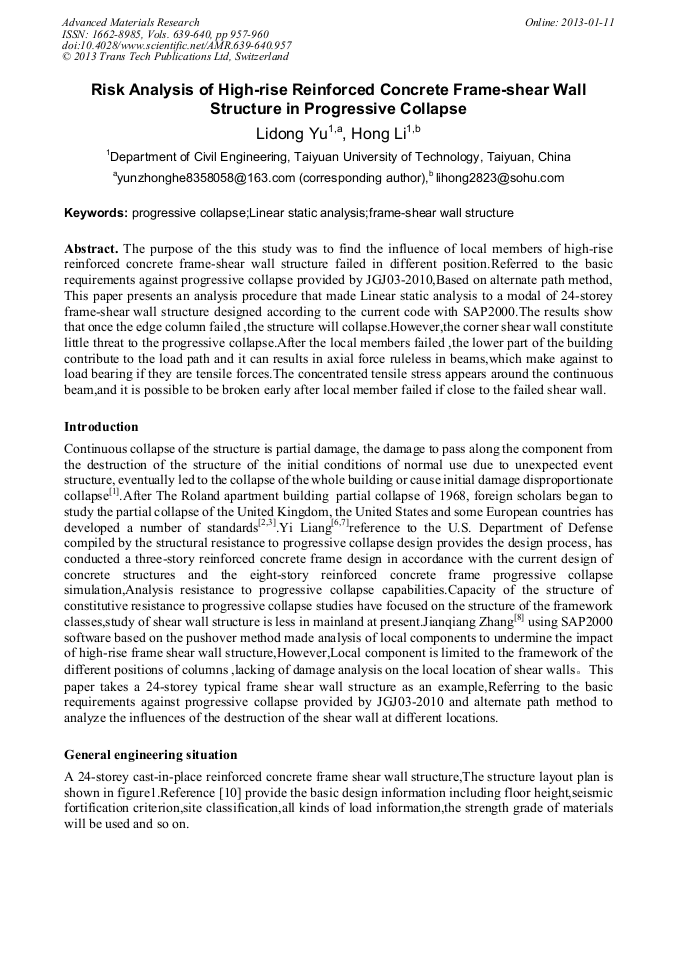

Risk Analysis of High-Rise Reinforced Concrete Frame-Shear Wall Structure in Progressive Collapse

Abstract:

The purpose of the this study was to find the influence of local members of high-rise reinforced concrete frame-shear wall structure failed in different position.Referred to the basic requirements against progressive collapse provided by JGJ03-2010,Based on alternate path method ,This paper presents an analysis procedure that made Linear static analysis to a modal of 24-storey frame-shear wall structure designed according to the current code with SAP2000.The results show that once the edge column failed ,the structure will collapse.However,the corner shear wall constitute little threat to the progressive collapse.After the local members failed ,the lower part of the building contribute to the load path and it can results in axial force ruleless in beams,which make against to load bearing if they are tensile forces.The concentrated tensile stress appears around the continuous beam,and it is possible to be broken early after local member failed if close to the failed shear wall.

• Periodical: Advanced Materials Research (Volumes 639-640)
• Pages: 957-960
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.639-640.957
• Online since: January 2013
• Authors: Li Dong Yu, Hong Li
• Keywords: Frame-Shear Wall Structure, Linear Static Analysis, Progressive Collapse

References

[1] Ellingwood Bruce R.Journal of Performance of Constructed Facilities [J]，2006,20（4）: 315-323.

[2] Progressive collapse analysis and design guidelines for new federal office buildings and major modernization project s[S]. U.S. General Service Administration,2003.

[3] Unified Facilities Criteria:Design of Structures to Resist Progressive Collapse [S]. U.S. Department of Defence，2009.

[4] JGJ03-2010,THE TECHNICAL SPECIFICATION FOR CONCRETE STRUCTURES OF TALL BUILDING [S].China Architecture & Building Press,2011(in Chinese).

[5] GB50010-2010,The Design Code of Concrete Structure [S]. China Architecture & Building Press,2011(in Chinese).

[6] Yi Liang ,Xinzheng Lu,Building Structure [J ] ,2010 ,40(2)(in Chinese).

[7] Lieping Ye ,Xinzheng Lu ,Yi Li .Building Structure [J ] ,2010 ,40(2) (in Chinese).

[8] Jianqiang Zhang,Xiangdong Chen. Shanxi Architecture [J ] ,2008,34（11)(in Chinese) .

[9] Beijing Civil King Software Technology Co.,Ltd.The guidance to use of SAP2000 of Chinese Version[M].China Communications Press，2012:45-52（in Chinese）.

[10] Xueyi Fu.Practice Design of High-rise Building Structures[M].China Architecture & Building Press,2010:254-314（in Chinese）.

[11] Beijing Civil King Software Technology Co.,Ltd.Pushover analysis in the seismic design of of construction projects[M].China Architecture & Building Press,2010:39-40（in Chinese）.
