Friction and Wear Behaviors of CAPVD TiAlN Coating

Ai Hua Liu; Ze Shen Liu; Peng Zhang

doi:10.4028/www.scientific.net/AMR.645.101

Paper Titles

Synthesis of PMMA by Single-Electron Transfer Radical Polymerization Using Benzyl Chloride as Initiator
p.85

WG/EP to Performance of Waste Gypsum Foamed Concrete
p.89

Microstructures and Precipitates in High Purified Fe- 17 wt% Cr Alloy Steels
p.93

Research on Method of Ecomaterials Life Cycle Assessment
p.97

Friction and Wear Behaviors of CAPVD TiAlN Coating
p.101

The Effect of Oxygen in ∑3(114) CulnSe₂ Grain Boundary
p.105

Structural-Acoustic Optimization of Laminated Composite Structures Based on Response Surfaces Method
p.109

Microstructure and Electrical Properties of MnO₂-Doped ZnO-Pr₆O₁₁-Based Varistor Ceramics
p.116

Research on Technology of Wastewater Treatment from Scheelite Flotation
p.121

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 645Friction and Wear Behaviors of CAPVD TiAlN Coating

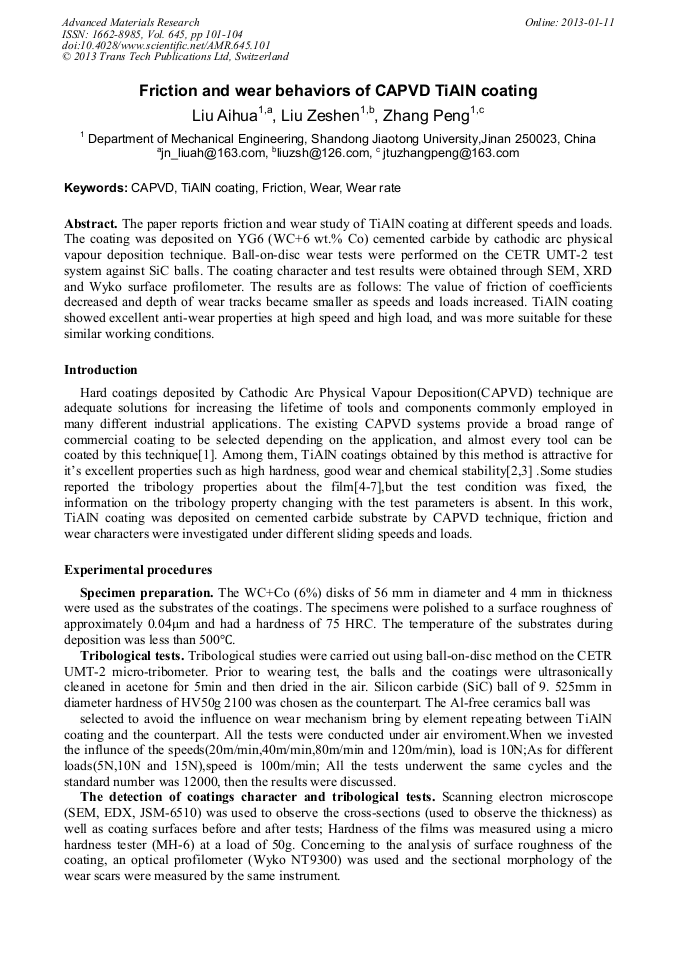

Friction and Wear Behaviors of CAPVD TiAlN Coating

Abstract:

The paper reports friction and wear study of TiAlN coating at different speeds and loads. The coating was deposited on YG6 (WC+6 wt.% Co) cemented carbide by cathodic arc physical vapour deposition technique. Ball-on-disc wear tests were performed on the CETR UMT-2 test system against SiC balls. The coating character and test results were obtained through SEM, XRD and Wyko surface profilometer. The results are as follows: The value of friction of coefficients decreased and depth of wear tracks became smaller as speeds and loads increased. TiAlN coating showed excellent anti-wear properties at high speed and high load, and was more suitable for these similar working conditions.
