Micro and Macro Scratch and Microhardness Study of Biocompatible DLC and TiO₂ Films Prepared by Laser

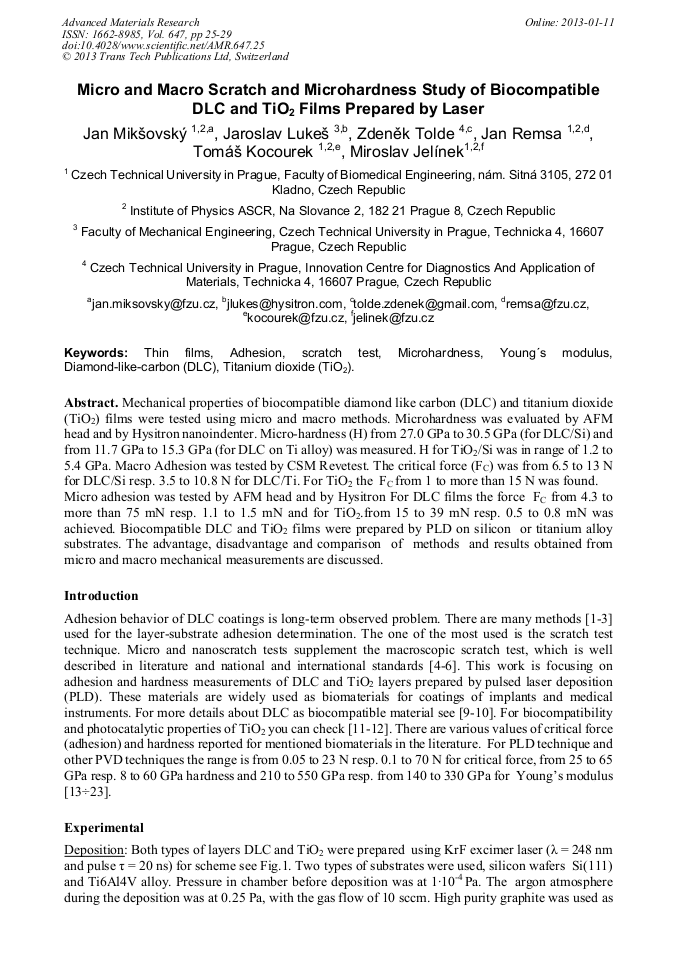

Article Preview

Abstract:

Mechanical properties of biocompatible diamond like carbon (DLC) and titanium dioxide (TiO2) films were tested using micro and macro methods. Microhardness was evaluated by AFM head and by Hysitron nanoindenter. Micro-hardness (H) from 27.0 GPa to 30.5 GPa (for DLC/Si) and from 11.7 GPa to 15.3 GPa (for DLC on Ti alloy) was measured. H for TiO2/Si was in range of 1.2 to 5.4 GPa. Macro Adhesion was tested by CSM Revetest. The critical force (FC) was from 6.5 to 13 N for DLC/Si resp. 3.5 to 10.8 N for DLC/Ti. For TiO2 the FC from 1 to more than 15 N was found. Micro adhesion was tested by AFM head and by Hysitron For DLC films the force FC from 4.3 to more than 75 mN resp. 1.1 to 1.5 mN and for TiO2.from 15 to 39 mN resp. 0.5 to 0.8 mN was achieved. Biocompatible DLC and TiO2 films were prepared by PLD on silicon or titanium alloy substrates. The advantage, disadvantage and comparison of methods and results obtained from micro and macro mechanical measurements are discussed.

You might also be interested in these eBooks

Biomaterial and Bioengineering

Info:

Periodical:

Advanced Materials Research (Volume 647)

Pages:

25-29

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.647.25

Citation:

Cite this paper

Online since:

January 2013

Authors:

Jan Mikšovsky, Jaroslav Lukeš, Zdeněk Tolde, Jan Remsa, Tomáš Kocourek, Miroslav Jelínek

Keywords:

Adhesion, Diamond-Like Carbon (DLC), Microhardness, Scratch Test, Thin Film, Titanium Dioxide (TiO₂), Young's Modulus

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] P. R. Chalker, S. J. Bull and D. S. Rickerby, Materials Science and Engineering, A 140, ( 1991), 583-592.

[2] S. J. Bull and L. J. Balk, J. Phys. D: Appl. Phys. 44, (2011).

[3] S.J. Bull, E.G. Berasetegui, Tribology International 39, (2006), 99–114.

[4] S.T. Gonczy, Int. J. Appl. Ceram. Technol., 2, 422–428 (2005).

[5] ASTM Standard C1624 (C1624-05): Ceramic coatings - Determination of adhesion and other mechanical failure modes.

[6] International standards ISO 20502: Fine ceramics - Determination of adhesion of ceramic coatings by scratch testing.

[7] European Standard EN1071-3: Advanced technical ceramics. Determination of adhesion and other mechanical failure modes by scratch test.

DOI: 10.3403/30078580

[8] Von Stebut J., Rezakhanlou R., Anoun K., Michel H., Gantois M.: Thin Solid Films, 181, (1989).

DOI: 10.1016/0040-6090(89)90524-5

[9] M. Jelínek, T. Kocourek, J. Remsa, J. Mikšovský, J. Zemek, K. Smetana, B. Dvořánková and T. Luxbacher, Appl. Phys. A: Mater. , Volume 101, Number 4, 579-583, (2010).

DOI: 10.1007/s00339-010-5912-9

[10] M. Jelínek, K. Smetana, T. Kocourek, B. Dvořánková, J. Zemek, J. Remsa and T. Luxbacher, Mater. Sci. Eng. B, 169, 89–93, (2010).

DOI: 10.1016/j.mseb.2010.01.010

[11] J. Remsa, M. Jelínek, T. Kocourek, J. Mikšovský, et al.:, Journal of Optoelectronics and Advaced Materials, vol. 12, pp.754-757, (2010).

[12] J. Remsa, J. Mikšovský, M. Jelínek, Applied Surface Science, Vol. 258, 23, 9333–9336, (2012).

DOI: 10.1016/j.apsusc.2012.02.042

[13] Q. Wei, A.K. Sharma, J. Sankar, J. Narayan, Composites: Part B, 30, 675–684, (1999).

[14] M. Bonelli, A. P. Fioravanti, A. Miotello and P. M. Ossi, Europhys. Lett., 50 (4), p.501–506, (2000).

DOI: 10.1209/epl/i2000-00297-5

[15] A.A. Voevodin, J.S. Zabinski, Diamond and Related Materials, 7, 463- 467, ( 1998).

[16] X. Yu, Ch. Wang, Y. Liu, D. Yu, Diamond & Related Materials, 15, 1223 – 1227, (2006).

[17] Chi-Lung Chang, Da-Yung Wang, Diamond and Related Materials, 10, 1528-1534, (2001).

[18] D. Sheeja, B.K. Tay, K.W. Leong, C.H. Lee, Diamond and Related Materials, 11, 1643–1647, (2002).

[19] Y. Funada, K. Awazu, H. Yasui, T. Sugita, Surface and Coatings Technology, 128-129, 308-312, (2000).

DOI: 10.1016/s0257-8972(00)00591-0

[20] T. Horiuchi, K. Yoshida, M. Kano, M. Kumagai, T. Suzuki, Plasma Process. Polym., 6, 410–416, (2009).

[21] H. Zaidi, A. Djamai, K.J. Chin, T. Mathia, Tribology International, 39, 124–128, (2006).

DOI: 10.1016/j.triboint.2005.04.016

[22] M. Yatsuzuka, Y. Oka, M. Nishijima, K. Hiraga, Vacuum, 83, 190–197, (2009).

[23] J.P. Quinn, P. Lemoine, P.D. Maguire, J. McLaughlin, Diamond and related materials, 13 (4-8), pp.1385-1390, (2004).

[24] W. C. Oliver, G. M. Pharr, Journal of Material Research, 7, 1564-1583, (1992).
