Numerical Simulation for Microstructure Evolution in In718 Alloy During Cylindrical Cup Backward Extrusion

X. Hu; R. B. Mei; F. Zhu; Y. Fan; Y. B. Liang; X. B. Wang; D. G. Wang; Z. R. Jing

doi:10.4028/www.scientific.net/AMR.650.92

Paper Titles

The Nature of Rest Silanol Groups on the Surfaces of Silica Based Solid Phase Extraction Materials
p.66

Simulation of the Hydrogen Permeation Behavior of X80 Pipeline Steels in H₂S Saturated Environment by Cathodic-Charging Method
p.72

The Effects of Processing Parameter on Melt-Blown Filtration Materials
p.78

Recent Progresses on Some Coke Resistant Ni-Based Catalysts for Carbon Dioxide Reforming of Methane
p.85

Numerical Simulation for Microstructure Evolution in In718 Alloy During Cylindrical Cup Backward Extrusion
p.92

Electrochemical Studies on Photoactively Conducting Poly(4-aminoazobenzene) Coating: Electrochromic Property
p.98

Amino-Functionalized Multiwalled Carbon Nanotubes for the Preparation of Electroactive Polyurea Composites with Improved Electrical Properties
p.103

Sol-Gel Derived Mesoporous Silica Nanoparticles under Base Catalysis for Uses as Anti-Reflective Coating Layers
p.108

Effects of Carbonization Temperature and Nanoporous Silica Templating on the Synthesis of Porous Carbon from Commercial Sugar
p.113

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 650Numerical Simulation for Microstructure Evolution...

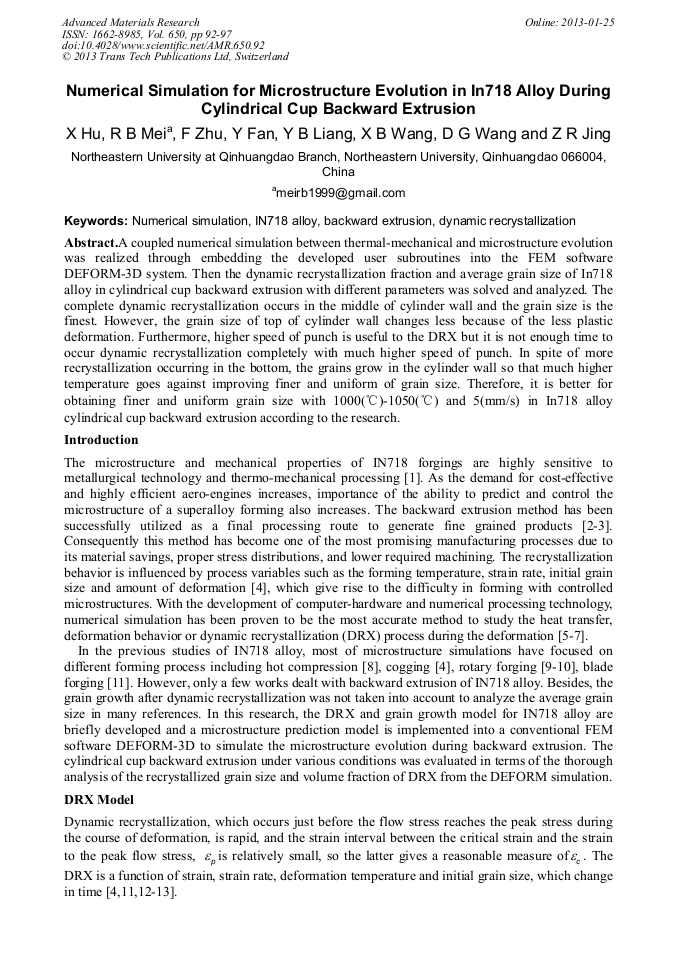

Numerical Simulation for Microstructure Evolution in In718 Alloy During Cylindrical Cup Backward Extrusion

Abstract:

A coupled numerical simulation between thermal-mechanical and microstructure evolution was realized through embedding the developed user subroutines into the FEM software DEFORM-3D system. Then the dynamic recrystallization fraction and average grain size of In718 alloy in cylindrical cup backward extrusion with different parameters was solved and analyzed. The complete dynamic recrystallization occurs in the middle of cylinder wall and the grain size is the finest. However, the grain size of top of cylinder wall changes less because of the less plastic deformation. Furthermore, higher speed of punch is useful to the DRX but it is not enough time to occur dynamic recrystallization completely with much higher speed of punch. In spite of more recrystallization occurring in the bottom, the grains grow in the cylinder wall so that much higher temperature goes against improving finer and uniform of grain size. Therefore, it is better for obtaining finer and uniform grain size with 1000(°C)-1050(°C) and 5(mm/s) in In718 alloy cylindrical cup backward extrusion according to the research.

You might also be interested in these eBooks

Advances in Materials Science and Engineering

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 650)

Pages:

92-97

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.650.92

Citation:

Cite this paper

Online since:

January 2013

Authors:

X. Hu, R. B. Mei, F. Zhu, Y. Fan, Y. B. Liang, X. B. Wang, D. G. Wang, Z. R. Jing

Keywords:

Backward Extrusion, Dynamic Recrystallization (DRX), IN718 Alloy, Numerical Simulation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] J.M. Zhang, Z.Y. Gao, J.Y. Zhuang: J. Mater. Process. Technol Vol. 88(1999), p.244.

Google Scholar

[2] Y.J. Chen, Q.D. Wang, J.G. Peng and F.X. Li: J. Mater. Process. Technol Vol. 182(2006), p.281.

Google Scholar

[3] M.R. Rokni, A.Z. Hanzaki and H.R. Abedi: Mater. Sci. Eng. A Vol. 532(2012), p.593.

Google Scholar

[4] J.T. Yeom, C.S. Lee and J.H. Kim: Mater. Sci. Eng. A Vol. 449(2007), p.722.

Google Scholar

[5] W.G. Jiang, G.C. Wang, S.Q. Lu and J.W. Li: J. Mater. Process. Technol Vol 182(2007), p.274.

Google Scholar

[6] Y.C. Lin, M.S. Chen and J. Zhong: Mater. Design Vol. 30(2009), p.908.

Google Scholar

[7] H.L. Ding, Kazuki Hirai and Tomoyuki Homma: Comput. Mater. Sci. Vol. 47(2010), p.919.

Google Scholar

[8] L.X. Zhou and T.N. Baker: Mater. Sci. Eng. A Vol. 196(1995), p.89.

Google Scholar

[9] Z.Q. Yu, Q. Ma and Z.Q. Lin: J. Shanghai Jiaotong Univ. (Sci. ) Vol. 13(2008), p.721.

Google Scholar

[10] Q. Ma, Z.Q. Lin and Z.Q. Yu: Int. J. Adv. Manuf. Technol Vol. 40 (2009), p.253.

Google Scholar

[11] Y.S. Na, J.T. Yeom and N.K. Park: J. Mater. Process. Technol Vol. 141(2003), p.337.

Google Scholar

[12] R. Kopp, K. Karnhausen and M.M. De Souza: J. Metal. Vol. 20 (1991), p.351.

Google Scholar

[13] G.X. Qi, R.B. Mei and N. Cao: Appl. Mech. Mater Vol. 217-219 (2012), p.1671.

Google Scholar

[14] Y.S. Jang, D.C. Ko and and B.M. Kim: J. Mater. Process. Technol Vol. 101 (2000), p.85.

Google Scholar

[15] R.B. Mei, G.X. Qi and L Bao: Hot Working Technol Vol. 4 (2005), p.50.

Google Scholar

[16] J. Ye: Nickel-base alloy of American (Science Press, China1978).

Google Scholar
