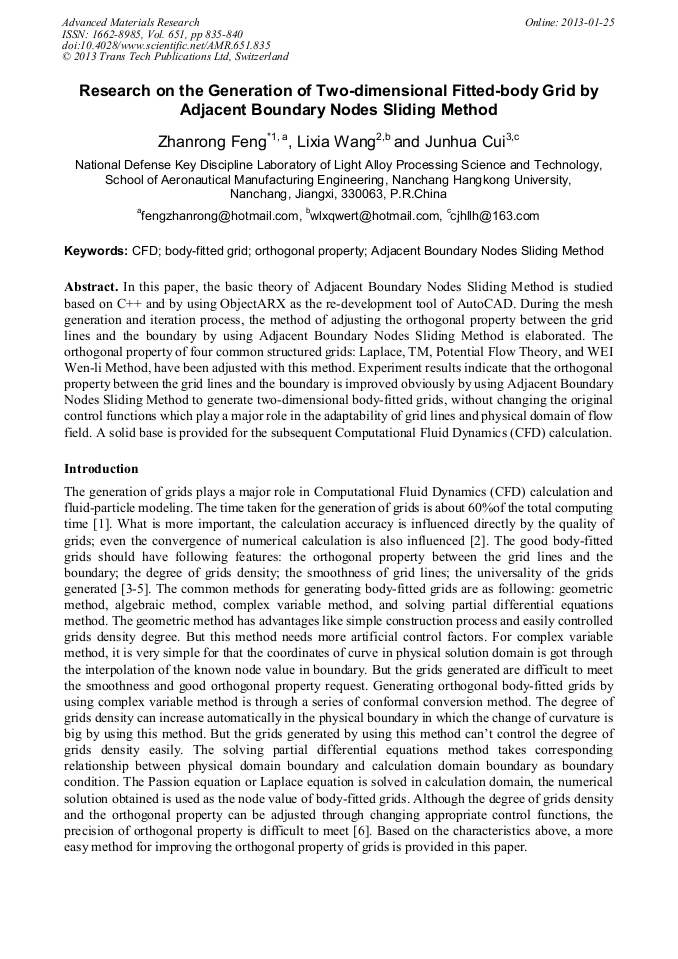

Research on the Generation of Two-Dimensional Fitted-Body Grid by Adjacent Boundary Nodes Sliding Method

Abstract:

. In this paper, the basic theory of Adjacent Boundary Nodes Sliding Method is studied based on C++ and by using ObjectARX as the re-development tool of AutoCAD. During the mesh generation and iteration process, the method of adjusting the orthogonal property between the grid lines and the boundary by using Adjacent Boundary Nodes Sliding Method is elaborated. The orthogonal property of four common structured grids: Laplace, TM, Potential Flow Theory, and WEI Wen-li Method, have been adjusted with this method. Experiment results indicate that the orthogonal property between the grid lines and the boundary is improved obviously by using Adjacent Boundary Nodes Sliding Method to generate two-dimensional body-fitted grids, without changing the original control functions which play a major role in the adaptability of grid lines and physical domain of flow field. A solid base is provided for the subsequent Computational Fluid Dynamics (CFD) calculation.

• Periodical: Advanced Materials Research (Volume 651)
• Pages: 835-840
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.651.835
• Online since: January 2013
• Authors: Zhan Rong Feng, Li Xia Wang, Jun Hua Cui
• Keywords: Adjacent Boundary Nodes Sliding Method, Body-Fitted Grid, Computational Fluid Dynamics (CFD), Orthogonal Property

References

[1] LI Chun, CHENG Xin-guang. Study on non-linear factors in grid generation equations(PDE)[J]. JOURNAL OF UNIVERSITY OF SHANGHAI FOR SCIENCE AND TECHNOLOGY, 1998, 20(4): 305-309.

[2] CHEN Hai-sheng, TAN Chun-qing. Review of Investigation into Internal Flow of Turbomachinery[J]. Chinese Journal of Mechanical Engineering, 2007, 43(2): 1-12.

[3] Thompson J F. Boundary-fitted coordinate system for numerical solution of partial differential equation[J]. J Computer Phys, 1982, 47: 1-108.

[4] LIU Yu-ling, WEI Wen-li, SHEN Yong-ming et al. Selection of adjusting factors in the generation of curvilinear grid[J]. Chinese Journal of Computational Mechanics, 2002, 19(2): 195-197.

[5] Thomas P D, Middlecoeff J F. Direct control of the grid point distribution in meshes generated by elliptic equation[J]. AIAAJ, 1980, 18: 652-656.

DOI: 10.2514/3.50801

[6] SU Bin, WANG Da-hai. The method of building two-Dimensional airfoil grid based on poisson equation[J]. Journal of Civil Aviation Flight University of China, 2002, 13(4): 31-33.

[7] WANG Jun, ZHANG Chao, NI Jin. Methods of generating two-dimensional body-fitted grids[J]. Journal of Hefei University of Technology(Natural Science), 2006, 29(12): 1549-1551, 1596.

[8] YU Yue-min, SHEN Yong-ming, WU Xiu-guang et al. A method to generate body-fitted grids orthogonally and the numerical simulation of two-D flow fields[J]. Chinese Journal of Computational Mechanics, 2008, 25(1): 90-93.

[9] KE Yu, SHU Xuan-wu, The development and debug method based on ObjectARX[C]/ Proceedings of the 11th symposium on engineering construction of computer technique application. Beijing: China Building Material Industry Publishing House, 2002. 254-258.
