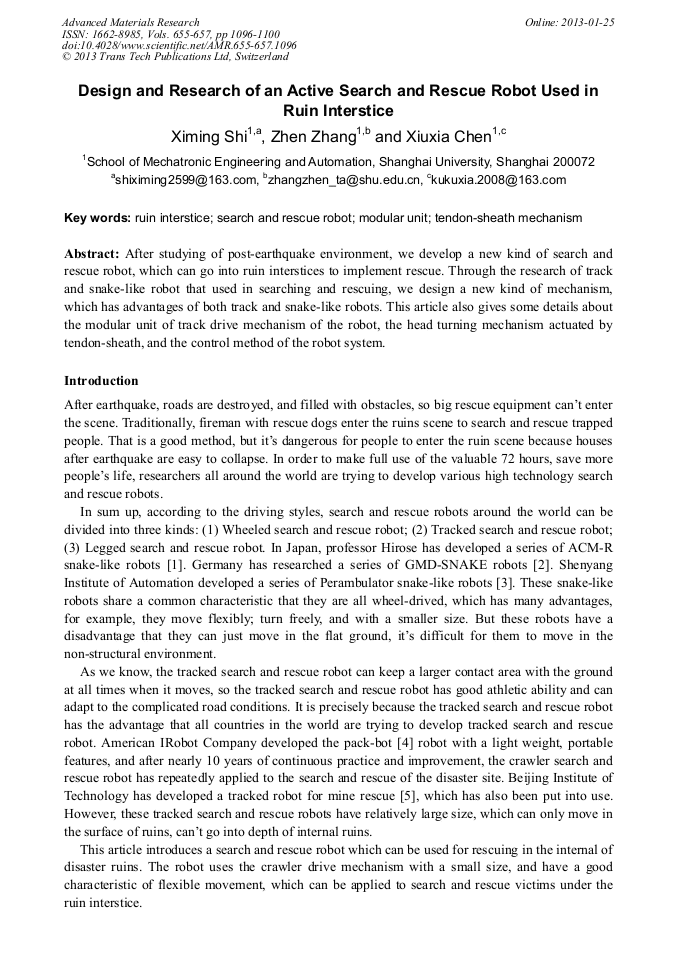

Design and Research of an Active Search and Rescue Robot Used in Ruin Interstice

Abstract:

After studying of post-earthquake environment, we develop a new kind of search and rescue robot, which can go into ruin interstices to implement rescue. Through the research of track and snake-like robot that used in searching and rescuing, we design a new kind of mechanism, which has advantages of both track and snake-like robots. This article also gives some details about the modular unit of track drive mechanism of the robot, the head turning mechanism actuated by tendon-sheath, and the control method of the robot system.

• Periodical: Advanced Materials Research (Volumes 655-657)
• Pages: 1096-1100
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.655-657.1096
• Online since: January 2013
• Authors: Xi Ming Shi, Zhen Zhang, Xiu Xia Chen
• Keywords: Modular Unit, Ruin Interstice, Search and Rescue Robot, Tendon-Sheath Mechanism

References

[1] Taro Ohashi, Hiroya Yamada, Shigeo Hirose. Loop Forming Snake-like Robot ACM-R7 and Its Serpenoid Oval Control. The 2010 IEEE/RSJ International Conference on Intelligent Robots and Systems. October, 18-22(2010), page(s): 413-418.

DOI: 10.1109/iros.2010.5651467

[2] Bernhard Klaassen, Karl L. Paap. GMD-SNAKE2: A Snake-Like Robot Driven by Wheels and a Method for Motion Control, IEEE International Conference on Robotics & Automation Detroit (1999), page(s): 3014-3019.

DOI: 10.1109/robot.1999.774055

[3] Changlong Ye, Shugen Ma2, Bin Li, Hongjun Liu, Hequan Wang. Development of a 3D Snake-like Robot: Perambulator-II. Proceedings of the 2007 IEEE International Conference on Mechatronics and Automation. August 5 – 8(2007), page(s): 117-122.

DOI: 10.1109/icma.2007.4303526

[4] Carl Lundberg, Henrik I. Christensen. Evaluation of Mapping with a Tele-operated Robot with Video Feedback, The 15th IEEE International Symposium on Robot and Human Interactive Communication, UK, September 6-8(2006), page(s): 164-170.

DOI: 10.1109/roman.2006.314412

[5] Zhu Jianguo; Gao Junyao; Li Kejie; Lin Wei; Bi Shengjun. Embedded Control System Design for Coal Mine Detect and Rescue Robot, Computer Science and Information Technology (ICCSIT), the 3rd IEEE International Conference (2010), page(s): 64-68.

DOI: 10.1109/iccsit.2010.5563599

[6] Lv Tiansheng, Wang Xiangyu. Shanghai Jiaotong University, (1998), 32(1): 131-135. (In Chinese).

[7] CHEN Lin, XI Ruru, WANG Xingsong. Journal of Mechanical & Electrical Engineering, (2011), 28（3）: 260-264(In Chinese).

[8] G. Palli and C. Melchiorri, Model and Control of Tendon-Sheath Transmission Systems, Robotics and Automation. ICRA 2006. Proceedings 2006 IEEE International Conference on, 15-19 May (2006), page（s）: 988 – 993.

DOI: 10.1109/robot.2006.1641838
